LMP-2602G-SFP | 26-Port Industrial PoE+ Gigabit Managed Ethernet Switch | w/24*10/100/1000Tx RJ45 (30W/Port) and 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots) | Antaira

26-Port Industrial PoE+ Gigabit Managed Ethernet Switch, w/24*10/100/1000Tx RJ45 (30W/Port) and 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots)

Antaira | LMP-2602G-SFP

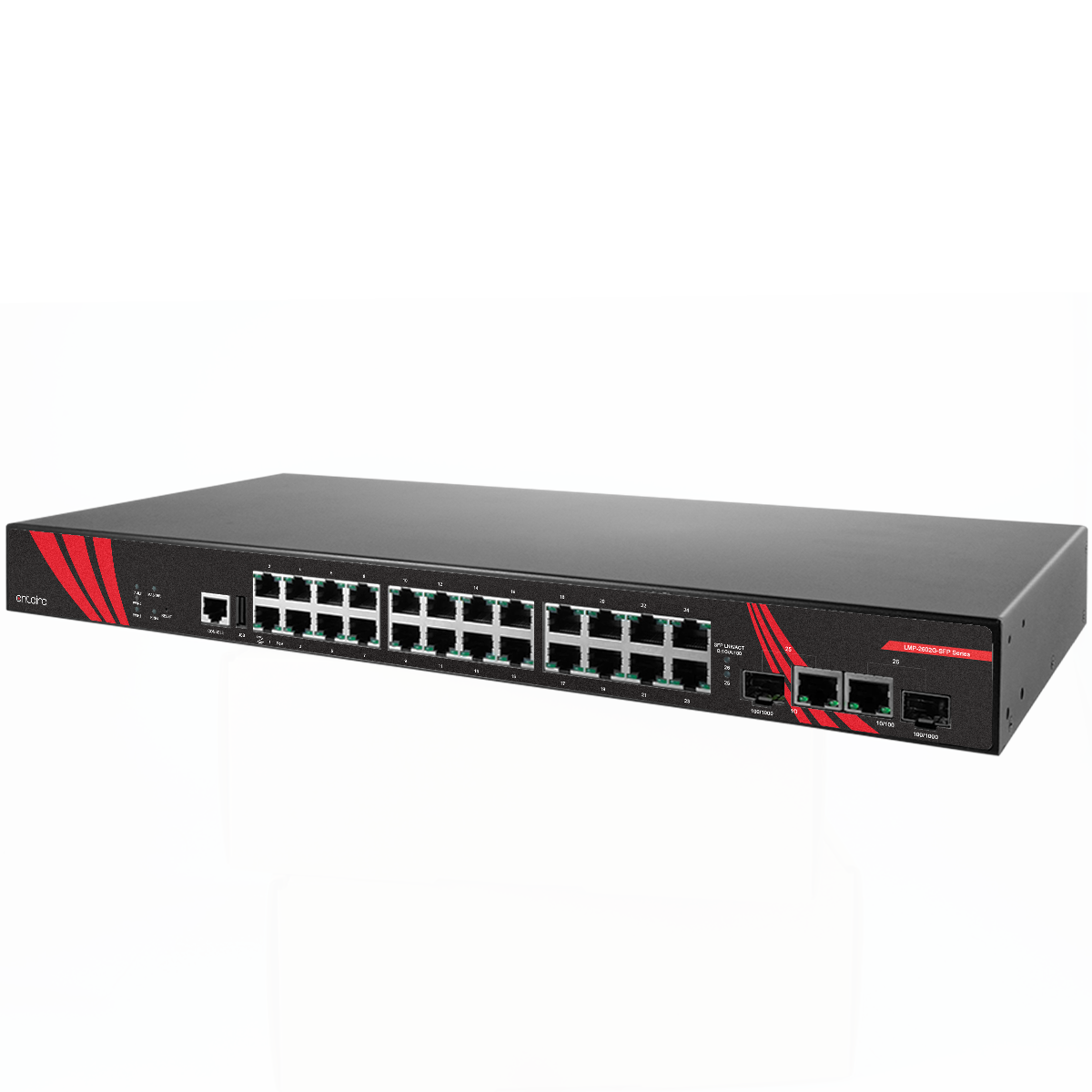

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMP-2602G-SFP

Documents and manuals

Overview

Details for LMP-2602G-SFP

26-Port Industrial PoE+ Gigabit Managed Ethernet Switch | w/24*10/100/1000Tx RJ45 (30W/Port) and 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots)

Antaira Technologies’ LMP-2602G-SFP series is a 26-port industrial gigabit PoE+ managed Ethernet switch features 24*10/100/1000Tx Ethernet ports with IEEE 802.3at high power PoE (30W/Port) and also provides 2*gigabit combo ports with 2*10/100/1000Tx RJ45 and 2*100/1000Fx SFP slots for fiber or twisted pair connections. This makes the product ideal for applications that demand high density of PoE+ port connectivity, wide bandwidth, and long-distance communication.LMP-2602G-SFP series is a fully manageable Layer 2 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.The LMP-2602G-SFP series is designed with IP40 rated 1U 19” rackmount and provides high EFT and ESD protection to prevent any unregulated voltage. Supporting the standard operating temperature model -10° to 65˚C also makes it the best solution for any harsh and extreme ambient weather environment applications, such as, power/utility, transportation, water wastewater treatment plant, oil/gas, and security surveillance system industries.

Features

  • 24-port 10/100/1000Tx Ethernet with IEEE 802.3at Compliant PoE+
  • 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots)
  • System Power Input: 48~55VDC
  • Built-in Relay Output Warning for Power Failure
  • IP40 Rugged Metal Case Design
  • Rack Mounting
  • Standard Operating Temperature Range: -10°C to 65°C
  • 5-Year Warranty

Included

  • LMP-2602G-SFP
  • Quick Installation Guide
  • RJ45 dust cover set
  • RJ45 to DB9 serial Console cable
  • Set of rack-mounting brackets and screws

Specifications

Ambient Relative Humidity
5% to 95%, (non-condensing)
Certifications
FCC, CE, UL 61010-1, 2-201
Dimensions
440 x 200 x 44 mm
EMI
FCC Part 15 Subpart B Class A, CE;EN55032/EN61000-6-4 Class A
EMS
EN55024/EN61000-6-2 Class A;IEC61000-4-2 (ESD);IEC61000-4-3 (RS);IEC61000-4-4 (EFT);IEC61000-4-5 (Surge);IEC61000-4-6 (CS);IEC61000-4-8 (Magnetic Field)
Ethernet Port
26*10/100/1000BaseT(X) with 24*PoE-PSE (30W/Port) Auto-Negotiation, Full/Half Duplex, Auto-MDI/MDI-X
Flow Control
IEEE 802.3x flow control, back pressure flow control
Free Fall
IEC60068-2-32
Gigabit Combo Port
2*RJ45 Ports w/10/100/1000Tx Ethernet and 2*100/1000 SFP Slots
Green
RoHS Compliant
Housing
Metal, IP40 Protection
Input Voltage
48~55VDC (52~55VDC for IEEE802.3at PoE/PSE), Redundant Input
Jumbo Frame
9.6Kbytes
MAC Table Size
8K
Max PoE Power Budget
720 Watts
Mounting
DIN-Rail, Wall-mount (Optional)
Network Cable
10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable; EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable; EIA/TIA-568 100-ohm (100m);1000Base-TX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
Operating Temperature
STD: -10°C to 65°C
Overload Current Protection
Present (Slow-Blow Fuse)
Packet Buffer
4Mbits
PoE Pin Out
V+, V+, V-, V- for pins 1, 2, 3, 6;Endspan, MDI/MDIX Alternative A
Power Connection
8-Pin Terminal Block
Power Consumption
Max 24W full loading
Processing Type
Store and Forward
Protocols
CSMA/CD, IGMP v1/v2, SNMP v1/v2c/v3, TFTP, SNTP, RARP, RMON, Syslog
Relay Contact
24VDC, 1A resistive
Reverse Polarity Protection
Present
Shock
IEC60068-2-27
Standards
IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3ab 1000Base-T;IEEE 802.3z 1000Base-X Gigabit Fiber;IEEE 802.3af/at Power over Ethernet;IEEE 802.1d STP (Spanning Tree Protocol);IEEE 802.1w RSTP (Rapid Spanning Tree Protocol);IEEE 802.1s MSTP (Multiple Spanning Tree Protocol);ITU-T G.8032 / Y.1344 ERPS (Ethernet Ring Protection Switch);IEEE 802.1Q Virtual Local Area Network (VLAN);IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization;IEEE 802.1X Network Authentication;IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Storage Temperature
-40°C to 85°C
Switching Architecture
Back-Plane (Switching Fabric): 52.0Gbps
Transfer Rate
14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Vibration
IEC60068-2-6
Warranty
5 Years
Wavelength
Depends on SFP modules
Weight
Unit: 6.17 lbs;Shipping: 7.94 lbs
