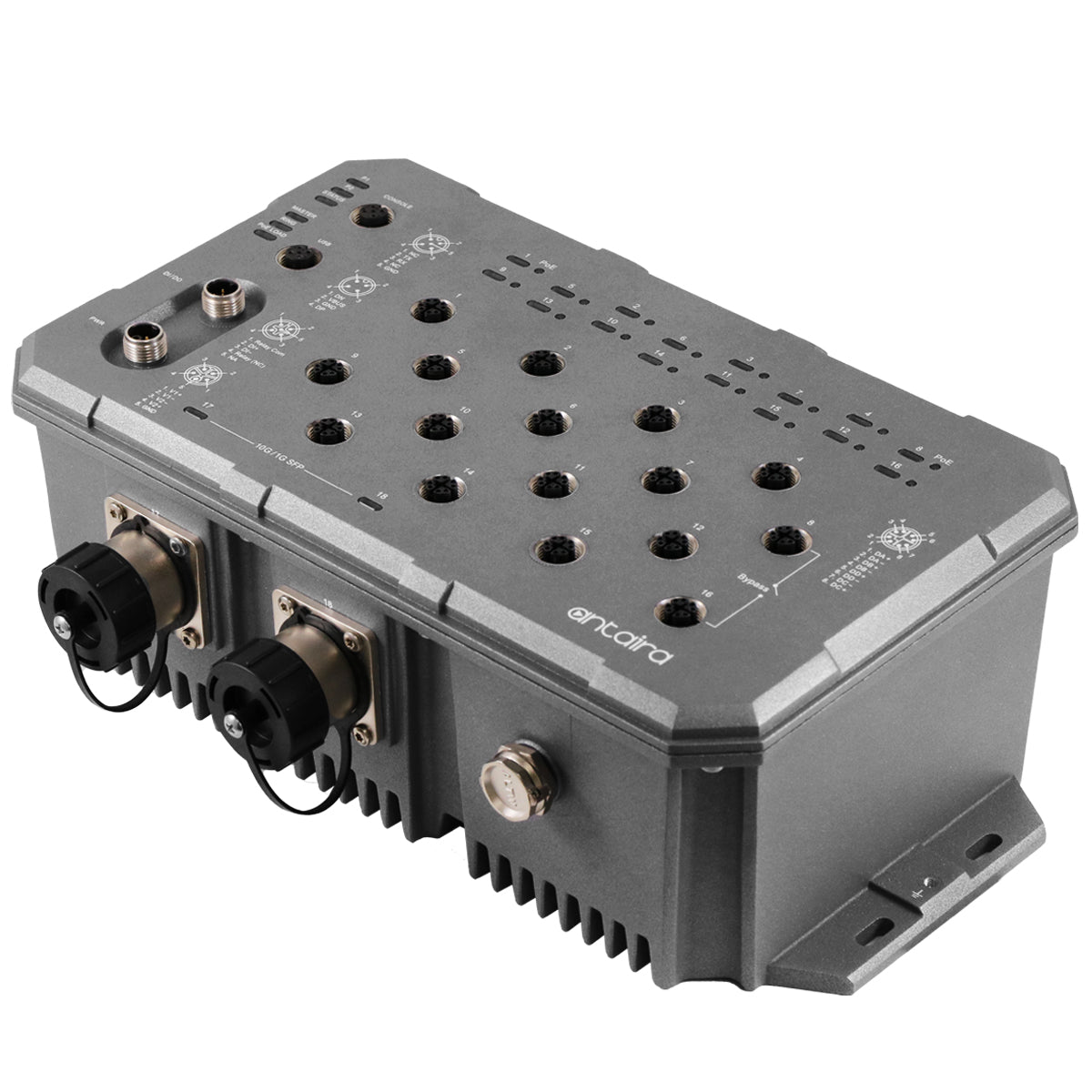

LMP-1802G-M12-10G-SFP-67-110-T | 18-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Light Layer 3 Managed Ethernet Switch with 16*10/100/1000Tx M12 Conn (X-Coded) (30W/Port) and 2*1G/10G SFP Slots; 24~110VDC Power EOT: -40°C to 70°C | Antaira

18-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Light Layer 3 Managed Ethernet Switch with 16*10/100/1000Tx M12 Conn (X-Coded) (30W/Port) and 2*1G/10G SFP Slots; 24~110VDC Power EOT: -40°C to 70°C

Antaira Technologies’ LMP-1802G-M12-10G-SFP-67-110-T is an 18-port managed gigabit Ethernet switch, which provides 16*10/100/1000 Base-T(X) with IEEE 802.3 af/at PoE compliant and 2*1G/10G fiber slots. LMP-1802G-M12-10G-SFP-67-110-T is a fully-manageable light layer 3 Ethernet switch and supports power input redundancy. The LMP-1802G-M12-10G-SFP-67-110-T offers standardized network redundancy ITU-T G.8032 ERPS v2 (Ethernet Ring Protection Switch) protocol, providing <50ms recovery time to the network.The LMP-1802G-M12-10G-SFP-67-110-T provides comprehensive network security and management capability by supporting multi-user accounts, IGMP, GVRP, VLAN, QoS, SNMP, RADIUS, TACACS+, Aggregation (Static, LACP), SSH, SSL, IP source guard to create a highly-secured network environment. For power saving purposes, assuring PD priority, and enhancing the security level of the network, the LMP-1802G-M12-10G-SFP-67-110-T also supports PoE scheduling and a PoE output limit function to set up PoE output duration and wattage at will.The LMP-1802G-M12-10G-SFP-67-110-T is an M12 IP67 PoE+ industrial gigabit Ethernet switch that meets the high-reliability requirements required in industrial applications. Its M12 connectors ensure a tight and robust connection guarantees reliable operation on applications subject to high vibration and shock in dust, liquid, or gas-laden environments. It can operate under the extended temperature range from -40°C to 70°C, useful in almost any harsh environment.

Features

• 16-Port 10/100/1000Base-T(X) Ethernet with IEEE 802.3af/at Compliant (30W/Port)
• 2-Port 1G/10G SFP Slots
• Multi-user Account for Security
• Bypass Design for Daisy Chain Redundancy
• Configuration: http, https, CLI Command, Telnet, SNMP, SSH
• Network Redundancy Support: G.8032 ERPS v2 / STP / RSTP / MSTP
• Supports Static Routes for Routing Function
• Supports RADIUS, TACACS+ Authentication Protocol
• Supports QoS, LACP Bandwidth Control
• Supports VLAN, SNMP v1/v2c/v3, ACL, IP Source Guard for Ethernet Security
• PoE Ping Alarm Function for PoE Ports Power Recycle
• Redundant Power Input Design
• Operating Temperature Range - EOT: -40°C to 70°C
• 5-Year Warranty

Included

• (2) SFP Metal Field Installable Cable End Lock
• Dust Cover Set
• LMP-1802G-M12-10G-SFP-67-110-T
• Quick Installation Guide
• SFP Removal Kit
