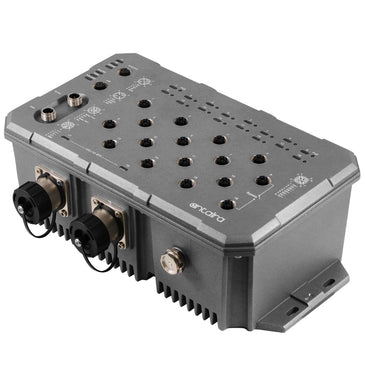

LMP-1802G-M12-10G-SFP-67-110 | 18-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Light Layer 3 Managed Ethernet Switch | with 1610/100/1000Tx M12 Connectors (X-Coded) (30W/Port) and 21G/10G SFP Slots; 24~110VDC Power Input | Antaira

18-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Light Layer 3 Managed Ethernet Switch, with 16*10/100/1000Tx M12 Connectors (X-Coded) (30W/Port) and 2*1G/10G SFP Slots; 24~110VDC Power Input

Brand: AntairaSKU: LMP-1802G-M12-10G-SFP-67-110

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LMP-1802G-M12-10G-SFP-67-110

Overview & Specifications Reviews Parts & Accessories

Overview Details for LMP-1802G-M12-10G-SFP-67-110

18-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Light Layer 3 Managed Ethernet Switch | with 16*10/100/1000Tx M12 Connectors (X-Coded) (30W/Port) and 2*1G/10G SFP Slots; 24~110VDC Power Input

Antaira Technologies’ LMP-1802G-M12-10G-SFP-67-110 is an 18-port managed gigabit Ethernet switch, which provides 16*10/100/1000 Base-T(X) with IEEE 802.3 af/at PoE compliant and 2*1G/10G fiber slots. LMP-1802G-M12-10G-SFP-67-110 is a fully-manageable light layer 3 Ethernet switch and supports power input redundancy. The LMP-1802G-M12-10G-SFP-67-110 offers standardized network redundancy ITU-T G.8032 ERPS v2 (Ethernet Ring Protection Switch) protocol, providing <50ms recovery time to the network.The LMP-1802G-M12-10G-SFP-67-110 provides comprehensive network security and management capability by supporting multi-user accounts, IGMP, GVRP, VLAN, QoS, SNMP, RADIUS, TACACS+, Aggregation (Static, LACP), SSH, SSL, IP source guard to create a highly-secured network environment. For power saving purposes, assuring PD priority, and enhancing the security level of the network, the LMP-1802G-M12-10G-SFP-67-110 also supports PoE scheduling and a PoE output limit function to set up PoE output duration and wattage at will.The LMP-1802G-M12-10G-SFP-67-110 is an M12 IP67 PoE+ industrial gigabit Ethernet switch that meets the high-reliability requirements required in industrial applications. Its M12 connectors ensure a tight and robust connection guarantees reliable operation on applications subject to high vibration and shock in dust, liquid, or gas-laden environments. It can operate under the standard temperature range from -10°C to 65°C, useful in almost any harsh environment.

Features

16-Port 10/100/1000Base-T(X) Ethernet with IEEE 802.3af/at Compliant (30W/Port)
2-Port 1G/10G SFP Slots
Multi-user Account for Security
Bypass Design for Daisy Chain Redundancy
Configuration: http, https, CLI Command, Telnet, SNMP, SSH
Network Redundancy Support: G.8032 ERPS v2 / STP / RSTP / MSTP
Supports Static Routes for Routing Function
Supports RADIUS, TACACS+ Authentication Protocol
Supports QoS, LACP Bandwidth Control
Supports VLAN, SNMP v1/v2c/v3, ACL, IP Source Guard for Ethernet Security
PoE Ping Alarm Function for PoE Ports Power Recycle
Redundant Power Input Design
Operating Temperature Range - STD: -10°C to 65°C
5-Year Warranty

Included

(2) SFP Metal Field Installable Cable End Lock
Dust Cover Set
LMP-1802G-M12-10G-SFP-67-110
Quick Installation Guide
SFP Removal Kit

Specifications

Ambient Relative Humidity: 5% to 95%, (non-condensing)
Bypass Protection: Ethernet Port 8 and Port 16
Certifications: FCC, CE
Configuration: Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
Configuration backup: 1*USB 2.0 with M12 4-pin A-coded female connector for configuration backup/restore
Digital Input: 1*Digital Input (DI) with M12 5-Pin A-coded male connector: State 0: -30~8VDC / State 1: 10~30VDC, Max. input current: 8mA
Dimensions: 183 x 295 x 101.3 mm (W x H x D)
EMI: FCC Part 15 Subpart B Class A,;CE EN55032/EN61000-6-4 Class A
EMS: CE EN55035/EN61000-6-2:;IEC61000-4-2,3,4,5,6,8
Ethernet Port: 16*10/100/1000 Base-T(X), 8-pin M12 X-Coded female connectors;Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control: IEEE 802.3x flow control, back pressure flow control
Free Fall: IEC60068-2-32
Green: RoHS Compliant
Housing: Metal, IP67 rated
IGMP Group: 1024
Input Voltage: 24~110VDC Redundant Input
Jumbo Frame: 9.6Kbytes
L2 Switching: Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2
L3 Switching: DHCP option82, static routes
LED Indicators: System: Power 1, Power 2, Master, Ring, Status, PoE Load;PoE: On-connected to PD devices;Ethernet ports: Speed/Link/Active;SFP: Link/Active
MAC Table Size: 32K
Memory Buffer: 32Mbits
Mounting: Wall mounting
Network Cable: 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000Base-T: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
Network Redundancy: STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
Operating Temperature: -10°C to 65°C
Optical Cable: Multi-mode cable - 50/125um or 62.5/125um,;Single-mode cable - 9/125um or 10/125um
Overload Current Protection: Present (Slow-Blown Fuse)
Poe Pin Assignment: V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A)
PoE Power Budget: 120W
Power Connection: Dual DC power inputs through M12 5-pin K-coded male connector
Power Saving: ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Priority Queues: 8
Processing Type: Store and Forward
QoS: 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
Railway: EN50121-3-2, EN50121-4
Relay Contact: 24VDC, 1A resistive
Reverse Polarity Protection: Present
RS232 Serial Console: 1*RS232 with M12 5-pin A-coded female connector
SFP Port: 2*1G/10G SFP Slots
Shock: IEC60068-2-27
Storage Temperature: -40°C to 85°C
Switching Architecture: Back-Plane (Switching Fabric): 72Gbps
System / Diagnostics: Dual Image Protection, PING, PING6
System Power Consumption: 45W
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port;14,880,000pps for 10 Gigabit Ethernet Port
Vibration: IEC60068-2-6
VLAN Groups: 4095
Warranty: 5 Years
Weight: Unit: 9.61 lbs.;Shipping: 11.38 lbs.
