16-Port Industrial Gigabit PoE+ Light Layer 3 Managed Ethernet Switch, w/16*10/100/1000Tx (30W/port), EoT: -40°C~75°C

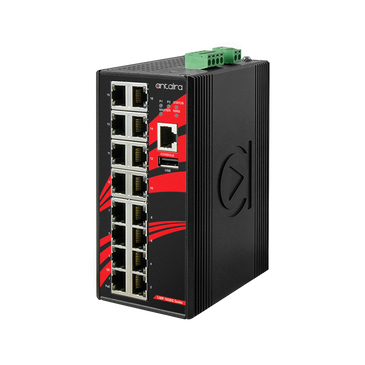

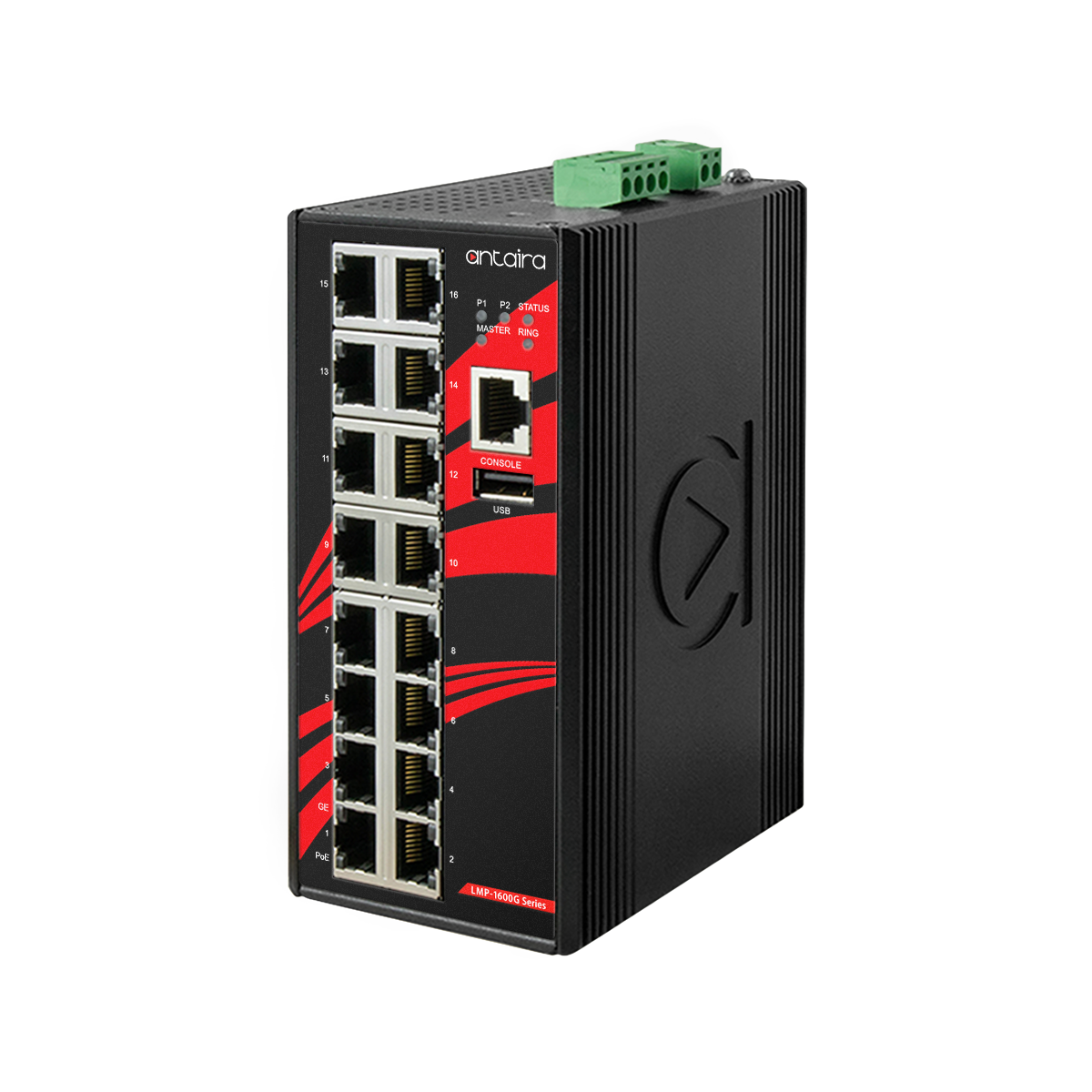

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LMP-1600G-T

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Antaira LMP-1600G-T Documents

Hardware Manual Product Datasheet Software Manual More Info

Overview

Details for LMP-1600G-T

16-Port Industrial Gigabit PoE+ Light Layer 3 Managed Ethernet Switch | w/16*10/100/1000Tx (30W/port) | EoT: -40°C~75°C

Antaira’s LMP-1600G-T is a 16-port industrial Gigabit PoE+ Light Layer 3 managed Ethernet switch embedded with 16*10/100/1000Tx Ethernet ports that support IEEE 802.3at/af for a maximum of 30W/port. It is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, RMON, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMP-1600G-T is IP30 rated, DIN-rail mountable, and supports an extended operating temperature range of -40°C to 75°C. It also provides high EFT and ESD protection for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS, or any other outdoor or harsh environment.

Features

Supports 16*10/100/1000Tx IEEE 802.3at/af Compliant with 30W/Port
Network Broadcast Storm Protection
Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
Configuration: Web Console, Serial, CLI Command
Supports IGMP v1/v2
Supports QoS (IEEE 802.1p) and CoS/ToS
Supports IEEE 802.1Q VLAN, SNMP v1/v2c/v3
Redundant Power Input Design 48~55VDC + Built-in Relay Output for Port Break Alarm
System Warning Setting for Automatic Warning through E-mail
DIN-Rail and Wall Mount Support
Operating Temperature Range - EOT: -40° to 75°C
5-Year Warranty

Included

DC Cable - 18 AWG with DC jack 5.5x2.1mm
LMP-1600G-T
Quick Installation Guide
RJ45 dust cover set
Serial Console Cable
Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity: 5 to 95%, (non-condensing)
Certifications: FCC, CE, UL 61010-1, 61010-2-201, NEMA TS2
Configuration: Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
Configuration backup: 1*USB 2.0
Dimensions: 67 x 142 x 99 mm (W x H x D)
EMI: FCC Class A;CE EN55032/EN61000-6-4 Class A
EMS: CE EN55035/EN61000-6-2 Class A;EN61000-4-2,3,4,5,6,8
Ethernet Port: 16*10/100/1000BaseTx (30W/Port);Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control: IEEE 802.3x for full duplex mode, back pressure for half duplex mode
Free Fall: IEC60068-2-32
Green: RoHS Compliant
Housing: Metal, IP30 rated
IGMP Group: 1024
Input Voltage: 48~55VDC Redundant Input
Jumbo Frame: 9.6Kbytes
L2 Switching: Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2
L3 Switching: DHCP option82, static routes
MAC Table Size: 8K
Mounting: DIN-Rail mounting; Wall mounting
Network Cable: 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable; EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable; EIA/TIA-568 100-ohm (100m);1000Base-TX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
Network Redundancy: STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
Operating Temperature: -40°C to 75°C
Overload Current Protection: Present
Packet Buffer: 4Mbits
PoE Pin Out: V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI Alternative A)
PoE Power Budget: 240Watts
Power Connection: 1 removable 4-contact and 2-contact terminal block
Power Saving: ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Processing Type: Store and Forward
Protocols: IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone / Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power Lost Warning, Relay Trigger
QoS: 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
Relay Contact: 24VDC, 1A resistive
Reverse Polarity Protection: Present (the unit will not be on, if power reverse)
RS232 Serial Console: 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8, N, 1
Shock: IEC60068-2-27
Storage Temperature: -40°C ~ 85°C
Substation: IEC 61850-3 Edition 2.0
Switching Architecture: Back-Plane (Switching Fabric): 32.0Gbps
System / Diagnostics: Dual Image Protection, PING, PING6
System Power Consumption: 13.8 Watts
Transfer Rate: 14,880pps for 10Base-T Ethernet;148,800pps for 100Base-T Fast Ethernet;1,488,000pps for Gigabit Ethernet
Vibration: IEC60068-2-6
VLAN Groups: 4095
Warranty: 5 years
Weight: Unit: 2.65 Ibs;Shipping: 3.09 Ibs
