LMP-1600G | 16-Port Industrial Gigabit PoE+ Light Layer 3 Managed Ethernet Switch | w/16*10/100/1000Tx (30W/port); 48~55VDC Power Input | Antaira
16-Port Industrial Gigabit PoE+ Light Layer 3 Managed Ethernet Switch, w/16*10/100/1000Tx (30W/port); 48~55VDC Power Input

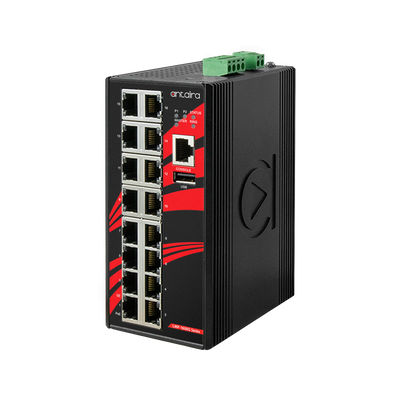

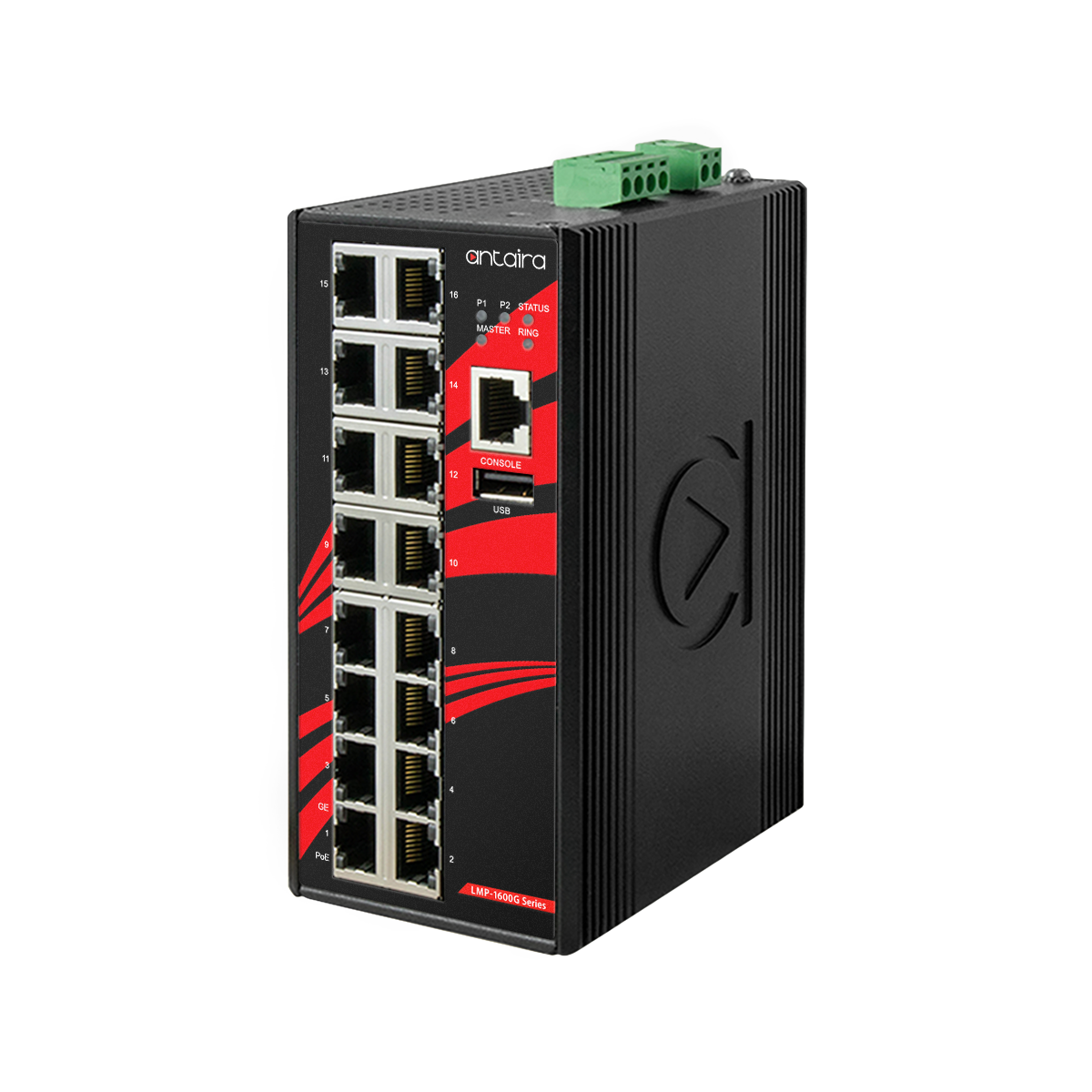

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMP-1600G
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LMP-1600G Documents
Overview
Details for LMP-1600G
16-Port Industrial Gigabit PoE+ Light Layer 3 Managed Ethernet Switch | w/16*10/100/1000Tx (30W/port); 48~55VDC Power Input
Antaira’s LMP-1600G-SFP is a 16-port industrial Gigabit PoE+ Light Layer 3 managed Ethernet switch embedded with 16*10/100/1000Tx Ethernet ports that support IEEE 802.3at/af for a maximum of 30W/port. It is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, RMON, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMP-1600G-SFP is IP30 rated, DIN-rail mountable, and supports a standard operating temperature range of -10°C to 70°C. It also provides high EFT and ESD protection for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS, or any other outdoor or harsh environment.Features
- Supports 16*10/100/1000Tx IEEE 802.3at/af Compliant with 30W/Port
- Network Broadcast Storm Protection
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
- Configuration: Web Console, Serial, CLI Command
- Supports IGMP v1/v2
- Supports QoS (IEEE 802.1p) and CoS/ToS
- Supports IEEE 802.1Q VLAN, SNMP v1/v2c/v3
- Redundant Power Input Design 12~48VDC + Built-in Relay Output for Port Break Alarm
- System Warning Setting for Automatic Warning through E-mail
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 70°C
- 5-Year Warranty
Included
- DC Cable - 18 AWG with DC jack 5.5x2.1mm
- LMP-1600G
- Quick Installation Guide
- RJ45 dust cover set
- Serial Console Cable
- Wall mounting bracket set with screws
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Certifications
- FCC, CE, UL 61010-1, 61010-2-201, NEMA TS2
- Configuration
- Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
- Configuration backup
- 1*USB 2.0
- Dimensions
- 67 x 142 x 99 mm (W x H x D)
- EMI
- FCC Class A;CE EN55032/EN61000-6-4 Class A
- EMS
- CE EN55035/EN61000-6-2 Class A;EN61000-4-2,3,4,5,6,8
- Ethernet Port
- 16*10/100/1000BaseTx (30W/Port);Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Flow Control
- IEEE 802.3x for full duplex mode, back pressure for half duplex mode
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal, IP30 rated
- IGMP Group
- 1024
- Input Voltage
- 48~55VDC Redundant Input
- Jumbo Frame
- 9.6Kbytes
- L2 Switching
- Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2
- L3 Switching
- DHCP option82, static routes
- MAC Table Size
- 8K
- Mounting
- DIN-Rail mounting; Wall mounting
- Network Cable
- 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable; EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable; EIA/TIA-568 100-ohm (100m);1000Base-TX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
- Network Redundancy
- STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
- Operating Temperature
- -10°C to 70°C
- Overload Current Protection
- Present
- Packet Buffer
- 4Mbits
- PoE Pin Out
- V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI Alternative A)
- PoE Power Budget
- 240Watts
- Power Connection
- 1 removable 4-contact and 2-contact terminal block
- Power Saving
- ActiPHY, PerfectReach, IEEE 802.3az EEE power management
- Processing Type
- Store and Forward
- Protocols
- IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone / Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power Lost Warning, Relay Trigger
- QoS
- 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
- Relay Contact
- 24VDC, 1A resistive
- Reverse Polarity Protection
- Present (the unit will not be on, if power reverse)
- RS232 Serial Console
- 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8, N, 1
- Shock
- IEC60068-2-27
- Storage Temperature
- -40°C ~ 85°C
- Substation
- IEC 61850-3 Edition 2.0
- Switching Architecture
- Back-Plane (Switching Fabric): 32.0Gbps
- System / Diagnostics
- Dual Image Protection, PING, PING6
- System Power Consumption
- 13.8 Watts
- Transfer Rate
- 14,880pps for 10Base-T Ethernet;148,800pps for 100Base-T Fast Ethernet;1,488,000pps for Gigabit Ethernet
- Vibration
- IEC60068-2-6
- VLAN Groups
- 4095
- Warranty
- 5 Years
- Weight
- Unit: 2.65 Ibs;Shipping: 3.09 Ibs
