LMP-1204G-SFP-bt-24-T-BOS | 12-Port Industrial Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch with 4*10/100/1000Tx (90W/Port) | 4*10/100/1000Tx (30W/Port) and 4*100/1000 SFP Slots; 12~55VDC Power; with Bosch firmware | Antaira

12-Port Industrial Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch with 4*10/100/1000Tx (90W/Port), 4*10/100/1000Tx (30W/Port) and 4*100/1000 SFP Slots; 12~55VDC Power; with Bosch firmware

Brand: AntairaSKU: LMP-1204G-SFP-bt-24-T-BOS

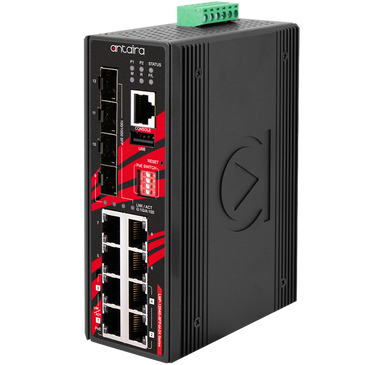

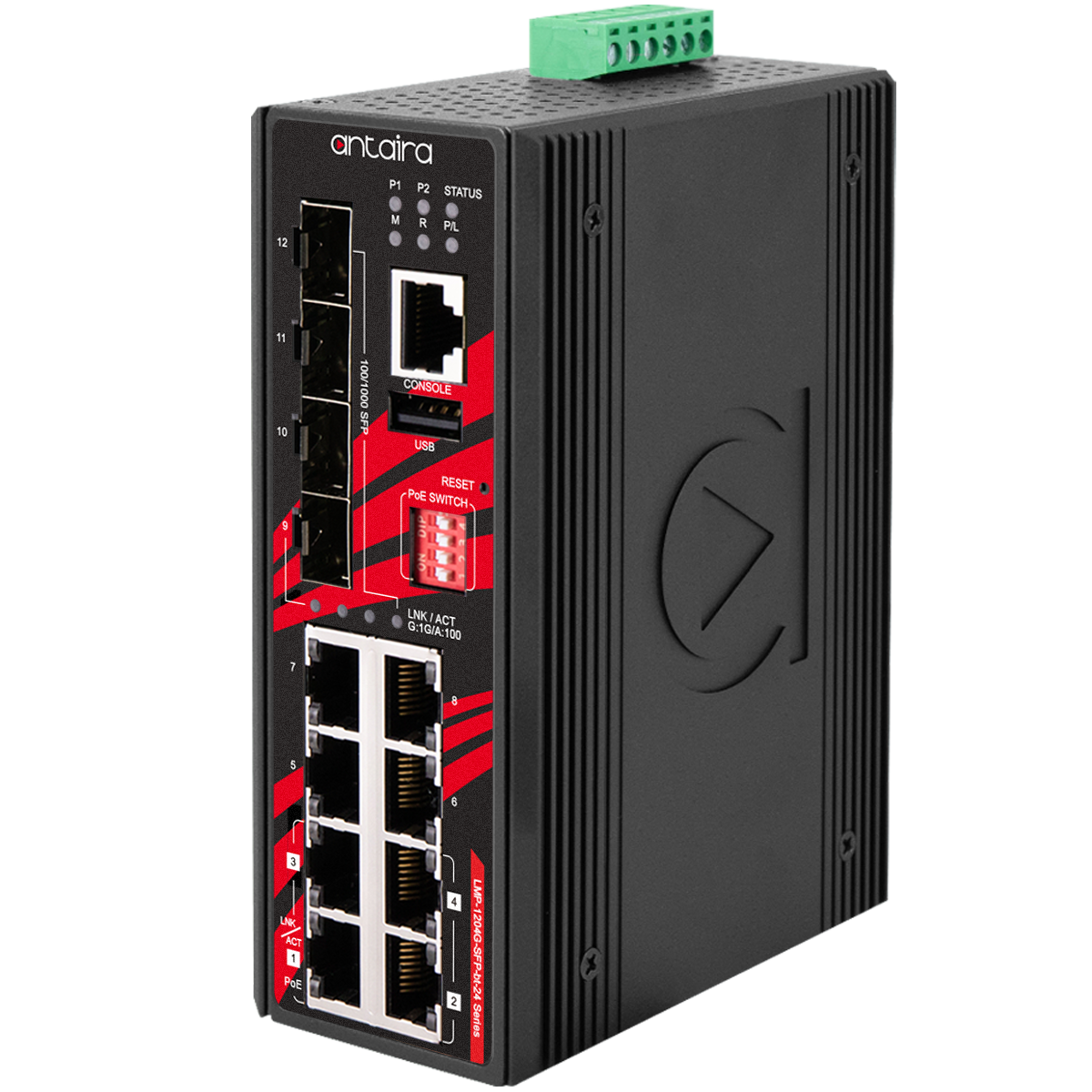

Antaira | LMP-1204G-SFP-bt-24-T-BOS
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMP-1204G-SFP-bt-24-T-BOS

Overview Details for LMP-1204G-SFP-bt-24-T-BOS

12-Port Industrial Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch with 4*10/100/1000Tx (90W/Port) | 4*10/100/1000Tx (30W/Port) and 4*100/1000 SFP Slots; 12~55VDC Power; with Bosch firmware

Antaira Technologies’ LMP-1204G-SFP-bt-24-T-BOS is a 12-port industrial Gigabit PoE++ managed Ethernet switch embedded with 4*10/100/1000TxEthernet ports that support IEEE 802.3bt for a maximum of 95W/port, 4*10/100/1000Tx Ethernet ports with IEEE 802.3af/at support for a maximum of 30W/Port, and 4*100/1000 dual rate SFP slots for fiber connection. The LMP-1204G-SFP-bt-24-T-BOS is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.The LMP-1204G-SFP-bt-24-T-BOS is IP30 rated, DIN-rail mountable, and supports an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.

Features

  • Supports 4*10/100/1000Tx IEEE 802.3bt Compliant with 95W/Port, 4*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port, and 4*100/1000 SFP Slots
  • Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS v1/v2 (Recovery Time <50ms)
  • Configuration: Web Console, Telnet, CLI Command
  • Supports IGMP v1/v2/v3, up to 1024 Groups
  • Supports QoS (IEEE 802.1p) and CoS/ToS
  • Supports IEEE 802.1Q VLAN, SNMP v1/v2c
  • Power Input: 12~55VDC in 6-Pin Terminal Block
  • Reverse Polarity Protection
  • IP30 Protection
  • DIN-Rail or Wall Mountable
  • Operating Temperature Range – EOT: -40°C to 75°C
  • 5-Year Warranty

Included

  • DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
  • LMP-1204G-SFP-bt-24-T-BOS
  • Quick Installation Guide
  • RJ45 dust cover set
  • RJ45 to DB9 serial Console cable
  • Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity
5% to 95%, (non-condensing)
Certifications
FCC, CE
Configuration
Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
Dimensions
54 x 142 x 99mm (W x H x D)
EMI
FCC Part 15 Subpart B Class A;CE EN55032/EN61000-6-4 Class A
EMS
CE EN55035/EN61000-6-2 Class A;IEC61000-4-2,3,4,5,6,8
Ethernet Port
8*10/100/1000Base-TX (90W/Port for Port 1~4, 30W/Port for Port 5~8), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control
IEEE 802.3x for full duplex mode, back pressure for half duplex mode
Free Fall
IEC60068-2-32
Green
RoHS Compliant
Housing
Metal, IP30 protection
IGMP Group
1024
Input Voltage
12-55VDC Redundant Power Inputs
Jumbo Frame
9.6 Kbytes
L2 Switching
Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2
L3 Switching
DHCP option82, static routes
LED Indicators
System: Power 1, Power 2, Master (M), Ring (R), Status, PoE Load (P/L);Ethernet ports: Speed/Link/Active;PoE: On-connected to PD devices;SFP: Link/Active
MAC Table Size
8K
Mounting
DIN-Rail Mounting, Wall Mounting
Network Cable
10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000Base-TX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
Network Redundancy
STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
Operating Temperature
-40°C to 75°C
Overload Current Protection
Present
Packet Buffer
4 Mbits
Poe Pin Assignment
V-, V-, V+, V+ for pin 1, 2, 3, 6;V+, V+, V-, V- for pin 4, 5, 7, 8;*Support Modes: Mode A, Mode B, 4-Pair Mode
PoE Power Budget
90W @12VDC;180W @24VDC;240W @36~55VDC
Power Connection
Removable 6-Contact Terminal Block
Power Saving
ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Priority Queues
8
Processing Type
Store and Forward
Protocols
IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone /Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, USB configuration backup/restore, Power lost warning, relay trigger
QoS
802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mod
Relay Contact
24VDC, 1A resistive
Reverse Polarity Protection
Present
RS232 Serial Console
1*RS232 in RJ45
SFP Port
4*100/1000 SFP Slots
Shock
IEC60068-2-27
Storage Temperature
-40°C to 85°C
Switching Architecture
Back-Plane (Switching Fabric): 24Gbps
System / Diagnostics
Dual Image Protection, PING, PING6
System Power Consumption
12.5 W
Transfer Rate
14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Vibration
IEC60068-2-6
VLAN Groups
4095
Warranty
5 years
Weight
Unit: 2.53 lbs;Shipping: 3.33 lbs
