LMP-1202M-SFP-24-T | 12-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch | w/8*10/100Tx (30W/Port) | 2*10/100/1000Tx RJ45 | and 2*100/1000 SFP Slots; 12~36VDC; EOT: -40~75C | Antaira
12-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch, w/8*10/100Tx (30W/Port) , 2*10/100/1000Tx RJ45, and 2*100/1000 SFP Slots; 12~36VDC; EOT: -40~75C

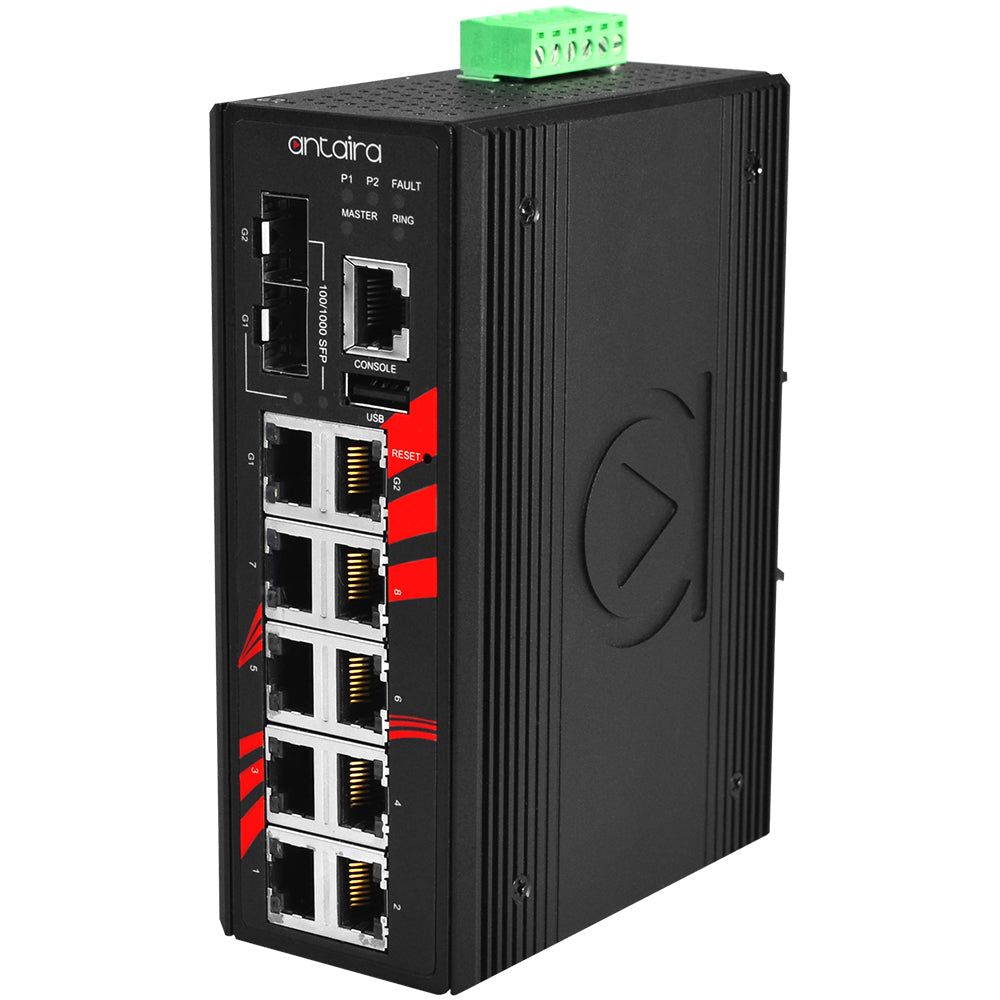

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMP-1202M-SFP-24-T
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LMP-1202M-SFP-24-T Documents
Overview
Details for LMP-1202M-SFP-24-T
12-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch | w/8*10/100Tx (30W/Port) | 2*10/100/1000Tx RJ45 | and 2*100/1000 SFP Slots; 12~36VDC; EOT: -40~75C
Antaira’s LMP-1202M-SFP is a 12-port industrial PoE+ Light Layer 3 managed Ethernet switch that is embedded with 8*10/100Tx Ethernet ports that support IEEE 802.3at/af for a maximum of 30W/port, 2*10/100/1000Tx RJ45 and 2*100/1000 Dual Rate SFP Slots for Gigabit Fiber. This series is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. The ports provide flexibility to users for either 10/100 or 1000Tx Fast Ethernet or plug in SFP Modules for 100MB or Gigabit Fiber connection to achieve bandwidth or distance concern applications.The LMP-1202M-SFP-24-T is IP30 rated, DIN-rail mountable, and supports an extended operating temperature range of -40°C to 75°C. This model supports a dual power input having a low voltage range (12~36VDC) and a built-in voltage booster allowing the unit to give a full 48VDC PoE power for any mobile PoE application or any low voltage power sourcing environment. It also provides high EFT and ESD protection for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS, or any other outdoor or harsh environment.Features
- Supports 8*10/100Tx IEEE 802.3at/af Compliant with 30W/Port, 2*10/100/1000Tx RJ45 & 2*100/1000 SFP Slots
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Configuration: Web Console, Telnet, CLI Command
- Supports IGMP v1/v2, up to 256 Groups
- Supports QoS (IEEE802.1p) and CoS/ToS
- Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
- PoE Ping Alarm Function for PoE Ports Power Recycle
- System Warning Setting for Automatic Warning through E-Mail
- Redundant Power Input Design: 12~36VDC, (w/built-in Voltage Booster)
- Housing: Metal IP 30 Rated; DIN-Rail and Wall Mount Support
- Extended Operating Temperature: -40°C to 75°C
- 5-Year Warranty
Included
- 1 - DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- 1 - LMP-1202M-SFP-24-T
- 1 - RJ45 to DB9 Serial Console Cables
- 2 - Wall Mounting Brackets and Screws
Specifications
- Certifications
- FCC, CE, UL 61010-1, 61010-2-201, NEMA TS2
- Configuration
- Web Console, Telnet, CLI
- Configuration backup
- 1*USB 2.0
- Dimensions
- 54 x 142 x 99 mm
- EMI
- FCC Class A
- EMS
- IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4
- Ethernet Port
- 8*10/100BaseTx (PSE: 30W/Port) auto negotiation speed, Full/Half duplex mode, and auto MDI connection
- Gigabit Ethernet Port
- 2*RJ45 w/10/100/1000Tx Fast Ethernet and 2*100/1000 SFP Slot For Fiber
- Green
- RoHS Compliant
- Housing / Mounting
- Metal IP30 rated / DIN-Rail & Wall-Mount (optional)
- IGMP
- Up to 256 Groups
- Input Voltage & Connection
- 12-36VDC Redundant Input / 1 removable 6-contact terminal block
- Operating Temperature
- EXT: -40 to 75°C
- Power Consumption
- 15 Watts (no PD included); 255 Watts @48~55VDC
- Protection
- Power line EFT: 2,000VDC; Ethernet ESD: 6,000VDC;Overload Current, Power Reverse Polarity, CPU Watchdog
- Protocols
- IGMPv1/v2, SNMPv1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
- Serial Console
- 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
- Shock/Vibration/Free Fall
- IEC60068-2-27 / 2-6 / 2-32
- Standards
- IEEE 802.3 / 802.3u / 802.3x / 802.3ad,;IEEE 802.1d / 802.1w / 802.1s / 802.1Q / 802.1X / 802.1p;ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
- VLAN
- 1 ~ 4094
- Warranty
- 5 Years
- Wavelength
- Refer to SFP Module
- Weight
- Unit: 2.4 lbs; Shipping: 3.2 lbs
