LMP-1202M-SFP-24 | 12-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch | w/8*10/100Tx (30W/Port) | 2*10/100/1000Tx RJ45 | and 2*100/1000 SFP Slots; 12~36VDC | Antaira

12-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch | w/8*10/100Tx (30W/Port) | 2*10/100/1000Tx RJ45 | and 2*100/1000 SFP Slots; 12~36VDC

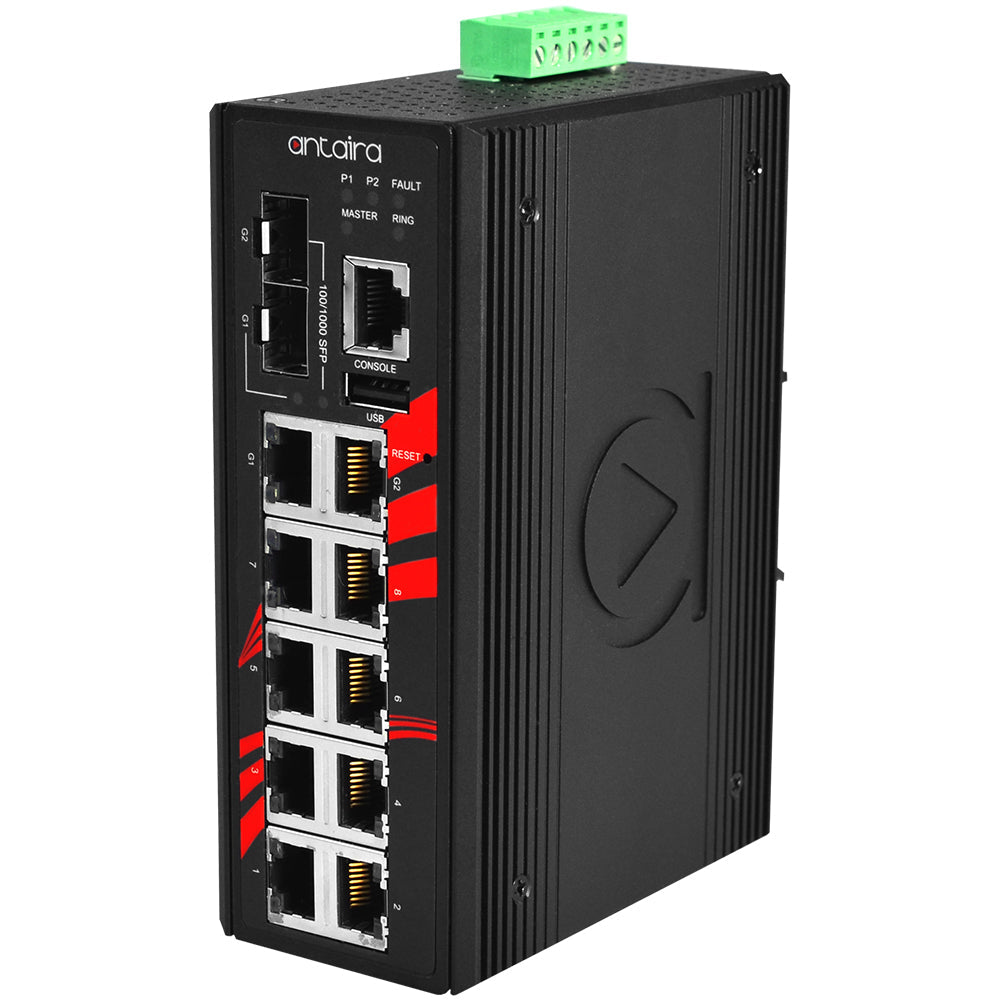

Antaira’s LMP-1202M-SFP-24 is a 12-port industrial PoE+ Light Layer 3 managed Ethernet switch that is embedded with 8*10/100Tx Ethernet ports that support IEEE 802.3at/af for a maximum of 30W/port, 2*10/100/1000Tx RJ45 and 2*100/1000 Dual Rate SFP Slots for Gigabit Fiber. This series is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. The ports provide flexibility to users for either 10/100 or 1000Tx Fast Ethernet or plug in SFP Modules for 100MB or Gigabit Fiber connection to achieve bandwidth or distance concern applications. The LMP-1202M-SFP-24 has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C. It provides dual power input with low voltage power input support of 12~36VDC with voltage booster. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, or any other outdoor or harsh environment.

Features

• Supports 8*10/100Tx IEEE 802.3at/af Compliant with 30W/Port, 2*10/100/1000Tx RJ45 & 2*100/1000 SFP Slots
• Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
• Configuration: Web Console, Telnet, CLI Command
• Supports IGMP v1/v2, up to 256 Groups
• Supports QoS (IEEE802.1p) and CoS/ToS
• Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
• PoE Ping Alarm Function for PoE Ports Power Recycle
• System Warning Setting for Automatic Warning through E-Mail
• Redundant Power Input Design: 12~36VDC (with Voltage Booster built-in)
• Housing: Metal IP 30 Rated; DIN-Rail and Wall Mount Support
• Standard Operating Temperature: -10~70C
• 5-Year Warranty

Included

• 1 - DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
• 1 - LMP-1202M-SFP-24
• 1 - RJ45 to DB9 Serial Console Cables
• 2 - Wall Mounting Brackets and Screws
