LMP-1202M-SFP | 12-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch | w/810/100Tx (30W/Port) | 210/100/1000Tx RJ45 | and 2*100/1000 SFP Slots | Antaira

12-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch, w/8*10/100Tx (30W/Port) , 2*10/100/1000Tx RJ45, and 2*100/1000 SFP Slots

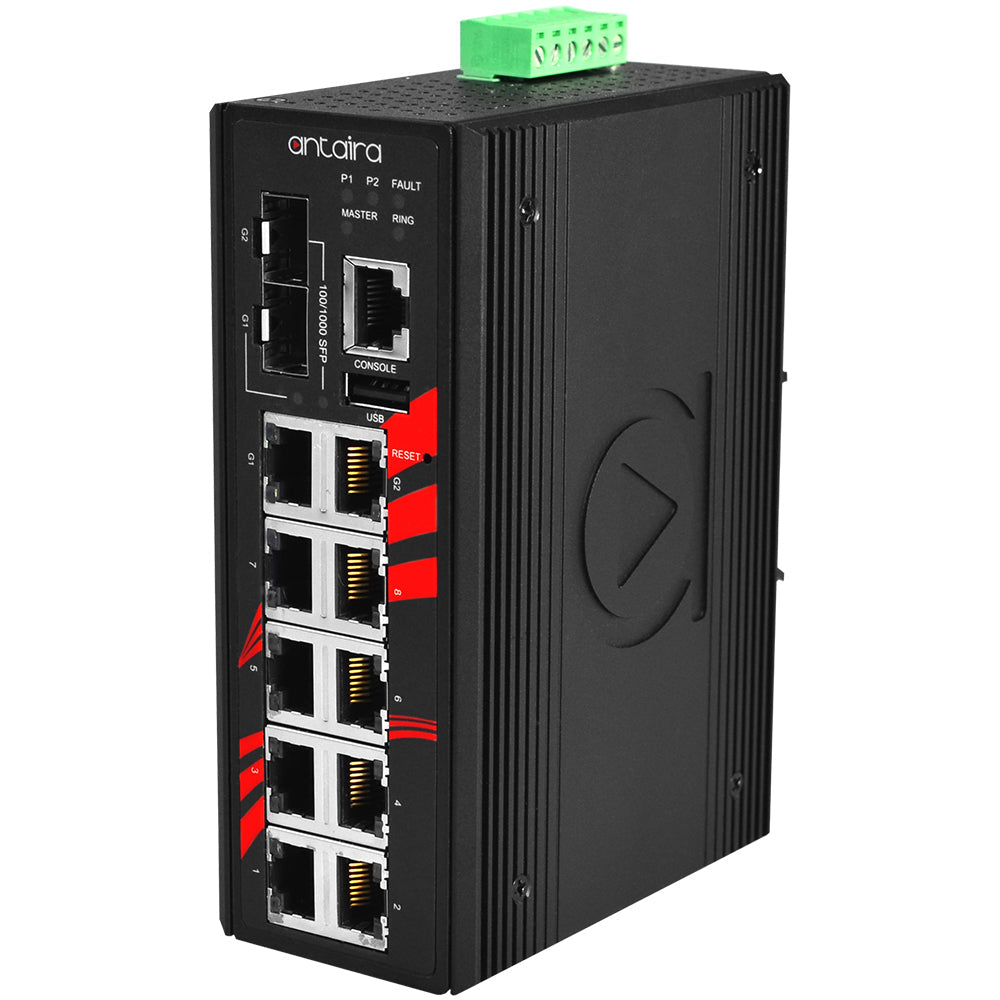

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LMP-1202M-SFP

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Antaira LMP-1202M-SFP Documents

Hardware Manual Product Datasheet Software Manual Firmware: Please register or login to download More Info

Overview

Details for LMP-1202M-SFP

12-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch | w/8*10/100Tx (30W/Port) | 2*10/100/1000Tx RJ45 | and 2*100/1000 SFP Slots

Antaira’s LMP-1202M-SFP is a 12-port industrial PoE+ Light Layer 3 managed Ethernet switch that is embedded with 8*10/100Tx Ethernet ports that support IEEE 802.3at/af for a maximum of 30W/port, 2*10/100/1000Tx RJ45 and 2*100/1000 Dual Rate SFP Slots for Gigabit Fiber. This series is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. The ports provide flexibility to users for either 10/100 or 1000Tx Fast Ethernet or plug in SFP Modules for 100MB or Gigabit Fiber connection to achieve bandwidth or distance concern applications. The LMP-1202M-SFP has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, or any other outdoor or harsh environment.

Features

Supports 8*10/100Tx IEEE 802.3at/af Compliant with 30W/Port, 2*10/100/1000Tx RJ45 & 2*100/1000 SFP Slots
Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
Configuration: Web Console, Telnet, CLI Command
Supports IGMP v1/v2, up to 256 Groups
Supports QoS (IEEE802.1p) and CoS/ToS
Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
PoE Ping Alarm Function for PoE Ports Power Recycle
System Warning Setting for Automatic Warning through E-Mail
Redundant Power Input Design: 48~55VDC
Housing: Metal IP 30 Rated; DIN-Rail and Wall Mount Support
Standard Operating Temperature: -10~70C
5-Year Warranty

Included

1 - DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
1 - LMP-1202M-SFP
1 - RJ45 to DB9 Serial Console Cables
2 - Wall Mounting Brackets and Screws

Specifications

Certifications: FCC, CE, UL 61010-1, 61010-2-201, NEMA TS2
Configuration: Web Console, Telnet, CLI
Configuration backup: 1*USB 2.0
Dimensions: 54 x 142 x 99 mm
EMI: FCC Class A
EMS: IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4
Ethernet Port: 8*10/100BaseTx (PSE: 30W/Port) auto negotiation speed, Full/Half duplex mode, and auto MDI connection
Gigabit Ethernet Port: 2*RJ45 w/10/100/1000Tx Fast Ethernet and 2*100/1000 SFP Slot For Fiber
Green: RoHS Compliant
Housing / Mounting: Metal IP30 rated / DIN-Rail & Wall-Mount (optional)
IGMP: Up to 256 Groups
Input Voltage & Connection: 48~55VDC Redundant Input / 1 removable 6-contact terminal block
Operating Temperature: STD: -10 to 70°C
Power Consumption: 15 Watts (no PD included); 255 Watts @48~55VDC
Protection: Power line EFT: 2,000VDC; Ethernet ESD: 6,000VDC;Overload Current, Power Reverse Polarity, CPU Watchdog
Protocols: IGMPv1/v2, SNMPv1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
Serial Console: 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
Shock/Vibration/Free Fall: IEC60068-2-27 / 2-6 / 2-32
Standards: IEEE 802.3 / 802.3u / 802.3x / 802.3ad,;IEEE 802.1d / 802.1w / 802.1s / 802.1Q / 802.1X / 802.1p;ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
VLAN: 1 ~ 4094
Warranty: 5 Years
Wavelength: Refer to SFP Module
Weight: Unit: 2.4 lbs; Shipping: 3.2 lbs
