LMP-1002G-SFP-T | 10-Port IndustriaL PoE+ Light Layer 3 Managed Ethernet Switch | w/8*10/100/1000Tx (30W/port) + 2*100/1000 SFP Slot; EOT: -40~75C | Antaira

10-Port IndustriaL PoE+ Light Layer 3 Managed Ethernet Switch | w/8*10/100/1000Tx (30W/port) + 2*100/1000 SFP Slot; EOT: -40~75C

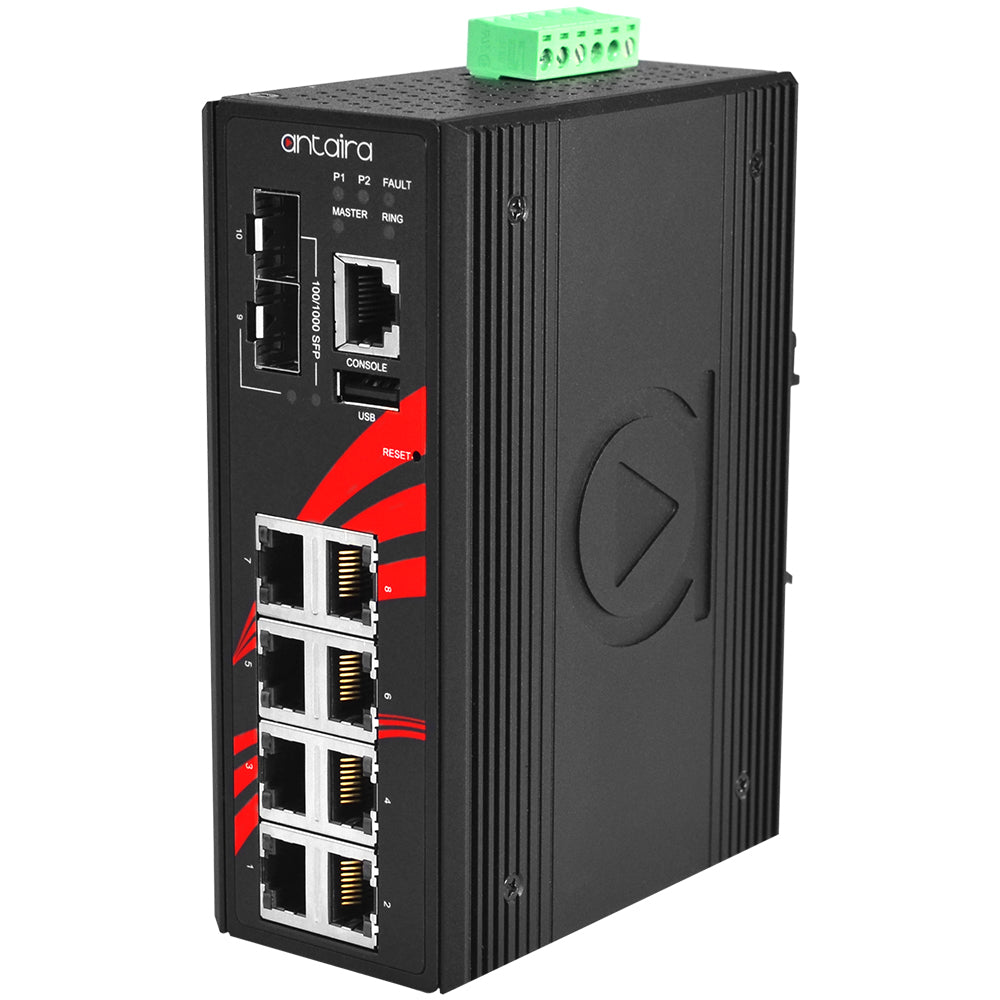

Antaira’s LMP-1002G-SFP-T is a 10-port industrial Gigabit PoE+ Light Layer 3 managed Ethernet switch embedded with 8*10/100/1000Tx Ethernet ports that support IEEE802.3at/af for a maximum of 30W/port, and 2*100/1000 dual rate SFP slots for Gigabit fiber connections. It is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, RMON, ModbusTCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.The LMP-1002G-SFP-T is IP30 rated, DIN-rail mountable, and supports an extended operating temperature range of -40°C to 75°C. It also provides high EFT and ESD protection for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS, or any other outdoor or harsh environment.

Features

• Supports 8*10/100/1000Tx IEEE 802.3at/af Compliant with 30W/Port, and 2*100/1000 SFP Slots
• Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
• Configuration: Web Console, Telnet, CLI Command
• Supports IGMP v1/v2, up to 256 Groups
• Supports QoS (IEEE802.1p) and CoS/ToS
• Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
• PoE Ping Alarm Function for PoE Ports Power Recycle
• System Warning Setting for Automatic Warning through E-Mail
• Redundant Power Input Design: 48~55VDC
• Housing: Metal IP 30 Rated; DIN-Rail and Wall Mount Support
• Standard Operating Temperature: -40°C to 75°C
• 5-Year Warranty

Included

• 1-DC cable –18 AWG & DC jack 5.5x2.1mm
• 1-LMP-1002G-SFP-T
• 1-RJ45 to DB9 Serial Console cable
• 2-Wall mounting brackets and screws
