LMP-1002G-10G-SFP-24 | 10-Port Industrial PoE+ Light Layer 3 Gigabit Managed Ethernet Switch | with 810/100/1000Tx (30W/Port) and 21G/10G SFP+ Slots; 12~55VDC Power Input | Antaira

10-Port Industrial PoE+ Light Layer 3 Gigabit Managed Ethernet Switch, with 8*10/100/1000Tx (30W/Port) and 2*1G/10G SFP+ Slots; 12~55VDC Power Input

Brand: AntairaSKU: LMP-1002G-10G-SFP-24

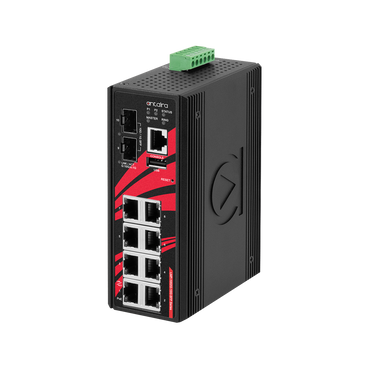

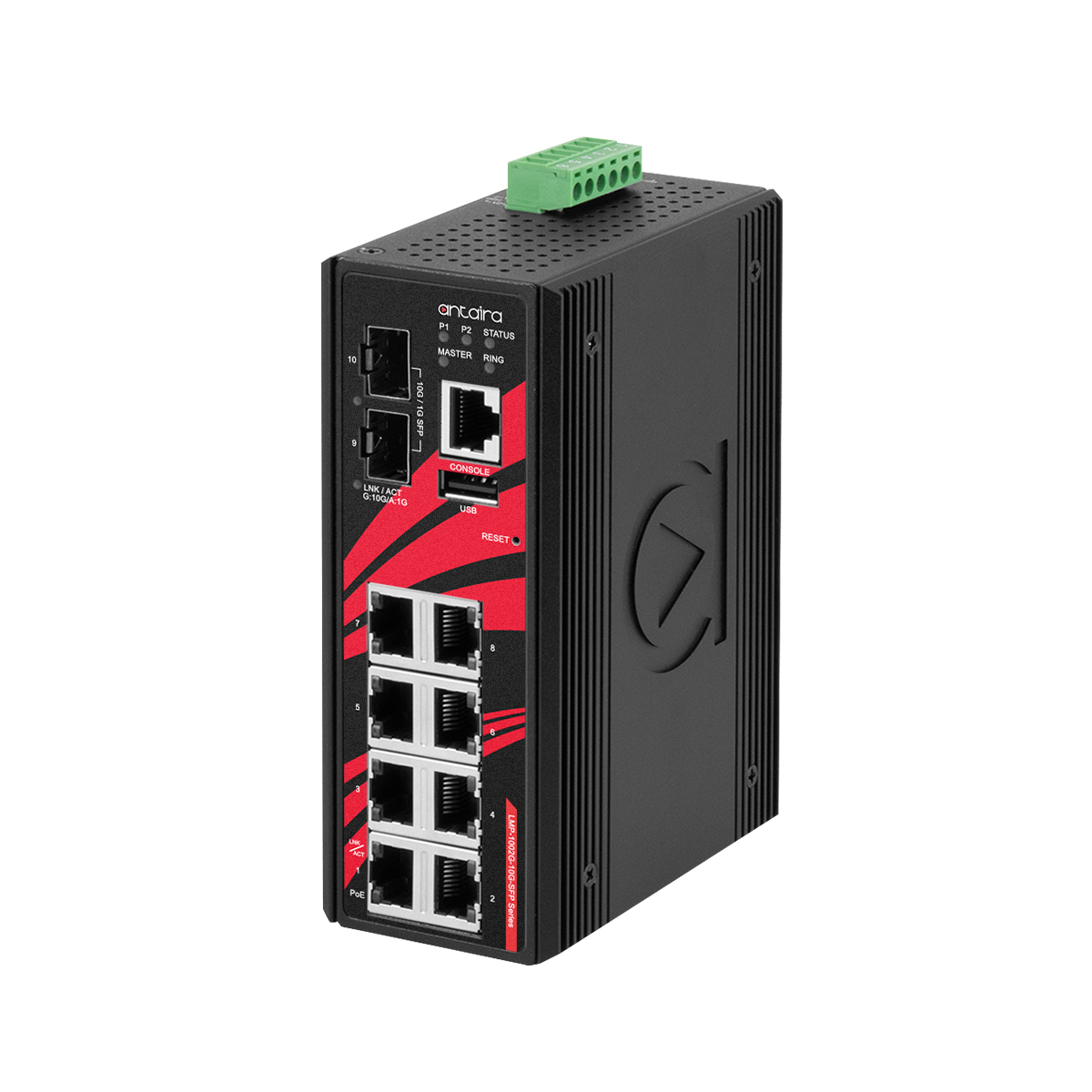

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LMP-1002G-10G-SFP-24

Overview & Specifications Reviews Parts & Accessories

Overview Details for LMP-1002G-10G-SFP-24

10-Port Industrial PoE+ Light Layer 3 Gigabit Managed Ethernet Switch | with 8*10/100/1000Tx (30W/Port) and 2*1G/10G SFP+ Slots; 12~55VDC Power Input

Antaira’s LMP-1002G-10G-SFP-24 is a 10-port industrial Gigabit PoE+ light layer 3 managed Ethernet switch embedded with 8*10/100/1000Tx Ethernet ports that support IEEE 802.3af/at for a maximum of 30W/port, and 2*1G/10G dual rate SFP+ slots for up to 10 Gigabit fiber connections. It is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, RMON, ModbusTCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.The LMP-1002G-10G-SFP-24 is IP30 rated, DIN-rail mountable, and supports a standard operating temperature range of -40°C to 60°C that uniquely runs on an input voltage of 12-55 VDC. It also provides high EFT and ESD protection for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS, or any other outdoor or harsh environment.

Features

Supports 8*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port
Supports 2*1G/10G SFP+ Slots
Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
Supports IPv4/IPv6, and DHCP Option 66/67/82
Supports Modbus/TCP Protocol for Device Management and Monitoring
Supports IGMP v1/v2 for Multicast Traffic Filtering
IEEE802.1Q VLAN for Easy Network Planning
Power Input: 12-55VDC in 6-Pin Terminal Block
Reverse Polarity Protection
IP30 Protection
DIN-Rail or Wall Mountable
Operating Temperature Range - STD: -40° to 60°C
5-Year Warranty

Included

1 - DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
1 - RJ45 to DB9 serial Console cable
LMP-1002G-10G-SFP-24
Quick Installation Guide
RJ45 dust cover set
Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity: 5% to 95%, (non-condensing)
Certifications: FCC, CE, UL 61010-1, 61010-2-201
Configuration: Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
Dimensions: 54 x 142 x 99 mm (W x H x D)
EMI: FCC Part 15 Subpart B Class A;CE EN55032/EN61000-6-4 Class A
EMS: CE EN55035/EN61000-6-2 Class A:;IEC61000-4-2,3,4,5,6,8
Ethernet Port: 8*10/100/1000BaseTx (30W/Port);Auto Negotiation Speed, Full/Half duplex mode, and auto MDI/MDIX connection
Flow Control: IEEE 802.3x for full duplex mode, back pressure for half duplex mode
Free Fall: IEC60068-2-32
Green: RoHS Compliant
Housing: Metal, IP30 Protection
IGMP Group: 1024
Input Voltage: 12-55VDC Redundant Power Inputs
Jumbo Frame: 9.6Kbytes
L2 Switching: Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2
L3 Switching: DHCP option82, static routes
MAC Table Size: 16K
Mounting: DIN-Rail Mounting, Wall Mounting
Network Cable: 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000Base-TX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
Network Redundancy: STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
Operating Temperature: STD: -40°C to 60°C
Overload Current Protection: Present
Packet Buffer: 8 Mbits
Poe Pin Assignment: V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, Mode A)
PoE Power Budget: 90W@12VDC;180W@24VDC;240W@36-55VDC
Power Connection: 1 Removable 6-Contact Terminal Block
Power Saving: ActiPHY, PerfectReach
Processing Type: Store and Forward
Protocols: IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone /Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power Lost Warning, Relay Trigger
QoS: 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
Relay Contact: 24VDC, 1A resistive
Reverse Polarity Protection: Present
RS232 Serial Console: 1*RS232 in RJ45 connector with console cable, baud rate 115.2Kbps, 8, N, 1
SFP Port: 2*1G/10G SFP+ slots
Shock: IEC60068-2-27
Storage Temperature: -40°C to 85°C
Switching Architecture: Back-Plane (Switching Fabric): 56Gbps
System / Diagnostics: Dual Image Protection, PING, PING6
System Power Consumption: 15.5W
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port;14,880,000pps for 10 Gigabit Ethernet Port
Vibration: IEC60068-2-6
VLAN Groups: 4095
Warranty: 5 Years
Wavelength: Depends on SFP modules
Weight: Unit: 2.29 lbs;Shipping: 2.95 lbs
