LMP-1002G-10G-SFP | 10-Port Industrial PoE+ Light Layer 3 Gigabit Managed Ethernet Switch | with 8*10/100/1000Tx (30W/Port) and 2*1G/10G SFP+ Slots | Antaira
10-Port Industrial PoE+ Light Layer 3 Gigabit Managed Ethernet Switch, with 8*10/100/1000Tx (30W/Port) and 2*1G/10G SFP+ Slots

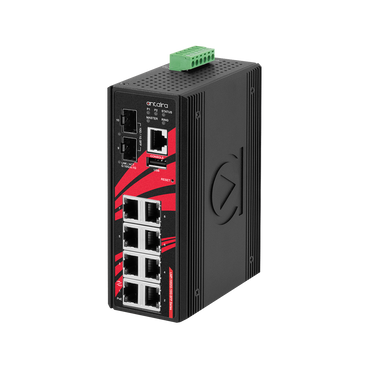

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMP-1002G-10G-SFP
Overview Details for LMP-1002G-10G-SFP
10-Port Industrial PoE+ Light Layer 3 Gigabit Managed Ethernet Switch | with 8*10/100/1000Tx (30W/Port) and 2*1G/10G SFP+ Slots
Antaira’s LMP-1002G-10G-SFP is a 10-port industrial gigabit PoE+ light layer 3 managed Ethernet switch embedded with 8*10/100/1000Tx Ethernet ports that support IEEE 802.3af/at for a maximum of 30W/port, and 2*1G/10G dual rate SFP+ slots for up to 10 Gigabit fiber connections. It is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, RMON, ModbusTCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.The LMP-1002G-10G-SFP is IP30 rated, DIN-rail mountable, and supports a standard operating temperature range of -40°C to 60°C. It also provides high EFT and ESD protection for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS, or any other outdoor or harsh environment.Features
- Supports 8*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port
- Supports 2*1G/10G SFP+ Slots
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Supports IPv4/IPv6, and DHCP Option 66/67/82
- Supports Modbus/TCP Protocol for Device Management and Monitoring
- Supports IGMP v1/v2 for Multicast Traffic Filtering
- IEEE802.1Q VLAN for Easy Network Planning
- Power Input: 48~55VDC in 6-Pin Terminal Block
- Reverse Polarity Protection
- IP30 Protection
- DIN-Rail and Wall Mountable
- Operating Temperature Range - STD: -40° to 60°C
- 5-Year Warranty
Included
- DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- LMP-1002G-10G-SFP
- Quick Installation Guide
- RJ45 dust cover set
- RJ45 to DB9 serial Console cable
- Wall mounting bracket set with screws
Specifications
- Ambient Relative Humidity
- 5% to 95%, (non-condensing)
- Certifications
- FCC, CE, UL 61010-1, 61010-2-201
- Configuration
- Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
- Dimensions
- 54 x 142 x 99 mm (W x H x D)
- EMI
- FCC Part 15 Subpart B Class A;CE EN55032/EN61000-6-4 Class A
- EMS
- CE EN55035/EN61000-6-2 Class A:;IEC61000-4-2,3,4,5,6,8
- Ethernet Port
- 8*10/100/1000BaseTx (30W/Port) Auto Negotiation Speed, Full/Half duplex mode, and auto MDI/MDIX connection
- Flow Control
- IEEE 802.3x for full duplex mode, back pressure for half duplex mode
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal, IP30 Protection
- IGMP Group
- 1024
- Input Voltage
- 48-55VDC Redundant Power Inputs
- Jumbo Frame
- 9.6Kbytes
- L2 Switching
- Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2
- L3 Switching
- DHCP option82, static routes
- MAC Table Size
- 16K
- Mounting
- DIN-Rail Mounting, Wall Mounting
- Network Cable
- 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000Base-TX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
- Network Redundancy
- STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
- Operating Temperature
- STD: -40°C to 60°C
- Overload Current Protection
- Present
- Packet Buffer
- 8Mbits
- Poe Pin Assignment
- V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, Mode A)
- PoE Power Budget
- 240W, 48-55VDC
- Power Connection
- 1 Removable 6-Contact Terminal Block
- Power Saving
- ActiPHY, PerfectReach
- Processing Type
- Store and Forward
- Protocols
- IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone /Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power Lost Warning, Relay Trigger
- QoS
- 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
- Relay Contact
- 24VDC, 1A resistive
- Reverse Polarity Protection
- Present
- RS232 Serial Console
- 1*RS232 in RJ45 connector with console cable, baud rate 115.2Kbps, 8, N, 1
- SFP Port
- 2*1G/10G SFP+ slots
- Shock
- IEC60068-2-27
- Storage Temperature
- -40°C to 85°C
- Switching Architecture
- Back-Plane (Switching Fabric): 56Gbps
- System / Diagnostics
- Dual Image Protection, PING, PING6
- System Power Consumption
- 15.5W
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port;14,880,000pps for 10 Gigabit Ethernet Port
- Vibration
- IEC60068-2-6
- VLAN Groups
- 4095
- Warranty
- 5 Years
- Wavelength
- Depends on SFP modules
- Weight
- Unit: 2.29 lbs;Shipping: 2.95 lbs
