LMP-0800G-T | 8-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch | w/8*10/100/1000Tx Gigabit Ports | EoT -40~75C. | Antaira

8-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch, w/8*10/100/1000Tx Gigabit Ports, EoT -40~75C.

Brand: AntairaSKU: LMP-0800G-T
Antaira | LMP-0800G-T

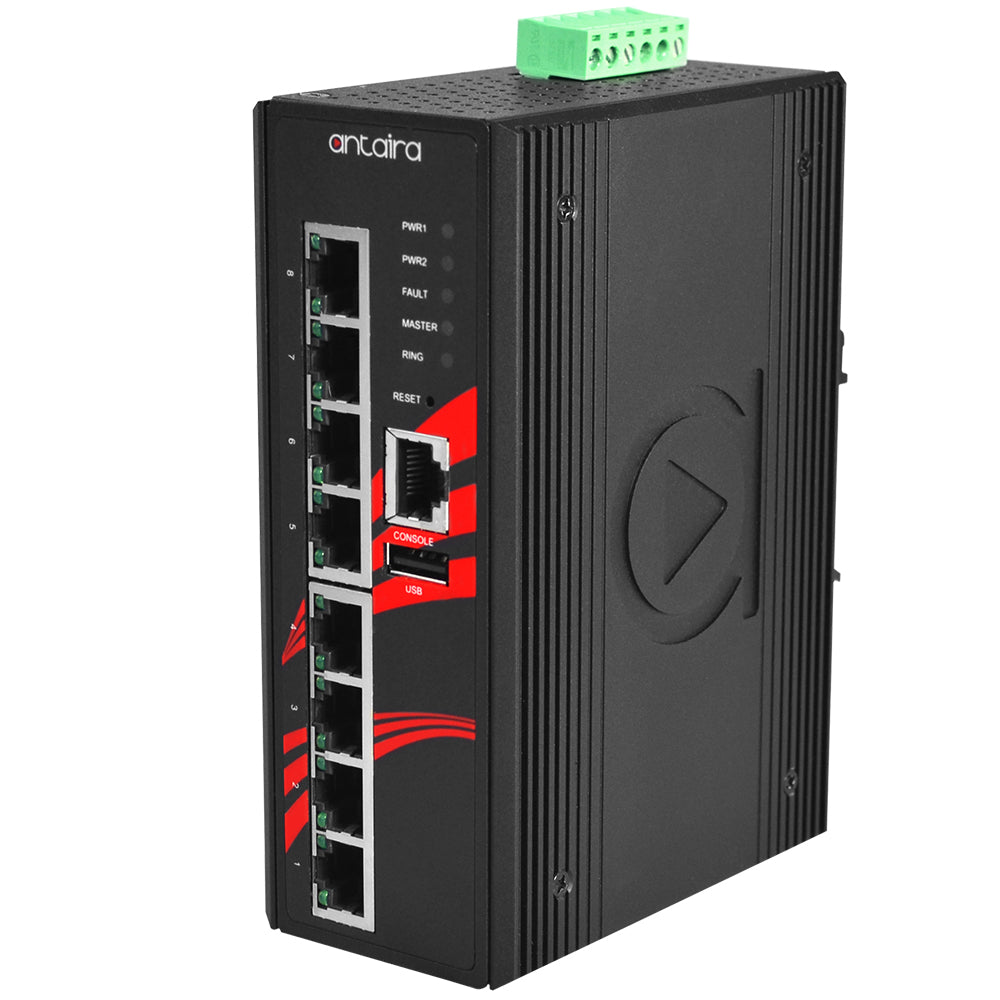

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMP-0800G-T

Overview Details for LMP-0800G-T

8-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch | w/8*10/100/1000Tx Gigabit Ports | EoT -40~75C.

Antaira’s LMP-0800G-T is a 8-port industrial Light Layer 3 managed Ethernet switch that is embedded with 8*10/100/1000Tx Gigabit ports. All 8 ports on this unit are PoE+ IEEE 802.3af/at compliant, capable of providing up to 30 watts of PoE power at each RJ45 port. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. The LMP-0800G-T has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -40°C to 75°C. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, Security, or any other outdoor or harsh environment.

Features

  • Supports 8*10/100/1000Tx Gigabit Ports
  • Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
  • Configuration: Web Console, Serial, CLI Command
  • Supports IGMP v1/v2
  • Network Broadcast Storm Protection
  • Supports QoS (IEEE 802.1p) and CoS/ToS
  • Supports IEEE 802.1Q VLAN, SNMP v1/v2c/v3
  • Redundant Power Input Design 48~55VDC + Built-in relay output for Port Break Alarm
  • System Warning Setting for Automatic Warning through E-mail
  • DIN-Rail and Wall Mount Support
  • Operating Temperature Range - EOT: -40° to 75° C
  • 5-Year Warranty

Included

  • 1 - DC cable –18 AWG to DC Jack 5.5x2.1mm
  • 1 - LMP-0800G-T
  • 1 - RJ45 to DB9 Serial Console Cable
  • 2 - Wall Mounting Brackets and Screws

Specifications

Certifications
FCC, CE, UL 61010-1, UL 61010-2-201
Configuration
Web Console, Telnet, CLI
Configuration backup
1*USB 2.0
Dimensions
54 x 142 x 99 mm
EMI
FCC Class A
EMS
IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4
Ethernet Port
8*10/100/1000BaseTx (PSE: 30W/Port) auto negotiation speed, Full/Half duplex mode, and auto MDI connection
Green
RoHS Compliant
Housing / Mounting
Metal IP30 rated / DIN-Rail & Wall-Mount (Included)
IGMP
Up to 256 Groups
Input Voltage
48~55VDC Redundant Input / 1 removable 6-contact terminal block
Jumbo Frame
9.6K
Operating Temperature
EOT: -40 to 75°C
Power Consumption
15 Watts (no PD included);;215 Watts @48VDC; 255 Watts @51~55VDC
Protection
Power line EFT: 2,000VDC; Ethernet ESD: 6,000VDC;Overload Current, Power Reverse Polarity, CPU Watchdog
Protocols
IGMPv1/v2, SNMPv1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
Serial Console
1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
Shock/Vibration/Free Fall
IEC60068-2-27 / 2-6 / 2-32
Standards
IEEE 802.3 / 802.3u / 802.3ab / 802.3x / 802.3ad / 802.3at/af;IEEE 802.1d / 802.1w / 802.1s / 802.1Q / 802.1X / 802.1p;ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
VLAN
1 ~ 4094
Warranty
5 Year
Weight
Unit: 2.5 lbs; Shipping: 3.0 lbs
