Details for LMP-0702G-SFP-bt-V2

7-Port Industrial Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch | with 4*10/100/1000Tx (90W/Port) | 1*10/100/1000Tx | and 2*100/1000 SFP Slots; 48~55VDC Power Input

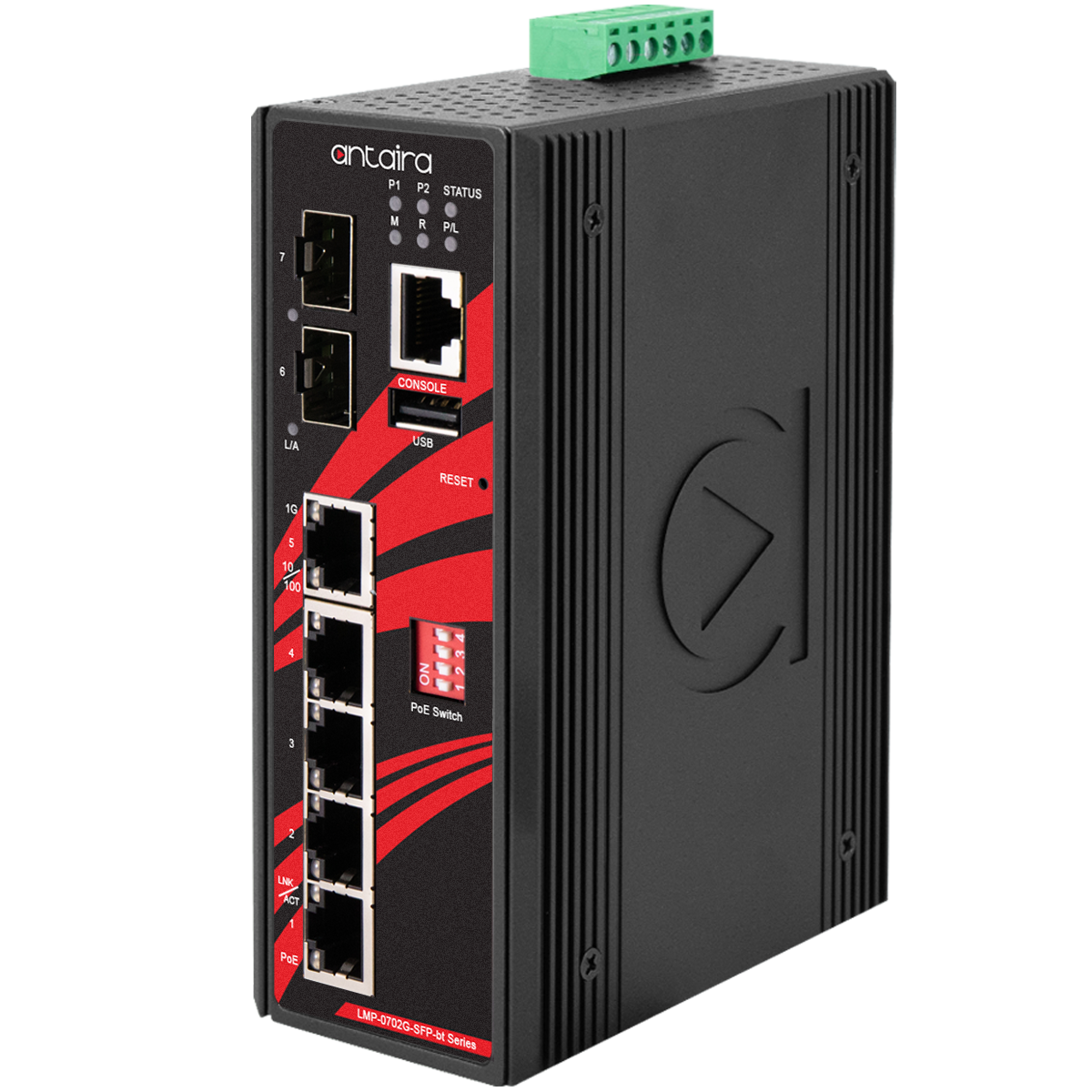

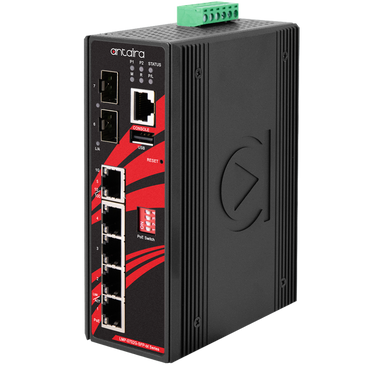

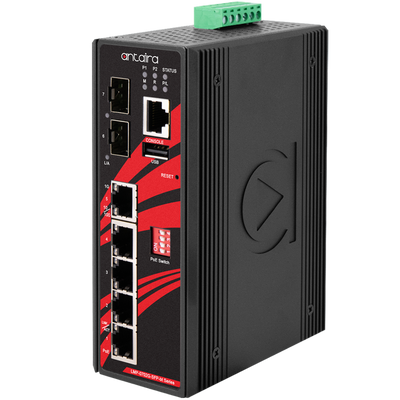

Antaira Technologies’ LMP-0702G-SFP-bt-V2 is a 7-port industrial Gigabit PoE++ managed Ethernet switch embedded with 4*10/100/1000 Tx Ethernet ports that support IEEE802.3at/af/bt for a maximum of 90W/port, 1*10/100/1000Tx Gigabit Ethernet port, and 2*100/1000 dual rate SFP slots for fiber connection. The LMP-0702G-SFP-V2 is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.The LMP-0702G-SFP-bt-V2 is IP30 rated and DIN-rail mountable. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.

Features

Supports 4*10/100/1000Tx IEEE 802.3at/af/bt Compliant with 90W/Port, 1*10/100/1000Tx RJ45 Port, and 2*100/1000 SFP Slots
Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS v1/v2 (Recovery Time <50ms)
Configuration: Web Console, Telnet, CLI Command
Supports IGMP v1/v2/v3, up to 1024 Groups
Supports QoS (IEEE802.1p) and CoS/ToS
Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
Power Input: 48~55VDC in 6-Pin Terminal Block
Reverse Polarity Protection
IP30 Protection
DIN-Rail or Wall Mountable
Operating Temperature Range – STD: -10°C to 65°C
5-Year Warranty

Included

DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
Dust cover set
LMP-0702G-SFP-bt-V2
Quick Installation Guide
RJ45 to DB9 serial console cable
Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity: 5% to 95%, (non-condensing)
Certifications: FCC, CE, UL 61010-1, UL 61010-2-201
Configuration: Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
Dimensions: 54 x 142 x 99 mm (W x H x D)
EMI: FCC Part 15 Subpart B Class A,;CE EN55032/EN61000-6-4 Class A
EMS: CE EN55035/EN61000-6-2 Class A,;IEC61000-4-2,3,4,5,6,8
Ethernet Port: 5*10/100/1000Base-TX (90W/Port for Port 1~4 only), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control: IEEE 802.3x flow control, back pressure flow control
Free Fall: IEC60068-2-32
Green: RoHS Compliant
Housing: Metal, IP30 protection
IGMP Group: 1024
Input Voltage: 48~55VDC Redundant Input;(53~55VDC power input for BT PoE PSE)
Jumbo Frame: 9.6Kbytes
L2 Switching: Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP v1/v2/v3 snooping, MLD snooping, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, ARP, MEP, G.8032 v1/v2
L3 Switching: DHCP option82, static routes
LED Indicators: System: Power 1, Power 2, Master, Ring, Status, and PoE Load;Ethernet Ports: Speed/Link/Active;PoE: On-connected to PD devices;SFP: Link/Active
MAC Table Size: 8K
Memory Buffer: 4Mbits
Mounting: DIN-Rail mounting, Wall mounting
Network Cable: 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000Base-T: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
Network Redundancy: STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
Operating Temperature: -10°C to 65°C
Overload Current Protection: Present
Poe Pin Assignment: V-, V-, V+, V+ for pin 1, 2, 3, 6;V+, V+, V-, V- for pin 4, 5, 7, 8;*Support Modes: Mode A, Mode B, 4-Pair Mode
PoE Power Budget: 240W @48~55VDC
Power Connection: 1 removable 6-contact terminal block
Power Saving: ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Priority Queues: 8
Processing Type: Store and Forward
Protocols: IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone / Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power Lost Warning, Relay Trigger
QoS: 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
Relay Contact: 24VDC, 1A resistive
Reverse Polarity Protection: Present
RS232 Serial Console: 1*RS232 in RJ45
SFP Port: 2*100/1000 SFP Slots
Shock: IEC60068-2-27
Storage Temperature: -40°C to 85°C
Switching Architecture: Back-Plane (Switching Fabric): 14Gbps
System / Diagnostics: Dual Image Protection, PING, PING6
System Power Consumption: 10.8W
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Vibration: IEC60068-2-6
VLAN Groups: 4095
Warranty: 5 Years
Weight: Unit: 2.29 lbs;Shipping: 3.01 lbs
