LMP-0602-ST-M-T-V2 | 6-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch | with 4*10/100Tx (30W/Port) and 2*100Fx Multi-Mode 2Km ST connectors | 48~55VDC Power Input; Version 2 Hardware | EOT: -40~75C | Antaira
6-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch, with 4*10/100Tx (30W/Port) and 2*100Fx Multi-Mode 2Km ST connectors, 48~55VDC Power Input; Version 2 Hardware, EOT: -40~75C

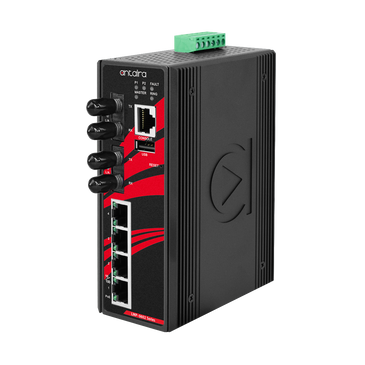

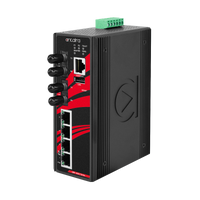

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMP-0602-ST-M-T-V2
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LMP-0602-ST-M-T-V2 Documents
Overview
Details for LMP-0602-ST-M-T-V2
6-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch | with 4*10/100Tx (30W/Port) and 2*100Fx Multi-Mode 2Km ST connectors | 48~55VDC Power Input; Version 2 Hardware | EOT: -40~75C
Antaira’s LMP-0602-ST-M-T-V2 is a 6-port industrial PoE+ Light Layer 3 managed Ethernet switch that is embedded with 4*10/100Tx Ethernet ports that support IEEE802.3af/at for a maximum of 30 watts per port and 2*100Fx (ST connector) fiber ports with multi-mode (2Km).The LMP-0602-ST-M-T-V2 is a fully manageable industrial Ethernet switch that supports the standard light layer 3 Ethernet configurable settings with a pre-loaded web console. This switch is IP30 rated and DIN-rail mountable and provides operating temperature range model in EOT: -40°C to 75°C. It also provides a high EFT and ESD protection for any industrial networking application in factory automation, ITS, power/utility, water/wastewater treatment plants, or any outdoor or harsh environment.Version 2 hardware is compatible with the latest light layer 3 firmware which permits static routes between VLANs.Features
- Supports 4*10/100Tx IEEE 802.3at/af Compliant with 30W/Port, and 2*100Fx (ST) Fiber Ports
- Fiber Supports: Multi-Mode in 2Km
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Configuration: Web Console, Serial, CLI Command
- Supports IGMP v1/v2, up to 256 Groups
- Supports QoS (IEEE802.1p) and CoS/ToS
- Supports IEEE802.1Q VLAN, SNMP v1/v2c
- PoE Ping Alarm Function for PoE Ports Power Recycle
- System Warning Setting for Automatic Warning through E-Mail
- Redundant Power Input Design – 48~55VDC
- Housing: Metal IP 30 rated; DIN-Rail and Wall Mount Support
- Operating Temperature - EOT: -40~75C
- 5-Year Warranty
Included
- 1 - DC Cable - 18 AWG with DC jack 5.5x2.1mm
- 1 - LMP-0602-ST-M-V2
- 1 - Quick Installation Guide
- 1 - RJ45 dust cover set
- 1 - RJ45 to DB9 Serial Console cable
- 1 - Set of wall mounting brackets and screws
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Certifications
- FCC, CE, UL 61010-1, 61010-2-201
- Configuration
- Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
- Dimensions
- 54 x 142 x 99 mm (W x H x D)
- EMI
- FCC Part 15 Subpart B Class A;CE EN55032/EN61000-6-4 Class A
- EMS
- CE EN55035/EN61000-6-2 Class A;IEC61000-4-2,3,4,5,6,8
- Ethernet Port
- 4*10/100Base-TX with PoE+ (30W/Port), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Fiber Port
- 2*100Base-FX ST type connector multimode
- Flow Control
- IEEE 802.3x flow control, back pressure flow control
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- IGMP Group
- 1024
- Input Voltage
- 48~55VDC Redundant Input
- Jumbo Frame
- 9.6Kbytes
- L2 Switching
- Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMPv2 snooping, MLD snooping, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snoo(more...)
- L3 Switching
- DHCP option82, static routes
- LED Indicators
- System: Power 1, Power 2, Master, Ring, Fault;Ethernet Ports: Speed/Link/Active;Fixed Fiber: Link/Active
- MAC Table Size
- 8K
- Memory Buffer
- 4Mbits
- Mounting
- DIN-Rail mounting, Wall mounting
- Network Cable
- 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m)
- Network Redundancy
- STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
- Operating Temperature
- -40°C to 75°C
- Overload Current Protection
- Present
- Poe Pin Assignment
- V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, Mode A)
- PoE Power Budget
- 120W@48~55VDC
- Power Connection
- 1 removable 6-contact terminal block
- Power Saving
- ActiPHY, PerfectReach, IEEE 802.3az EEE power management
- Priority Queues
- 8
- Processing Type
- Store and Forward
- Protocols
- IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone / Daylight Saving, NTP client, RMON, sFlow, Loop (more...)
- QoS
- 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
- Relay Contact
- 24 VDC, 1A resistive
- Reverse Polarity Protection
- Present
- RS232 Serial Console
- 1*RS232 in RJ45
- Shock
- IEC60068-2-27
- Storage Temperature
- -40°C ~ 85°C
- Switching Architecture
- Back-Plane (Switching Fabric): 1.2Gbps
- System / Diagnostics
- Dual Image Protection, PING, PING6
- System Power Consumption
- 7.5W
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port
- Vibration
- IEC60068-2-6
- VLAN Groups
- 4095
- Warranty
- 5 Years
- Weight
- Unit: 1.9 lbs;Shipping: 2.7 lbs
