LMP-0600-V2 | 6-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch | with 4*10/100Tx (30W/Port) and 2*10/100Tx | 48~55VDC Power Input; Version 2 Hardware | Antaira

6-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch, with 4*10/100Tx (30W/Port) and 2*10/100Tx, 48~55VDC Power Input; Version 2 Hardware

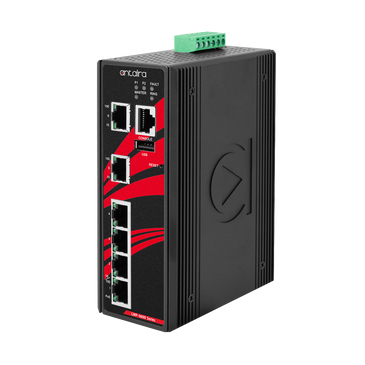

Antaira | LMP-0600-V2
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMP-0600-V2

Documents and manuals

Overview

Details for LMP-0600-V2

6-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch | with 4*10/100Tx (30W/Port) and 2*10/100Tx | 48~55VDC Power Input; Version 2 Hardware

Antaira Technologies’ LMP-0600-V2 is a 6-port industrial PoE+ managed Ethernet switch embedded with 4*10/100Tx Ethernet ports that support IEEE802.3af/at for a maximum of 30W/port. The LMP-0600-V2 is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.The LMP-0600-V2 industrial Ethernet switch is IP30 rated and DIN-rail mountable. There are also a operating temperature model for a standard temperature range (STD: -10°C to 70°C). It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.The Version 2 hardware on the industrial switch is compatible with the latest Light Layer 3 firmware which permits static routes between VLANs.

Features

  • Supports 4*10/100Tx IEEE 802.3af/at Compliant with 30W/Port
  • Supports Network Redundancy: STP/RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
  • Supports IPv4/IPv6, and DHCP Option 66/67/82
  • Supports Modbus/TCP Protocol for Device Management and Monitoring
  • Configuration: Web Console, Telnet, CLI Command
  • IGMP v1/v2 for Multicast Traffic Filtering
  • QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
  • Power Input: 48~55VDC in 6-Pin Terminal Block
  • Reverse Polarity Protection
  • IP30 Protection
  • DIN-Rail or Wall Mountable
  • Operating Temperature Range – STD: -10°C to 70°C
  • 5-Year Warranty

Included

  • 1 - DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
  • 1 - LMP-0600-V2
  • 1 - Quick Installation Guide
  • 1 - RJ45 dust cover set
  • 1 - RJ45 to DB9 serial Console cable
  • 1 - Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity
5 to 95%, (non-condensing)
Certifications
FCC, CE, UL 61010-1, 61010-2-201
Configuration
Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
Dimensions
54 x 142 x 99 mm (W x H x D)
EMI
FCC Part 15 Subpart B Class A;CE EN55032/EN61000-6-4 Class A
EMS
CE EN55035/EN61000-6-2 Class A,;IEC61000-4-2,3,4,5,6,8
Ethernet Port
6*10/100Base-TX w/4PoE+ (30W/Port), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control
IEEE 802.3x flow control, back pressure flow control
Free Fall
IEC60068-2-32
Green
RoHS Compliant
Housing
Metal, IP30 protection
IGMP Group
1024
Input Voltage
48~55VDC Redundant Input
Jumbo Frame
9.6Kbytes
L2 Switching
Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMPv2 snooping, MLD snooping, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, ARP, MEP, G.8032 v1/v2
L3 Switching
DHCP option82, static routes
LED Indicators
System: Power 1, Power 2, Master, Ring, Fault;Ethernet Ports: Speed/Link/Active
MAC Table Size
8K
Memory Buffer
4Mbits
Mounting
DIN-Rail mounting, Wall mounting
Network Cable
10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m)
Network Redundancy
STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
Operating Temperature
-10°C to 70°C
Overload Current Protection
Present
PoE Port Pin Assignment
V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI Alternative A)
PoE Power Budget
120W @48~55VDC
Power Connection
1 removable 6-contact terminal block
Power Saving
ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Priority Queues
8
Processing Type
Store and Forward
Protocols
IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone / Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power Lost Warning, Relay Trigger
QoS
802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
Relay Contact
24 VDC, 1A resistive
Reverse Polarity Power Protection
Present
Serial Console
1*RS232 in RJ45 connector with console cable, baud rate 115,200bps,8,N,1
Shock
IEC60068-2-27
Storage Temperature
-40° ~ 85°C
Switching Architecture
Back-Plane (Switching Fabric): 1.2Gbps
System Diagnostics
Dual Image Protection, PING, PING6
System Power Consumption
7.5W
Transfer Rate
14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port
Vibration
IEC60068-2-6
VLAN Groups
4095
Warranty
5 Years
Weight
Unit: 1.9 lbs;Shipping: 2.7 lbs
