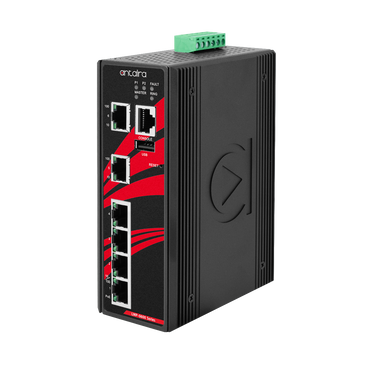

LMP-0600-24-V2 | 6-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch | with 4*10/100Tx (30W/Port) and 2*10/100Tx | 12~55VDC Power Input; Version 2 Hardware | Antaira

6-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch | with 4*10/100Tx (30W/Port) and 2*10/100Tx | 12~55VDC Power Input; Version 2 Hardware

Antaira Technologies’ LMP-0600-24-V2 is a 6-port industrial PoE+ managed Ethernet switch embedded with 4*10/100Tx Ethernet ports that support IEEE802.3af/at for a maximum of 30W/port. The LMP-0600-24-V2 is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.The LMP-0600-24-V2 is IP30 rated and DIN-rail mountable. There are also a standard operating temperature model for a standard temperature range (STD: -10°C to 70°C). It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.Version 2 hardware is compatible with the latest Light Layer 3 firmware which permits static routes between VLANs.

Features

• Supports 4*10/100Tx IEEE 802.3af/at Compliant with 30W/Port
• Supports Network Redundancy: STP/RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
• Supports IPv4/IPv6, and DHCP Option 66/67/82
• Supports Modbus/TCP Protocol for Device Management and Monitoring
• Configuration: Web Console, Telnet, CLI Command
• IGMP v1/v2 for Multicast Traffic Filtering
• QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
• Power Input: 12~55VDC in 6-Pin Terminal Block
• Reverse Polarity Protection
• IP30 Protection
• DIN-Rail or Wall Mountable
• Operating Temperature Range – STD: -10°C to 70°C
• 5-Year Warranty

Included

• 1 - DC cable - 18 AWG & DC jack 5.5 x 2.1mm
• 1 - LMP-0600-24-V2
• 1 - Quick Installation Guide
• 1 - RJ45 dust cover set
• 1 - RJ45 to DB9 Serial Console cable
• 1 - Wall mounting bracket set with screws
