5-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch with 4*10/100Tx (30W/Port) | and 1*100Fx Single Mode 30Km - V2 Hardware Version

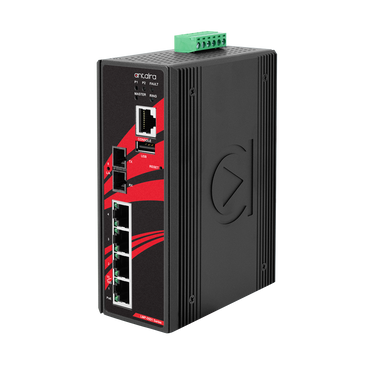

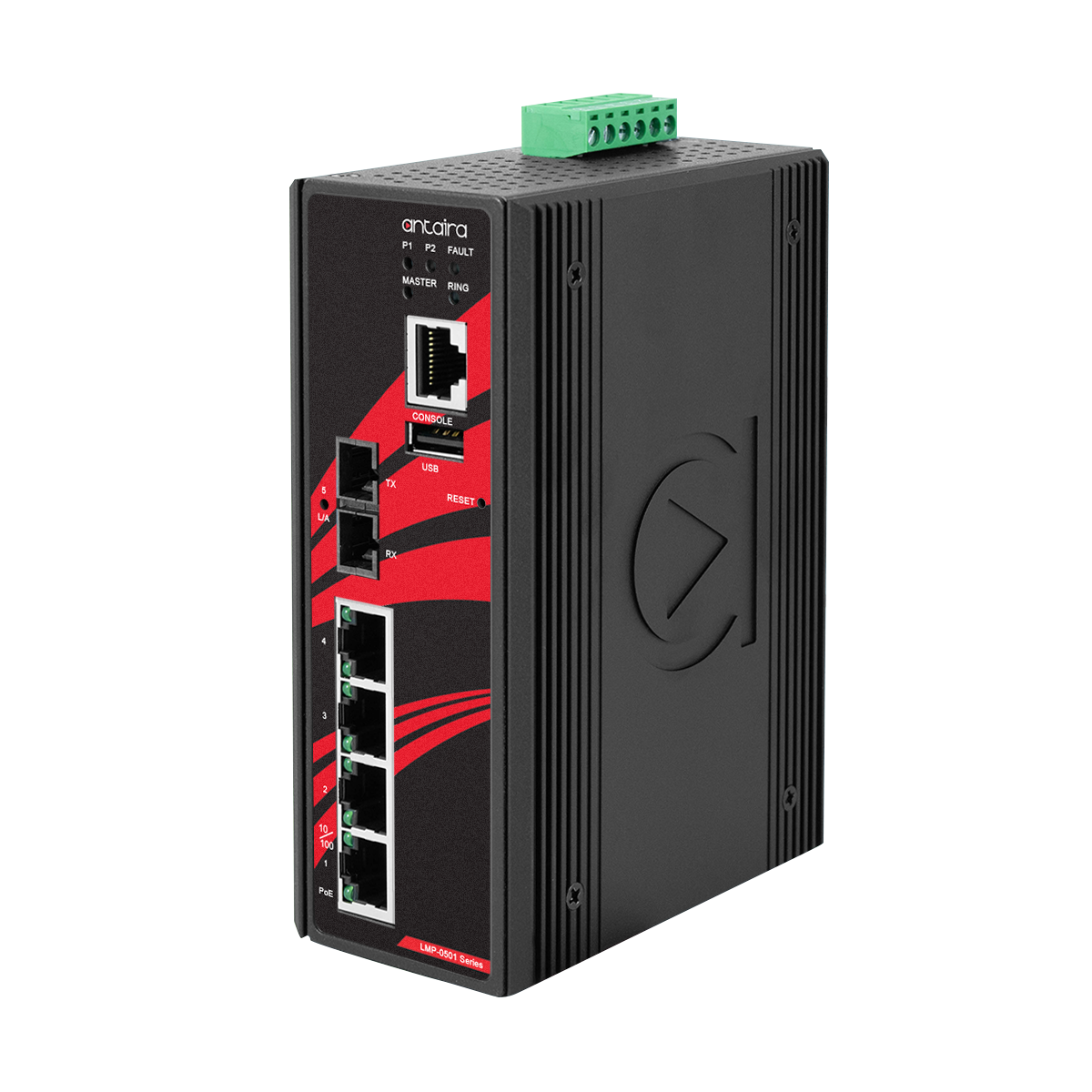

Antaira's LMP-0501-V2 series is a 5-port industrial PoE+ Light Layer 3 managed Ethernet switch that is embedded with 4*10/100Tx Ethernet ports that support IEEE802.3at/af for a maximum of 30 watts per port, and 1*100Fx (SC or ST connector) fiber port with optional versions for multi-mode (2Km) and single-mode (30Km).LMP-0501 series is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software, and supports a user friendly web console interface for easy configuration. This product series is IP30 rated, DIN-rail mountable, and has two wide operating temperature models for either a standard temperature range ( STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, and any other outdoor or harsh environment.

Features

• Supports 4*10/100Tx IEEE 802.3at/af Compliant with 30W/Port, and 1*100Fx (SC) Fiber Port
• Fiber Supports: Single Mode 30Km
• Network Redundancy Support: RSTP/MSTP, and TG.8032 ERPS (Recovery Time <50ms)
• Configuration: Web Console, Telnet, CLI Command
• Supports IGMP v1/v2, up to 256 Groups
• Supports QoS (IEEE802.1p) and CoS/ToS
• Supports IEEE802.1Q VLAN, SNMP v1/v2c
• PoE Ping Alarm Function for PoE Ports Power Recycle
• System Warning Setting for Automatic Warning through E-Mail
• Redundant Power Input Design – 48~55VDC
• Housing: Metal IP30 Rated; DIN-Rail and Wall Mount Support
• Operating Temperature - STD: -10°C to 70°C
• 5-Year Warranty
