5-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switches w/4*10/100Tx (30W/Port), and 1*100Fx Multi-Mode 2Km

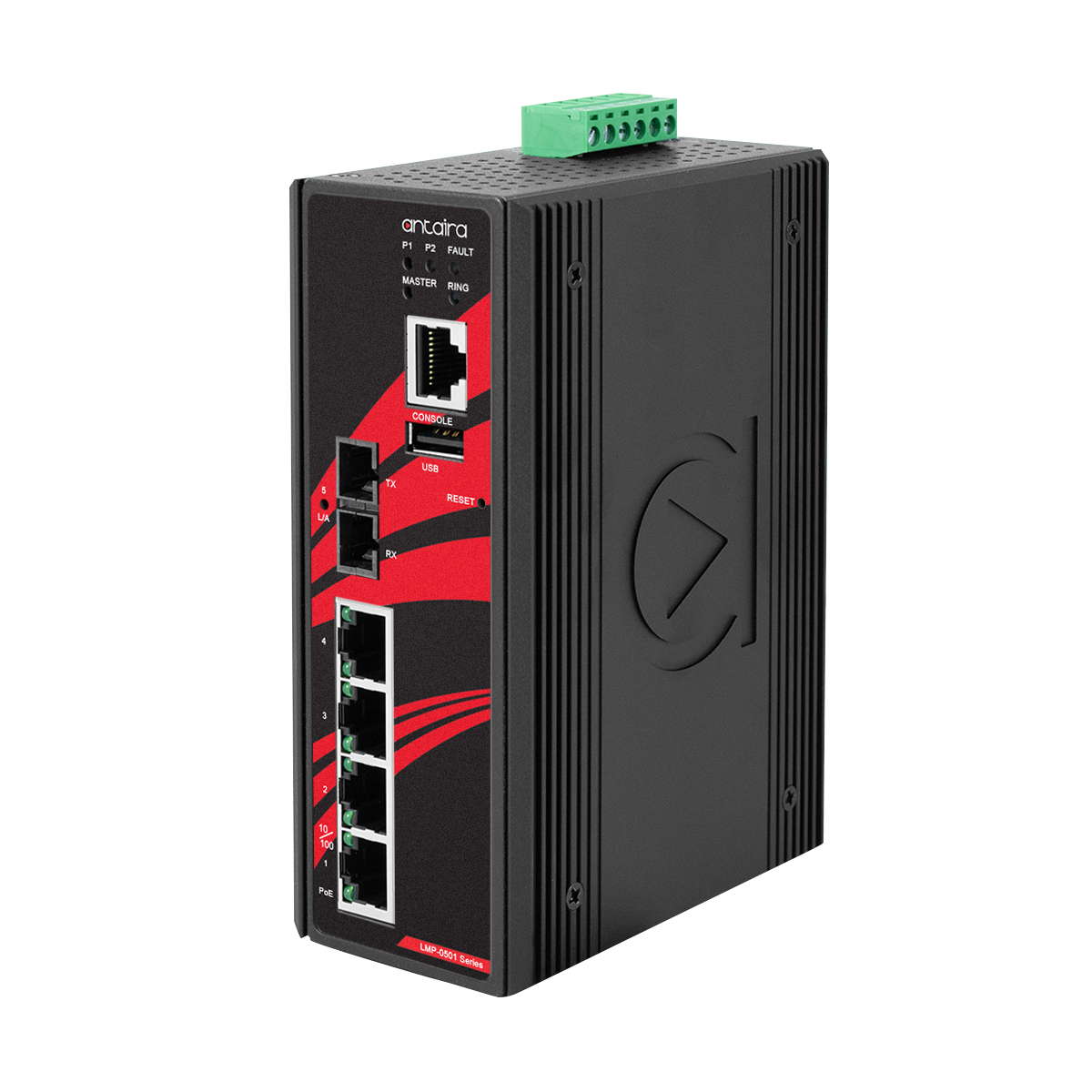

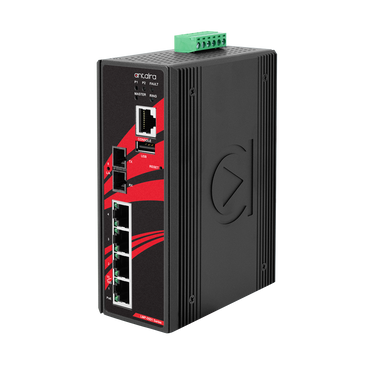

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMP-0501-M-V2
Overview Details for LMP-0501-M-V2
5-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switches w/4*10/100Tx (30W/Port) | and 1*100Fx Multi-Mode 2Km
Antaira’s LMP-0501-V2 series is a 5-port industrial PoE+ Light Layer 3 managed Ethernet switch that is embedded with 4*10/100Tx Ethernet ports that support IEEE802.3at/af for a maximum of 30 watts per port, and 1*100Fx (SC or ST connector) fiber port with optional versions for multi-mode (2Km) and single-mode (30Km).LMP-0501 series is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software, and supports a user friendly web console interface for easy configuration. This product series is IP30 rated, DIN-rail mountable, and has two wide operating temperature models for either a standard temperature range ( STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, and any other outdoor or harsh environment.Features
- Supports 4*10/100Tx IEEE 802.3at/af Compliant with 30W/Port, and 1*100Fx (SC) Fiber Port
- Fiber Supports: Multi-Mode in 2Km
- Network Redundancy Support: RSTP/MSTP, and TG.8032 ERPS (Recovery Time <50ms)
- Configuration: Web Console, Telnet, CLI Command
- Supports IGMP v1/v2, up to 256 Groups
- Supports QoS (IEEE802.1p) and CoS/ToS
- Supports IEEE802.1Q VLAN, SNMP v1/v2c
- PoE Ping Alarm Function for PoE Ports Power Recycle
- System Warning Setting for Automatic Warning through E-Mail
- Redundant Power Input Design – 48~55VDC
- Housing: Metal IP30 Rated; DIN-Rail and Wall Mount Support
- Operating Temperature - STD: -10~70C
- 5-Year Warranty
Included
- 1 - DC cable - 18 AWG & DC jack 5.5 x 2.1mm
- 1 - LMP-0501-M-V2
- 1 - Quick Installation Guide
- 1 - RJ45 dust cover set
- 1 - RJ45 to DB9 Serial Console cable
- 1 - Wall mounting bracket set with screws
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Back Plane
- Non-blocking
- Certifications
- FCC, CE
- Configuration
- Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
- Dimensions
- 54 x 142 x 99 mm (W x H x D)
- EMI
- FCC Part 15 Subpart B Class A,;CE EN55022/EN61000-6-4 Class A
- EMS
- CE EN55024/EN61000-6-2 Class A,;IEC61000-4-2,3,4,5,6,8
- Ethernet Port
- 4*10/100Base-TX, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Fiber Port
- 100Base-FX SC Multimode
- Flow Control
- IEEE 802.3x flow control, back pressure flow control
- Free Fall / Shock / Vibration
- IEC60068-2-32/IEC60068-2-27/IEC60068-2-6
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- IGMP
- 1024
- Input Voltage
- 48~55VDC Redundant Input
- Jumbo Frame
- 9.6Kbytes
- L2 Switching
- Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMPv2 snooping, MLD snooping, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, ARP, MEP, G.8032 v1/v2
- L3 Switching
- DHCP option82, static routes
- LED Indicators
- System: Power 1, Power 2, Master, Ring, Fault;Ethernet Ports: Speed/Link/Active;Fixed Fiber: Link/Active
- MAC Table Size
- 8K
- Management
- IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone /Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, USB configuration backup/restore, Power lost warning, relay trigger
- Memory Buffer
- 4Mbits
- Mounting
- DIN-Rail; Wall-mount (optional)
- Network Cable
- 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m)
- Network Redundancy
- STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2(<50ms)
- Operating Temperature
- STD: -10° to 65°C
- Optical Cable
- Multi-mode cable - 50/125um or 62.5/125um, SC connector
- Overload Current Protection
- Present
- Poe Pin Assignment
- V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI Alternative A)
- PoE Power Output
- 25W @ 48VDC (per PoE port);30W @ 51~55VDC (per PoE port)
- Power Connection
- 1 removable 6-contact terminal block
- Power Consumption
- 7.5W
- Power Saving
- ActiPHY, PerfectReach, IEEE 802.3az EEE power management
- Priority Queues
- 8
- Processing Type
- Store and Forward
- QoS
- 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
- Relay Contact
- 24 VDC, 1A resistive
- Reverse Polarity Power Protection
- Present
- Security
- Port-based/Single/Multi 802.1X, ACL (Port/Rate Limiters/ACE), MAC-based Authentication, VLAN assignment, QoS Assignment, Private VLAN, Guest VLAN, RADIUS accounting, TACACS+, IP MAC binding, WEB/CLI authentication, Authorization (15 levels), Port Security Limit Control, ACLs for filtering/policing/port copy, IP source guard, ARP Inspection
- Serial Console
- 1*RS232 in RJ45 connector with console cable, baud rate 115,200bps,8,N,1
- SNMP MIBs & RFC Standards
- RFC 2674 VLAN MIB;IEEE-802.1Q bridge MIB 2008;RFC 2819 RMON (group 1, 2, 3, and 9);RFC 1213 MIB II;RFC 1215 TRAPS;RFC 4188 bridge;RFC 4292 IP forwarding table;RFC 4293 management information base for the Internet Protocol (IP);RFC 5519 multicast group membership discovery;RFC 4668 RADIUS auth. client;RFC 4670 RADIUS accounting;RFC 3635 Ethernet-like;RFC 2863 interface group MIB using SMI v2;RFC 3636 802.3 MAU;RFC 4133 entity MIB v3;RFC 3411 SNMP management frameworks;RFC 3414 user-based security model for SNMPv3;RFC 3415 view-based access control model for SNMP;RFC 2613 SMON – PortCopy;IEEE 802.1 MSTP;IEEE 802.1AB LLDP-MIB (LLDP MIB included in a clause of the STD);IEEE 802.3ad (LACP MIB included in a clause of the STD);IEEE 802.1X (PAE MIB included in a clause of the STD);TIA 1057 LLDP-MED ( MIB is part of the STD)
- Standards
- IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3u 100Base-FX Fiber;IEEE 802.3x Flow Control;IEEE 802.1d STP (Spanning Tree Protocol);IEEE 802.1w RSTP (Rapid Spanning Tree Protocol);IEEE 802.1s MSTP (Multiple Spanning Tree Protocol);ITU-T G.8032 / Y.1344 ERPS v1/v2 (Ethernet Ring Protection Switch);IEEE 802.1Q Virtual Local Area Network (VLAN);IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization;IEEE 802.1X Network Authentication;IEEE 802.1AB Link Layer Discovery Protocol (LLDP);IEEE 802.3ad Link Aggregation (LACP)
- Storage Temperature
- -40°~85°C
- System Diagnostics
- Dual Image Protection, PING, PING6
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port
- VLAN
- 4095
- Warranty
- 5 years
- Wavelength
- 1300/1310 Multimode
- Weight
- Unit: 1.9lbs.; Shipping: 2.7 lbs.
