LMP-0501-M-24-T-V2 | 5-Port Industrial PoE+ Managed Ethernet Switches w/410/100Tx (30W/Port) | and 1100Fx Multi-Mode 2Km | 12~36VDC; EOT: -40~75C | Antaira

5-Port Industrial PoE+ Managed Ethernet Switches w/4*10/100Tx (30W/Port), and 1*100Fx Multi-Mode 2Km, 12~36VDC; EOT: -40~75C

Brand: AntairaSKU: LMP-0501-M-24-T-V2

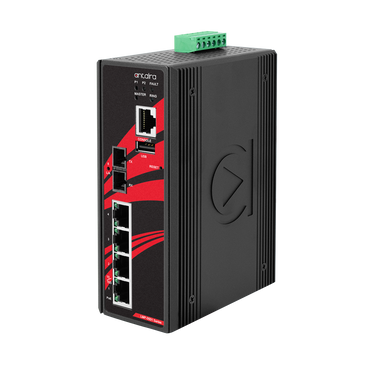

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LMP-0501-M-24-T-V2

Overview & Specifications Reviews Parts & Accessories

Overview Details for LMP-0501-M-24-T-V2

5-Port Industrial PoE+ Managed Ethernet Switches w/4*10/100Tx (30W/Port) | and 1*100Fx Multi-Mode 2Km | 12~36VDC; EOT: -40~75C

Antaira’s LMP-0501-24 series is a 5-port industrial PoE+ managed Ethernet switch that is embedded with 4*10/100Tx Ethernet ports that support IEEE802.3at/af for a maximum of 30 watts per port, and 1*100Fx (SC or ST connector) fiber port with optional versions for multi-mode (2Km) and single-mode (30Km).LMP-0501 series is a fully manageable industrial Ethernet switch with a pre-loaded Layer 2 network management web console that supports a low voltage redundant power input range from 12~36VDC with a voltage booster. This product series is IP30 rated, DIN-rail mountable, and has two wide operating temperature models for either a standard temperature range ( STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, and any other outdoor or harsh environment.

Features

Supports 4*10/100Tx IEEE 802.3at/af Compliant with 30W/Port, and 1*100Fx (SC) Fiber Port
Fiber Supports: Multi-Mode in 2Km
Network Redundancy Support: RSTP/MSTP, and TG.8032 ERPS (Recovery Time <50ms)
Configuration: Web Console, Telnet, CLI Command
Supports IGMP v1/v2, up to 256 Groups
Supports QoS (IEEE802.1p) and CoS/ToS
Supports IEEE802.1Q VLAN, SNMP v1/v2c
PoE Ping Alarm Function for PoE Ports Power Recycle
System Warning Setting for Automatic Warning through E-Mail
Redundant Power Input: 12~36VDC (Voltage Booster)
Housing: Metal IP30 Rated; DIN-Rail and Wall Mount Support
Operating Temperature - EOT: -40~75C
5-Year Warranty

Included

1 - DC cable - 18 AWG & DC jack 5.5 x 2.1mm
1 - LMP-0501-M-24-T-V2
1 - Quick Installation Guide
1 - RJ45 dust cover set
1 - RJ45 to DB9 Serial Console cable
1 - Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity: 5% to 95%, (non-condensing)
Back Plane: Non-blocking
Certifications: FCC, CE
Configuration: Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
Dimensions: 46 x 142 x 99 mm
EMI: FCC Part 15 Subpart B Class A,;CE EN55022/EN61000-6-4 Class A
EMS: CE EN55024/EN61000-6-2 Class A,;IEC61000-4-2,3,4,5,6,8
Ethernet Port: 4*10/100BaseTx auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Port: 1*100Fx SC Multi-mode 2Km
Flow Control: IEEE 802.3x for full duplex mode, back pressure for half duplex mode
Free Fall / Shock / Vibration: IEC60068-2-32/IEC60068-2-27/IEC60068-2-6
Green: RoHS Compliant
Housing: Metal, IP30 protection
IGMP: Up to 256 Groups
Input Voltage: 12 to 36VDC Redundant Input
Jumbo Frame: 9.6Kbytes
L2 Switching: Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMPv2 snooping, MLD snooping, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, ARP, MEP, G.8032 v1/v2
L3 Switching: DHCP option82, static routes
LED Indicators: System: Power 1, Power 2, Master, Ring, Fault;Ethernet Ports: Speed/Link/Active;Fixed Fiber: Link/Active
MAC Table Size: 8K
Management: IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone /Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, USB configuration backup/restore, Power lost warning, relay trigger
Memory Buffer: 4Mbits
Mounting: DIN-Rail Mounting, Wall Mounting
Network Cable: 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable; 100Base-TX: 2-pair UTP/STP Cat. 5 cable. EIA/TIA-568 100-ohm (100m)
Network Redundancy: STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2(<50ms)
Operating Temperature: -40°C to 75°C
Optical Cable: Multimode cable - 50/125um or 62.5/125um
Overload Current Protection: Present
Poe Pin Assignment: V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI Alternative A)
Power Connection: 1 removable 6-contact terminal block
Power Consumption: 7.5W
Power Saving: ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Priority Queues: 8
Processing Type: Store and Forward
QoS: 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
Relay Contact: 24 VDC, 1A resistive
Reverse Polarity Protection: Present
Security: Port-based/Single/Multi 802.1X, ACL (Port/Rate Limiters/ACE), MAC-based Authentication, VLAN assignment, QoS Assignment, Private VLAN, Guest VLAN, RADIUS accounting, TACACS+, IP MAC binding, WEB/CLI authentication, Authorization (15 levels), Port Security Limit Control, ACLs for filtering/policing/port copy, IP source guard, ARP Inspection
Serial Console: 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8, N, 1
SNMP MIBs & RFC Standards: RFC 2674 VLAN MIB;IEEE-802.1Q bridge MIB 2008;RFC 2819 RMON (group 1, 2, 3, and 9);RFC 1213 MIB II;RFC 1215 TRAPS;RFC 4188 bridge;RFC 4292 IP forwarding table;RFC 4293 management information base for the Internet Protocol (IP);RFC 5519 multicast group membership discovery;RFC 4668 RADIUS auth. client;RFC 4670 RADIUS accounting;RFC 3635 Ethernet-like;RFC 2863 interface group MIB using SMI v2;RFC 3636 802.3 MAU;RFC 4133 entity MIB v3;RFC 3411 SNMP management frameworks;RFC 3414 user-based security model for SNMPv3;RFC 3415 view-based access control model for SNMP;RFC 2613 SMON – PortCopy;IEEE 802.1 MSTP;IEEE 802.1AB LLDP-MIB (LLDP MIB included in a clause of the STD);IEEE 802.3ad (LACP MIB included in a clause of the STD);IEEE 802.1X (PAE MIB included in a clause of the STD);TIA 1057 LLDP-MED ( MIB is part of the STD)
Standards: IEEE 802.3 10Tx Ethernet;IEEE 802.3u 100Tx Fast Ethernet;IEEE 802.3x Flow Control for Full Duplex;IEEE 802.3at/af PoE (Power-over-Ethernet);IEEE 802.1d STP (Spanning Tree Protocol);IEEE 802.1w RSTP (Rapid Spanning Tree Protocol);IEEE 802.1s MSTP (Multiple Spanning Tree Protocol);ITU-TG.8032 / Y.1344 ERPS (Ethernet Ring Protection Switch);IEEE 802.1q Virtual LANs (VLAN);IEEE 802.1x Network Authentication;IEEE 802.1ad Stacked VLAN, Q-in-Q;IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization
Storage Temperature: -40°C to 85°C
System Diagnostics: Dual Image Protection, PING, PING6
Transfer Rate: 14,880pps for 10Base-T Ethernet port;148,8800pps for 100Base-T Fast Ethernet port
VLAN: 0~4094
Warranty: 5 Years
Wave length: 1300/1310nm Multimode
Weight: Unit: 1.9lbs.; Shipping: 2.7 lbs..
