LEP-301M-KIT | Industrial IP30 Ethernet Extender | 1km 10/100Mbps Ethernet PoE Extender (1 Pair) | Antaira
Industrial IP30 Ethernet Extender, 1km 10/100Mbps Ethernet PoE Extender (1 Pair)

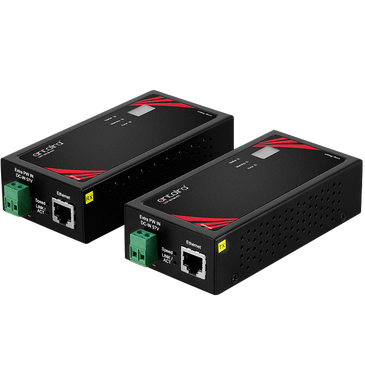

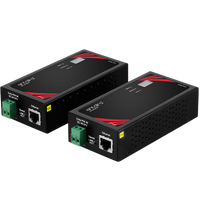

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LEP-301M-KIT
Overview Details for LEP-301M-KIT
Industrial IP30 Ethernet Extender | 1km 10/100Mbps Ethernet PoE Extender (1 Pair)
Antaira Technologies’ LEP-301M-KIT contains both LEP-301M-TX and LEP-301M-RX. The former is a long reach transceiver with one PoE PD Ethernet port and one PoE Long Reach injector port, and the latter is a long reach receiver with one PoE Long Reach Extender port and one PoE PSE Ethernet port.LEP-301M-KIT is greatly beyond 100 meters distance limitation of RJ45 cable. Up to 1km the data and power can be transmitted simultaneously over the UTP cable. This kit is fully compliant with IEEE 802.3, 802.3u, 802.3af/at standards. Operation status can be locally monitored through a set of diagnostic LEDs located in the front and rear panels.Features
- Supports Standard IEEE 802.3af/at PoE output
- Provide IEEE 802.3af/at for the remote PD (powered device)
- Support MDI/MDI-X Auto-Crossover
- Support Auto-Negotiation
- Dual Power Input Design for either PoE (IEEE 802.3af/at), PoE++ (60W), or DC power supply input (54~57V)
- Support Auto & Manual mode configuration for the Ethernet port
- Provide the 7-segment digital LED to display current PoE output and diagnostic ID
- IP30 Protection
- DIN-Rail or Wall Mountable
- Operating Temperature Range: 0° to 60°C
- 5-Year Warranty
Included
- DIN-Rail Kit and Wall-Mount Kit
- One LEP-301M-RX
- One LEP-301M-TX
- Quick Installation Guide
Specifications
- Ambient Relative Humidity
- 5% to 90%, (non-condensing)
- Certifications
- FCC Part 15 Class A, CE
- Dimensions
- 60 x 120 x 32mm
- Dip Switch
- 4-position DIP Switch
- Ethernet Port
- 1*Ethernet In (for LEP-301M-TX): 10/100Base-T RJ45 with PoE power received;1*Long Reach Out (for LEP-301M-TX): RJ45 with PoE power transmitted;1*Ethernet Out (for LEP-301M-RX): 10/100Base-T RJ45 with PoE power transmitted;1*Long Reach In (for LEP-301M-RX): RJ45 with PoE power received
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal, IP30 Protection
- Input Voltage
- 54~57VDC
- LED Indicators
- Link/Act, Speed, Status, Warning, Error, and 7-segment Digital Display
- Mounting
- DIN-Rail, Wall-mount (Optional)
- Operating Temperature
- 0°C to 60°C
- PoE Power Output
- 60W
- Power Connection
- 2-Contact Removal Terminal Block
- Power Consumption
- 2.5W
- Shock
- IEC60068-2-27
- Standards
- IEEE 802.3 Ethernet;IEEE 802.3u Fast Ethernet;IEEE 802.3af/at Power over Ethernet
- Storage Temperature
- -20°C to 60°C
- Switching Architecture
- Store-and-Forward
- Vibration
- IEC60068-2-6
- Warranty
- 5 Years
- Weight
- Unit: 0.64 lb.
