INJ-C201G-bt-100-T | Industrial Gigabit Enhanced PoE++ Injector - 1*10/100/1000Base-T(X) with Enhanced PoE-PSE (100W/Port) and 1*10/100/1000Base-T(X); EOT: -40°C to 75°C | Antaira
Industrial Gigabit Enhanced PoE++ Injector - 1*10/100/1000Base-T(X) with Enhanced PoE-PSE (100W/Port) and 1*10/100/1000Base-T(X); EOT: -40°C to 75°C

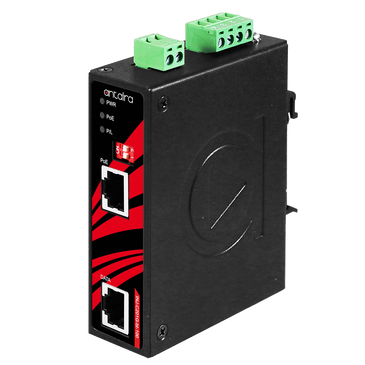

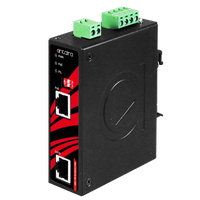

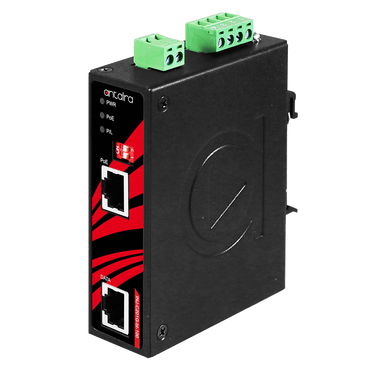

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to INJ-C201G-bt-100-T
Documents and manuals
Antaira INJ-C201G-bt-100-T Documents
Overview
Details for INJ-C201G-bt-100-T
Industrial Gigabit Enhanced PoE++ Injector - 1*10/100/1000Base-T(X) with Enhanced PoE-PSE (100W/Port) and 1*10/100/1000Base-T(X); EOT: -40°C to 75°C
Antaira Technologies’ INJ-C201G-bt-100-T, solve the problem simply by deploying data and power from non-PoEswitch and power input to the PD device. PoE injector is a brilliant low-cost solution for the case that only one side ofdevices is supporting PoE function. Therefore, INJ-C201G-bt-100-T will be your best choice to deal with the lack of PoE function cases.Additionally, INJ-C201G-bt-100-T supports power input from 48VDC to 55VDC, ensuring full 90W PoE output, in compliance with IEEE 802.3bt standard, for better usage in the automation industry. Moreover, for some special application which eagers for more PoE power from the PSE device, this model also supports Enhanced PoE mode to offer up to 100W to the powered device. INJ-C201G-bt-100-T with fan-less design, besides extending surely apply to various industrial applications, works perfectly in polarized temperature from -40°C to 75°C, and undoubtedly becomes your best option in the industrial market.Features
- Supports 10/100/1000Tx for PoE & Data Out
- IEEE 802.3af/at/bt Compliant PoE
- Provide Data and Power over Ethernet to PowerDevice
- Provides up to 100 Watts on PoE Port
- Redundant 48~55VDC Power Inputs Design
- IP30 Protection
- Dip-Switch Setting for PoE Mode and Dual PD Check
- Operating Temperature Range: -40°C to 75°C
- DIN-Rail or Wall Mountable
- 5-Year Warranty
Included
- DC cable - 18 AWG & DC jack 5.5 x 2.1mm
- INJ-C201G-bt-100-T
- Quick Installation Guide
- Wall mounting bracket set with screws
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Certifications
- FCC, CE, UL 61010-1, 61010-2-201
- Compliance
- NEMA TS1/TS2
- Dimensions
- 30 x 95 x 75 mm (W x H x D)
- Dip Switch
- DIP Switch 1: PoE Mode;On - Enhanced / Off (default) - Standard;DIP Switch 2: Dual PD Check;On - Enable / Off (default) - Disable
- EMI
- FCC Part 15 Subpart B Class A,;CE EN55032/EN61000-6-4 Class A
- EMS
- CE EN55035/EN61000-6-2, IEC61000-4-2,3,4,5,6,8
- Ethernet Port
- 2*10/100/1000BaseT(X);(1*Data IN, 1*PoE OUT)
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- Input Voltage
- 48~55VDC Redundant Input
- LED Indicators
- Power, PoE
- Mounting
- DIN-Rail Mounting, Wall Mounting
- Network Cable
- 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000Base-TX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
- Operating Temperature
- -40°C to 75°C
- Overload Current Protection
- Present
- Poe Pin Assignment
- V-, V-, V+, V+, for pin 1, 2, 3, 6;;V+, V+, V-, V-, for pin 4, 5, 7, 8;*Support Modes: Mode A, Mode B, 4-Pair Mode
- PoE Power Budget
- 100Watts
- Power Connection
- 1 removable 4-contact and 2-contact terminal block
- Relay Contact
- 24VDC, 1A resistive
- Reverse Polarity Protection
- Present
- Shock
- IEC60068-2-27
- Standards
- IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3ab 1000BaseT(X);IEEE 802.3af/at/bt Power over Ethernet
- Storage Temperature
- -40°C to 85°C
- System Power Consumption
- 1.6W
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
- Vibration
- IEC60068-2-6
- Warranty
- 5 Years
- Weight
- Unit: 0.80 lb.;Shipping: 1.14 lbs.
