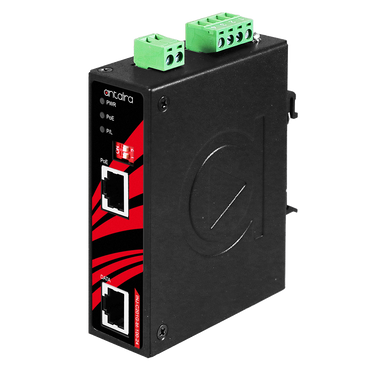

INJ-C201G-bt-100-24-T | Industrial Gigabit Enhanced PoE++ Injector - 1*10/100/1000Base-T(X) with Enhanced PoE-PSE (100W/Port) and 1*10/100/1000Base-T(X) | Booster Version | 9~55VDC; EOT: -40°C to 75°C | Antaira

Industrial Gigabit Enhanced PoE++ Injector - 1*10/100/1000Base-T(X) with Enhanced PoE-PSE (100W/Port) and 1*10/100/1000Base-T(X) | Booster Version | 9~55VDC; EOT: -40°C to 75°C

Antaira Technologies’ INJ-C201G-bt-100-24-T, solve the problem simply by deploying data and power from non-PoE switch and power input to the PD device. PoE injector is a brilliant low-cost solution for the case that only one side of devices is supporting PoE function. Therefore, INJ-C201G-bt-100-24-T will be your best choice to deal with the lack of PoE function cases.INJ-C201G-bt-100-24-T support low voltage 9VDC model with power booster technology, ensuring full 90W PoE output, for better usage in the automation industry. Moreover, for some special application which eagers for more PoE power from the PSE device, this model also supports Enhanced PoE mode to offer up to 100W to the powered device. INJ-C201G-bt-100-24-T with fan-less design, besides extending surely apply to various industrial application, it works perfectly in polarized temperature from -40°C to 75°C, and undoubtedly becomes your best option in the industrial market.

Features

• Supports 10/100/1000Tx for PoE & Data Out
• IEEE 802.3af/at/bt Compliant PoE
• Provide Data and Power over Ethernet to Power Device
• Provides up to 100 Watts on PoE Port
• Provided Power Booster Technologies for Low Voltage Power Inputs
• Redundant 9~55VDC Power Inputs Design
• Dip-Switch Setting for PoE Mode and Dual PD Check
• IP30 Protection
• Operating Temperature Range: -40°C to 75°C
• DIN-Rail or Wall Mountable
• 5-Year Warranty

Included

• DC cable - 18 AWG & DC jack 5.5 x 2.1mm
• INJ-C201G-bt-100-24-T
• Quick Installation Guide
• Wall mounting bracket set with screws
