Industrial Gigabit IEEE 802.3bt Type 4 4PPoE Injector; EOT: -40°C ~ 75°C

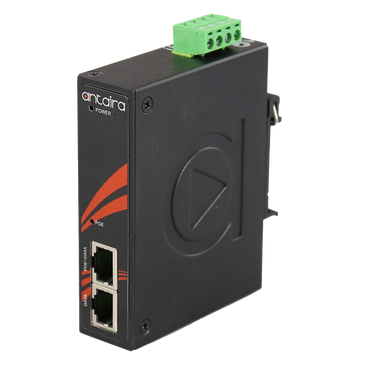

Antaira Technologies’ INJ-C200G-bt-T is an industrial high-power IEEE 802.3bt Type 4 Power over Ethernet (PoE) injector that is backwards compatible with the previous IEEE 802.3af/at standards. By utilizing multiple pairs on the RJ45 cable this industrial-grade PoE injector is capable of providing up to 97 Watts of power to tail end devices. Each port supports 10/100/1000Tx with one port supporting PoE.The INJ-C200G-bt-T is IP30 rated, DIN-rail and wall-mountable, and supports an extended operating temperature range of -40°C to 75°C, making it ideal for outdoor or harsh industrial applications.

Features

• Supports 2*10/100/1000Tx with IEEE 802.3bt Compliant
• IEEE 802.3af/at Backwards Compatible
• Provides Data and Power over Ethernet to Power Device
• Provides up to 97 Watts on PoE port
• Power Input: 53~57VDC in 6-Pin Terminal Block
• IP30 Rugged Metal Case Design
• DIN-Rail or Wall Mountable
• Operating Temperature Range: -40°C to 75°C
• 5-Year Warranty

Included

• DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
• INJ-C200G-bt-T
• Quick Installation Guide
• Wall mounting bracket set with screws
