INJ-C200G-60-24-T-AXI | Industrial IEEE 802.3bt Gigabit Type 3 4PPoE Injector; EOT: -40°C ~ 75°C - This injector is designed for use with Axis Q6055-e MKii PTZ camera requiring High Power (up to 60 watts) | Antaira

Industrial IEEE 802.3bt Gigabit Type 3 4PPoE Injector; EOT: -40°C ~ 75°C - This injector is designed for use with Axis Q6055-e MKii PTZ camera requiring High Power (up to 60 watts)

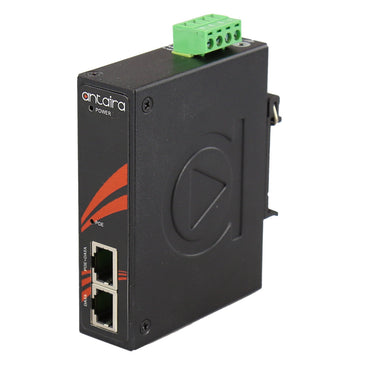

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to INJ-C200G-60-24-T-AXI

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Antaira INJ-C200G-60-24-T-AXI Documents

Product Datasheet Product Manual Quick Installation Guide More Info

Overview

Details for INJ-C200G-60-24-T-AXI

Industrial IEEE 802.3bt Gigabit Type 3 4PPoE Injector; EOT: -40°C ~ 75°C - This injector is designed for use with Axis Q6055-e MKii PTZ camera requiring High Power (up to 60 watts)

Antaira Technologies’ INJ-C200G-60-24-T-AXI is an Industrial high-power PoE/PSE for use with Axis Q6055-e MKii PTZ camera. Each port supports 10/100/1000Tx for both power in and data out. The INJ-C200G-60-24-T-AXI industrial PoE injector is IP30 rated, DIN-rail mountable, and supports an extended temperature of -40°C to 75°C, making it ideal for outdoor or harsh industrial applications.

Features

10/100/1000 Industrial PoE Injector
For use with Axis Q6055-e MKii PTZ camera
Provide data and power over Ethernet to Power Device
Allow Power Input 12-48 VDC
Wide Operating Temperature
DIN-Rail or Wall Mountable
IP30 Protection
5-Year Warranty

Included

INJ-C200G-60-24-T-AXI
Quick Installation Guide
Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity: 5% to 95%, (non-condensing)
Certifications: FCC, CE
Dimensions: 26 x 95 x 75 mm (W x H x D)
EMI: CE, FCC Class A;EN61000-6-4, EN61000-6-2, EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8 (Magnetic Field)
Ethernet Port: 2*10/100/1000BaseT(X);(1*Data IN, 1*PoE OUT)
Free Fall: IEC60068-2-32
Green: RoHS Compliant
Housing: Metal, IP30 protection
Input Voltage: 9~48VDC, Power Inputs
LED Indicators: Power and PoE
Max PoE Power Budget: 60Watts
Mounting: DIN-Rail Mounting, Wall Mounting
Operating Temperature: EOT: -40°C ~ 75°C
Overload Current Protection: Present
Poe Pin Assignment: V+ for pin 3, 4, 5, 6;V- for pin 1, 2, 7, 8
PoE Power Output: 60W max.
Power Connection: 4-pin terminal block
Power Consumption: 5 Watts for system
Reverse Polarity Protection: Present
Shock: IEC60068-2-27
Standards: IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3ab 1000BaseT(X)
Storage Temperature: -40°C ~ 85°C
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Vibration: IEC60068-2-6
Warranty: 5 Years
Weight: Unit: 0.60 lbs.;Shipping: 1.0 lbs.
