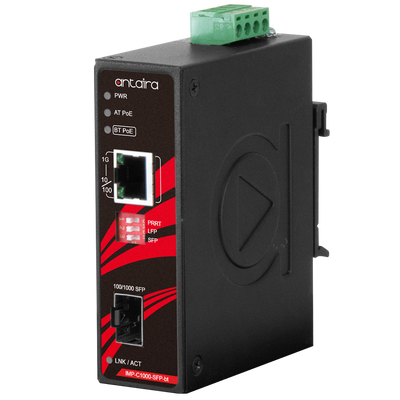

IMP-C1000-SFP-bt-T | Compact Industrial Gigabit IEEE 802.3bt Ethernet-to-Fiber Media Converter | 1*10/100/1000TX (PSE: 90W) to 1*100/1000 SFP Slot; EOT: -40° to 75°C | Antaira

Compact Industrial Gigabit IEEE 802.3bt Ethernet-to-Fiber Media Converter | 1*10/100/1000TX (PSE: 90W) to 1*100/1000 SFP Slot; EOT: -40° to 75°C

Antaira Technologies’ IMP-C1000-SFP-bt-T is a compact IP30 rated gigabit Ethernet-to-Fiber media converter featuring a 10/100/1000TX Ethernet port that supports IEEE 802.3bt high power PoE supplying up to 90 watts. It has a dual-rate 100/1000 SFP slot and is perfectly designed to fulfill industrial applications that require distance extension and high bandwidth capabilities. This small form factor is ideal for saving space in outdoor applications such as factory automation, security, ITS transportation, power/utility, water wastewater treatment plants, and any other extreme ambient weather environments.The IMP-C1000-SFP-bt-T has a built-in PD Remote Reset Technology function (PRRT). The PRRT function allows user to remotely reboot the media converter and reset the connected powered device (PD). The unit also has 48~55VDC redundant power inputs with reverse polarity and overload current protection. This product supports DIN-rail and wall-mountable orientations as well as extended operating temperature range model in EOT: -40°C to 75°C.

Features

• 1-Port 10/100/1000Tx RJ45 with IEEE 802.3bt Compliant PoE
• 1-Port 100/1000Fx SFP Slot
• Link Fault Pass-Through (LFP) Function Support
• PD Remote Reset Technology (PRRT) Function Support
• IP30 Rugged Metal Case Design
• Power Input: 48~55VDC in 4-Pin Terminal Block
• DIN-Rail or Wall Mountable
• Extended Operating Temperature Range: -40°C to 75°C
• 5-Year Warranty

Included

• DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
• IMP-C1000-SFP-bt-T
• Quick Installation Guide
• Wall mounting bracket set with screws
