IMP-C1000-SFP-bt-24 | Compact Industrial Gigabit IEEE 802.3bt Ethernet-to-Fiber Media Converter | 1*10/100/1000TX (PSE: 90W) to 1*100/1000 SFP Slot; 12~55VDC | Antaira
Compact Industrial Gigabit IEEE 802.3bt Ethernet-to-Fiber Media Converter, 1*10/100/1000TX (PSE: 90W) to 1*100/1000 SFP Slot; 12~55VDC

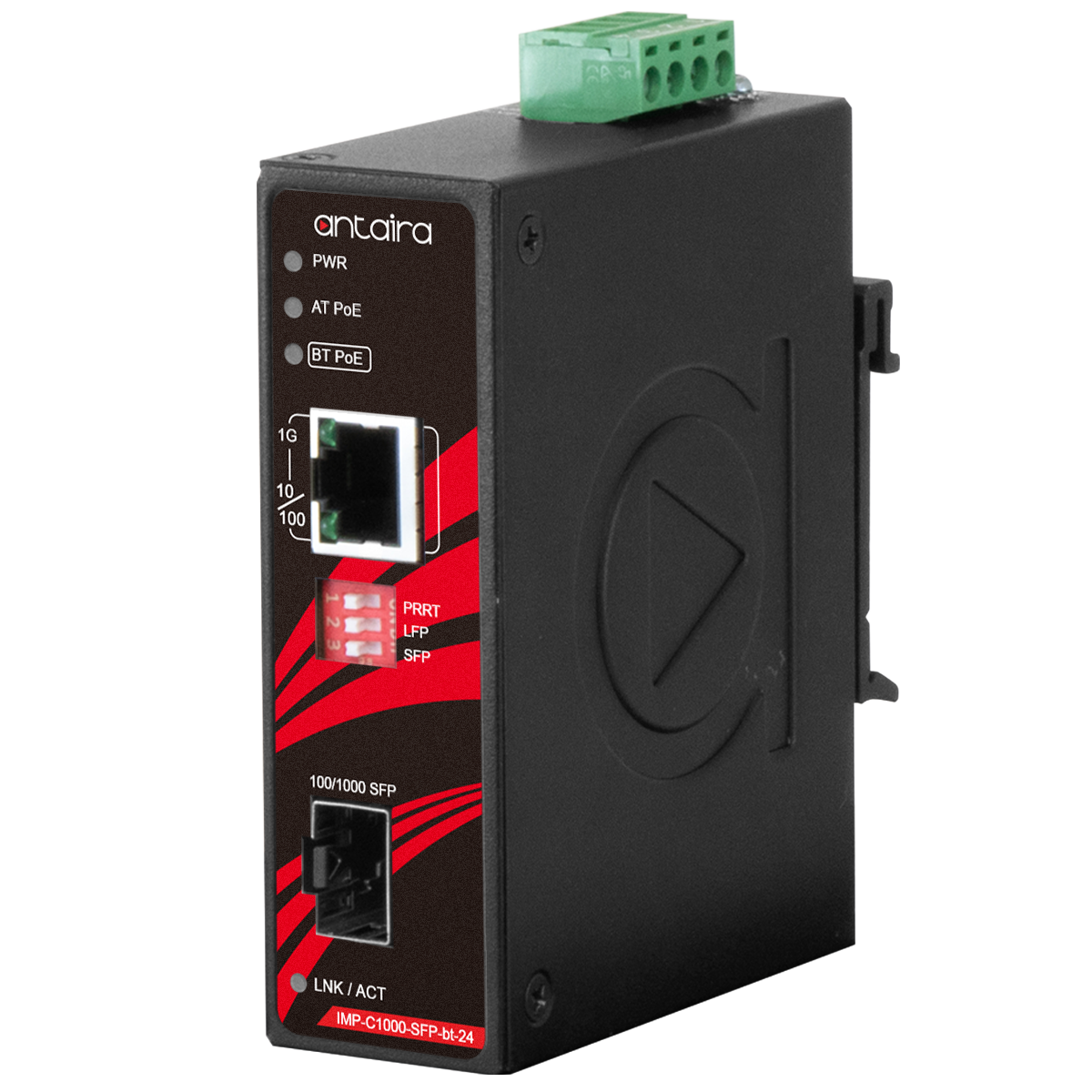

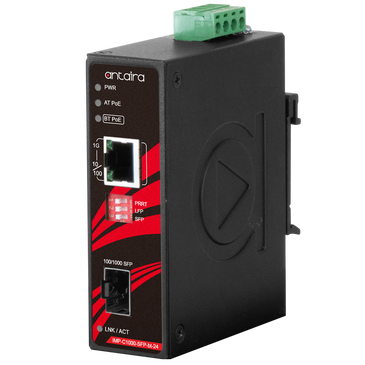

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to IMP-C1000-SFP-bt-24
Overview Details for IMP-C1000-SFP-bt-24
Compact Industrial Gigabit IEEE 802.3bt Ethernet-to-Fiber Media Converter | 1*10/100/1000TX (PSE: 90W) to 1*100/1000 SFP Slot; 12~55VDC
Antaira Technologies’ IMP-C1000-SFP-bt-24 is a compact IP30 rated gigabit Ethernet-to-Fiber media converter featuring a 10/100/1000TX Ethernet port that supports IEEE 802.3bt high power PoE supplying up to 90 watts. It has a dual-rate 100/1000 SFP slot and is perfectly designed to fulfill industrial applications that require distance extension and high bandwidth capabilities. This small form factor is ideal for saving space in outdoor applications such as factory automation, security, ITS transportation, power/utility, water wastewater treatment plants, and any other extreme ambient weather environments.The IMP-C1000-SFP-bt-24 has a built-in PD Remote Reset Technology function (PRRT). The PRRT function allows the user to remotely reboot the media converter and reset the connected powered device (PD). The unit also has 12~55VDC redundant power inputs with reverse polarity and overload current protection. This product supports DIN-rail and wall-mountable orientations as well as standard operating temperature range model in STD: -10°C to 65°C.Features
- 1-Port 10/100/1000Tx RJ45 with IEEE 802.3bt Compliant PoE
- 1-Port 100/1000Fx SFP Slot
- Link Fault Pass-Through (LFP) Function Support
- PD Remote Reset Technology (PRRT) Function Support
- IP30 Rugged Metal Case Design
- Power Input: 12~55VDC in 4-Pin Terminal Block
- DIN-Rail or Wall Mountable
- Standard Operating Temperature Range: -10°C to 65°C
- 5-Year Warranty
Included
- DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- IMP-C1000-SFP-bt-24
- Quick Installation Guide
- Wall mounting bracket set with screws
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Dimensions
- 30 x 95 x 75 mm (W x H x D)
- Dip Switch
- DIP Switch 1: PD Remote Reset Technology (PRRT) Enable/ Disable DIP Switch 2: LFP (Link Fault Pass) Enable/Disable;DIP Switch 3: 1000Mbps / 100Mbps
- EMI
- FCC Part 15 Subpart B Class A,;CE EN55022 Class A
- EMS
- IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field)
- Fiber Port
- 1*100/1000Base-(F)X SFP slots
- Flow Control
- IEEE 802.3x flow control, back pressure flow control
- Free Fall / Shock / Vibration
- IEC60068-2-32/IEC60068-2-27/IEC60068-2-6
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- Input Voltage
- Dual 12-55VDC redundant power inputs
- Jumbo Frame
- 10Kbytes
- LED Indicators
- Power Status LED, IEEE802.3af/at PoE Enabled LED, IEEE 802.3bt PoE Enabled LED Ethernet Ports: On-Link/Flash-data transmitting SFP: Link/Active
- MAC Table Size
- 8K
- Max. PoE Power Budget
- 90 Watts
- Memory Buffer
- 1Mbits
- Mounting
- DIN-Rail Mounting, Wall Mounting
- Operating Temperature
- -10°C ~ 70°C (14°F ~ 158°F)
- PoE Port Pin Assignment
- V-, V-, V+, V+, for pin 1, 2, 3, 6; V+, V+, V-, V-, for pin 4, 5, 7, 8 *Support Modes: Mode A, Mode B, 4-Pair Mode
- Power Connection
- 1*removable 4-contact terminal block
- Power Consumption
- 3 Watts for System
- Processing Type
- Store and Forward
- Protocols
- CSMA/CD
- RJ45 Ports
- 1*10/100/1000 Base-T(X) with IEEE 802.3bt PoE Auto-Negotiation, Full/Half Duplex, Auto-MDI/MDI-X
- Standards
- IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3ab 1000BaseT;IEEE 802.3z 1000Base-X Gigabit Fiber;IEEE 802.3af/at/bt Power over Ethernet
- Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
- Wavelength
- Depends on SFP modules
- Weight
- Unit Weight: TBD, Shipping Weight: TBD
