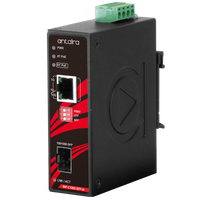

IMP-C1000-SFP-bt | Compact Industrial Gigabit IEEE 802.3bt Ethernet-to-Fiber Media Converter | 1*10/100/1000TX (PSE: 90W) to 1*100/1000 SFP Slot | Antaira

Compact Industrial Gigabit IEEE 802.3bt Ethernet-to-Fiber Media Converter, 1*10/100/1000TX (PSE: 90W) to 1*100/1000 SFP Slot

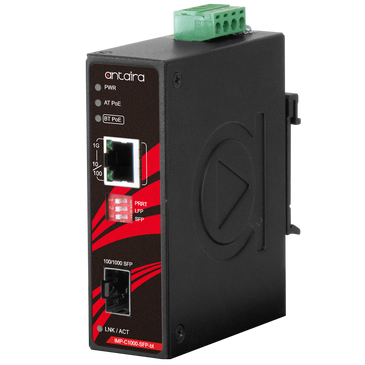

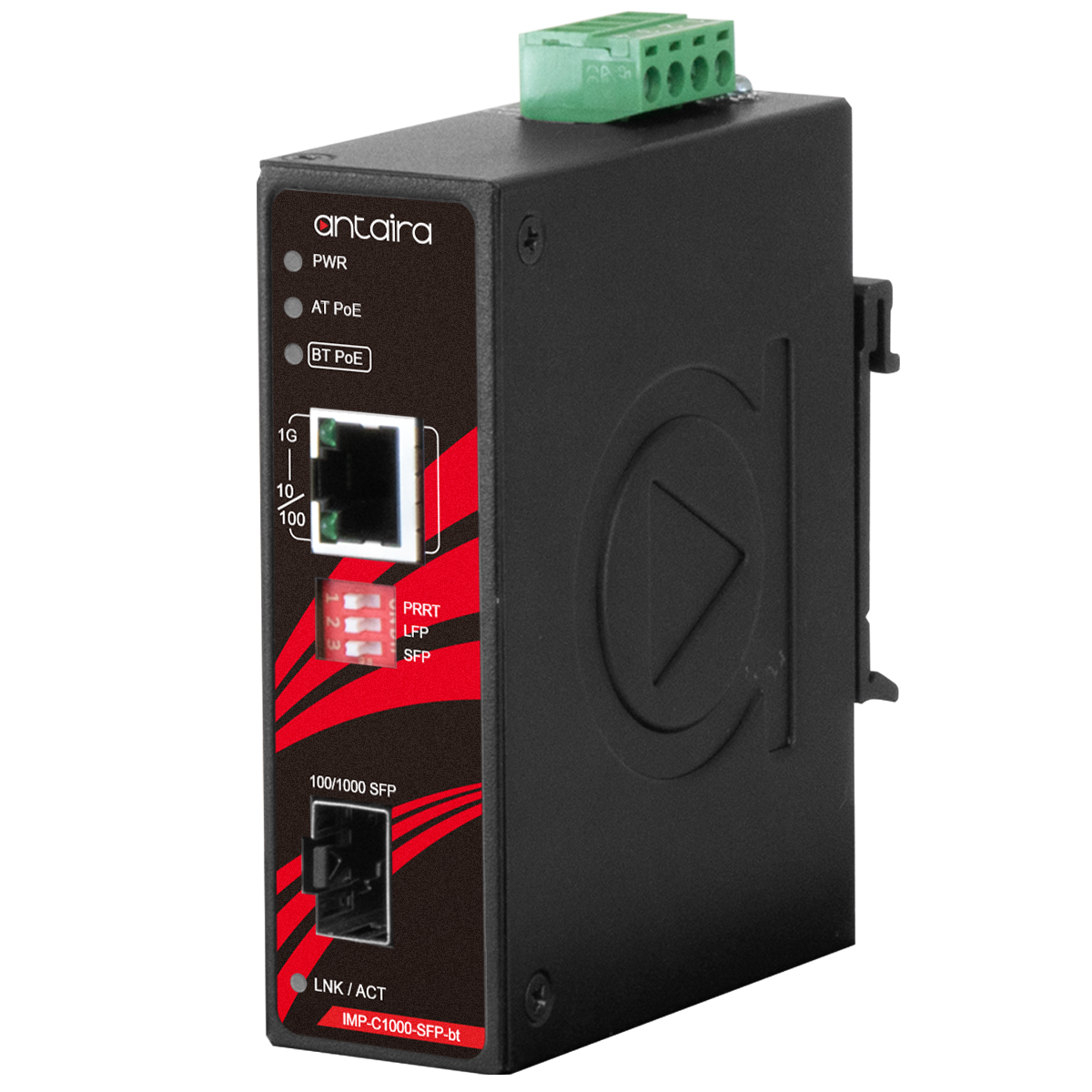

Antaira | IMP-C1000-SFP-bt
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to IMP-C1000-SFP-bt

Documents and manuals

Antaira IMP-C1000-SFP-bt Documents

Overview

Details for IMP-C1000-SFP-bt

Compact Industrial Gigabit IEEE 802.3bt Ethernet-to-Fiber Media Converter | 1*10/100/1000TX (PSE: 90W) to 1*100/1000 SFP Slot

Antaira Technologies’ IMP-C1000-SFP-bt is a compact IP30 rated gigabit Ethernet-to-Fiber media converter featuring a 10/100/1000TX Ethernet port that supports IEEE 802.3bt high power PoE supplying up to 90 watts. It has a dual-rate 100/1000 SFP slot and is perfectly designed to fulfill industrial applications that require distance extension and high bandwidth capabilities. This small form factor is ideal for saving space in outdoor applications such as factory automation, security, ITS transportation, power/utility, water wastewater treatment plants, and any other extreme ambient weather environments.The IMP-C1000-SFP-bt has a built-in PD Remote Reset Technology function (PRRT). The PRRT function allows user to remotely reboot the media converter and reset the connected powered device (PD). The unit also has 48~55VDC redundant power inputs with reverse polarity and overload current protection. This product supports DIN-rail and wall-mountable orientations as well as standard operating temperature range model in STD: -10°C to 65°C.

Features

  • 1-Port 10/100/1000Tx RJ45 with IEEE 802.3bt Compliant PoE
  • 1-Port 100/1000Fx SFP Slot
  • Link Fault Pass-Through (LFP) Function Support
  • PD Remote Reset Technology (PRRT) Function Support
  • IP30 Rugged Metal Case Design
  • Power Input: 48~55VDC in 4-Pin Terminal Block
  • DIN-Rail or Wall Mountable
  • Standard Operating Temperature Range: -10°C to 65°C
  • 5-Year Warranty

Included

  • DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
  • IMP-C1000-SFP-bt
  • Quick Installation Guide
  • Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity
5 to 95%, (non-condensing)
Dimensions
30 x 95 x 75 mm (W x H x D)
Dip Switch
DIP Switch 1: PD Remote Reset Technology (PRRT) Enable/ Disable DIP Switch 2: LFP (Link Fault Pass) Enable/Disable;DIP Switch 3: 1000Mbps / 100Mbps
EMI
FCC Part 15 Subpart B Class A,;CE EN55022 Class A
EMS
IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field)
Fiber Port
1*100/1000Base-(F)X SFP slots
Flow Control
IEEE 802.3x flow control, back pressure flow control
Free Fall / Shock / Vibration
IEC60068-2-32/IEC60068-2-27/IEC60068-2-6
Green
RoHS Compliant
Housing
Metal, IP30 protection
Input Voltage
Dual 48-55VDC redundant power inputs;* Power Supply not less than 53V is recommended
Jumbo Frame
10Kbytes
LED Indicators
Power Status LED, IEEE802.3af/at PoE Enabled LED, IEEE 802.3bt PoE Enabled LED Ethernet Ports: On-Link/Flash-data transmitting SFP: Link/Active
MAC Table Size
8K
Max. PoE Power Budget
90 Watts
Memory Buffer
1Mbits
Mounting
DIN-Rail Mounting, Wall Mounting
Operating Temperature
-10°C ~ 70°C (14°F ~ 158°F)
Poe Pin Assignment
V-, V-, V+, V+, for pin 1, 2, 3, 6; V+, V+, V-, V-, for pin 4, 5, 7, 8 *Support Modes: Mode A, Mode B, 4-Pair Mode
Power Connection
1*removable 4-contact terminal block
Power Consumption
3 Watts for System
Processing Type
Store and Forward
Protocols
CSMA/CD
RJ45 Ports
1*10/100/1000 Base-T(X) with IEEE 802.3bt PoE Auto-Negotiation, Full/Half Duplex, Auto-MDI/MDI-X
Standards
IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3ab 1000BaseT;IEEE 802.3z 1000Base-X Gigabit Fiber;IEEE 802.3af/at/bt Power over Ethernet
Storage Temperature
-40°C ~ 85°C (-40°F ~ 185°F)
Wavelength
Depends on SFP modules
Weight
Unit Weight: TBD, Shipping Weight: TBD
