IMP-C1000-SFP | Compact Industrial Gigabit PoE+ Ethernet-to-Fiber Media Converter | 1*10/100/1000TX (PSE: 30W) to 1*100/1000 SFP Slot | Antaira
Compact Industrial Gigabit PoE+ Ethernet-to-Fiber Media Converter, 1*10/100/1000TX (PSE: 30W) to 1*100/1000 SFP Slot

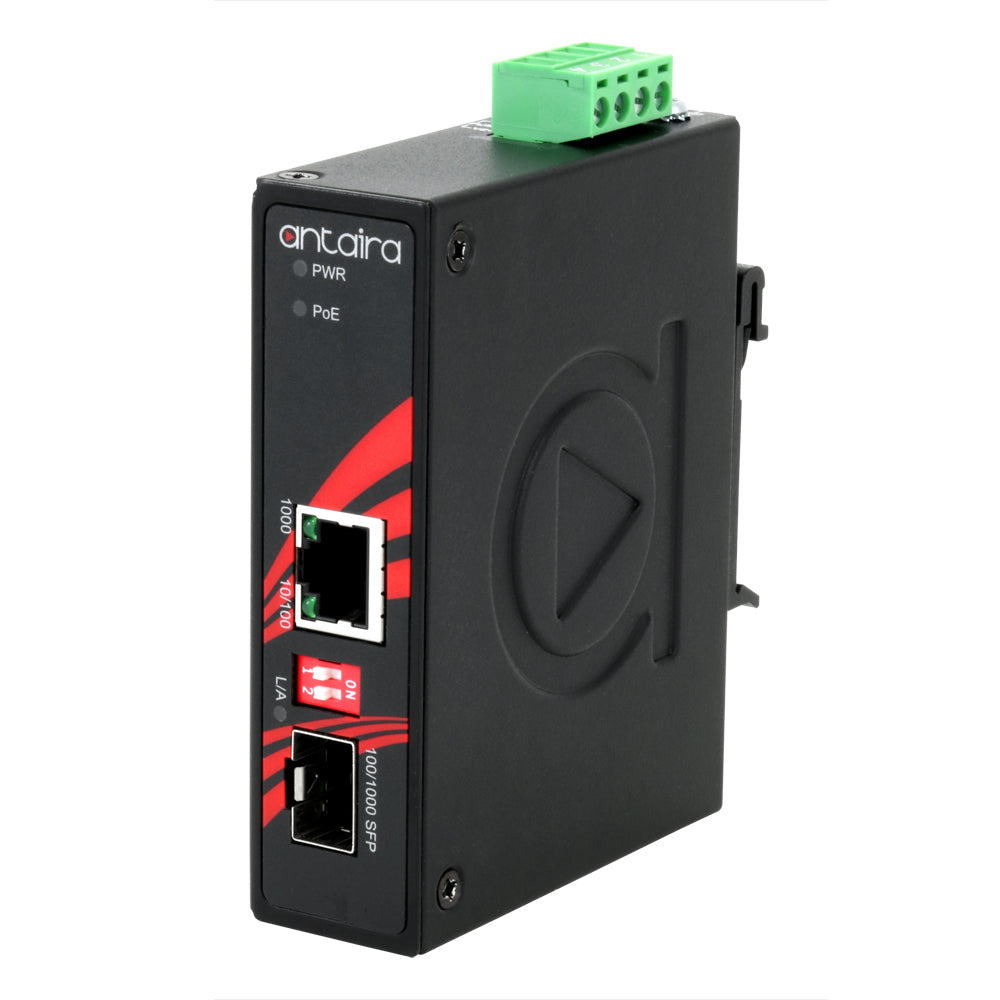

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to IMP-C1000-SFP
Documents and manuals
Antaira IMP-C1000-SFP Documents
Overview
Details for IMP-C1000-SFP
Compact Industrial Gigabit PoE+ Ethernet-to-Fiber Media Converter | 1*10/100/1000TX (PSE: 30W) to 1*100/1000 SFP Slot
Antaira Technologies’ IMP-C1000-SFP series is a compact IP-30 rated gigabit Ethernet-to-Fiber media converter featuring a 10/100/1000TX Ethernet port that supports IEEE 802.3at high power PoE supplying up to 30 watts, and has a dual rate 100/1000 SFP slot. It is perfectly designed to fulfill industrial applications that require distance extension and high bandwidth capabilities. This small form factor is ideal for saving space in outdoor applications such as factory automation, security, ITS transportation, power/utility, water wastewater treatment plants, and any other extreme ambient weather environments.The IMP-C1000-SFP series has a built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF) function with 48~55VDC redundant power inputs with reverse polarity and overload current protection. This product series supports DIN-rail as well as wall mountable orientations and there are two operating temperature range models in STD: -10°C to 70°C and EOT: -40°C to 80°C.Features
- Compact Industrial Grade Design
- UTP to Fiber Media Converter
- Embedded 1 Port PoE Injector Function
- RJ45 Port Support Auto MDI/MDI-X Function
- Auto Negotiation Speed, Half/Full Duplex
- Store-and-Forward Switching Architecture
- Built-in Link Fault Pass-through (LFP) & Far End Fault (FEF)
- Jumbo Frame Support: 10k bytes
- Wide-Range Redundant Power Design
- Redundant Power Input: 48~55VDC
- Power Polarity Reverse Protection
- Overload Current Protection
- DIN-Rail or Wall Mountable
- IP30 Protection
- 5-Year Warranty
Included
- 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
- 1 - IMP-C1000-SFP Industrial Gigabit Media Converter
- 1 - Quick Installation Guide
- 1 - Set of wall mounting brackets and screws
Specifications
- Certifications
- FCC, CE, UL-61010-1, 61010-2-201
- Dimensions
- 26 x 95 x 75 mm (W x H x D)
- Dip Switch
- DIP Switch 1: LFP (Link Fault Pass) Enable/Disable;DIP Switch 2: SFP 100Mbps/1000Mbps
- EMI
- FCC Part 15 Subpart B Class A, CE EN 55022 Class A
- EMS
- IEC61000-4-2 (ESD);IEC61000-4-3 (RS);IEC61000-4-4 (EFT);IEC61000-4-5 (Surge);IEC61000-4-6 (CS);IEC61000-4-8 (Magnetic Field)
- Ethernet Port
- 1*RJ45 Port w/10/100/1000TX with PoE+, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Fiber Port
- 1*100/1000 SFP Slot
- Flow Control
- IEEE 802.3x back pressure flow control
- Free Fall / Shock / Vibration
- IEC60068-2-32 / IEC60068-2-27 / IEC-60068-2-6
- Green
- RoHS Compliant
- Housing / Mounting
- Metal, IP30 protection / DIN-Rail Mounting, Wall Mounting
- Input Voltage
- 48 to 55VDC, Redundant Inputs
- Jumbo Frame
- 10K bytes
- LED Indicators
- Unit: PWR, PoE;TX: Link/Act/Speed;Fiber: Link/Act/Speed
- MAC Table Size
- 8k
- Memory Buffer
- 1Mbits
- Operating Temperature
- STD: -10°C to 70°C;EOT: -40°C to 80°C
- Power Connection
- 1 removable 4-contact terminal block
- Power Consumption
- 3 Watts for System
- Processing Type
- Store and Forward
- Protocols
- CSMA/CD
- Standards
- IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3ab 1000Base-T Gigabit Ethernet;IEEE 802.3u 100Base-FX Fast Fiber;IEEE 802.3z 1000Base-X Gigabit Fiber;IEEE 802.3af/at Power over Ethernet
- Warranty
- 5 Years
- Wavelength
- Depends on SFP modules
- Weight
- Unit: 0.55 lbs.; Shipping: 0.99 lbs.
