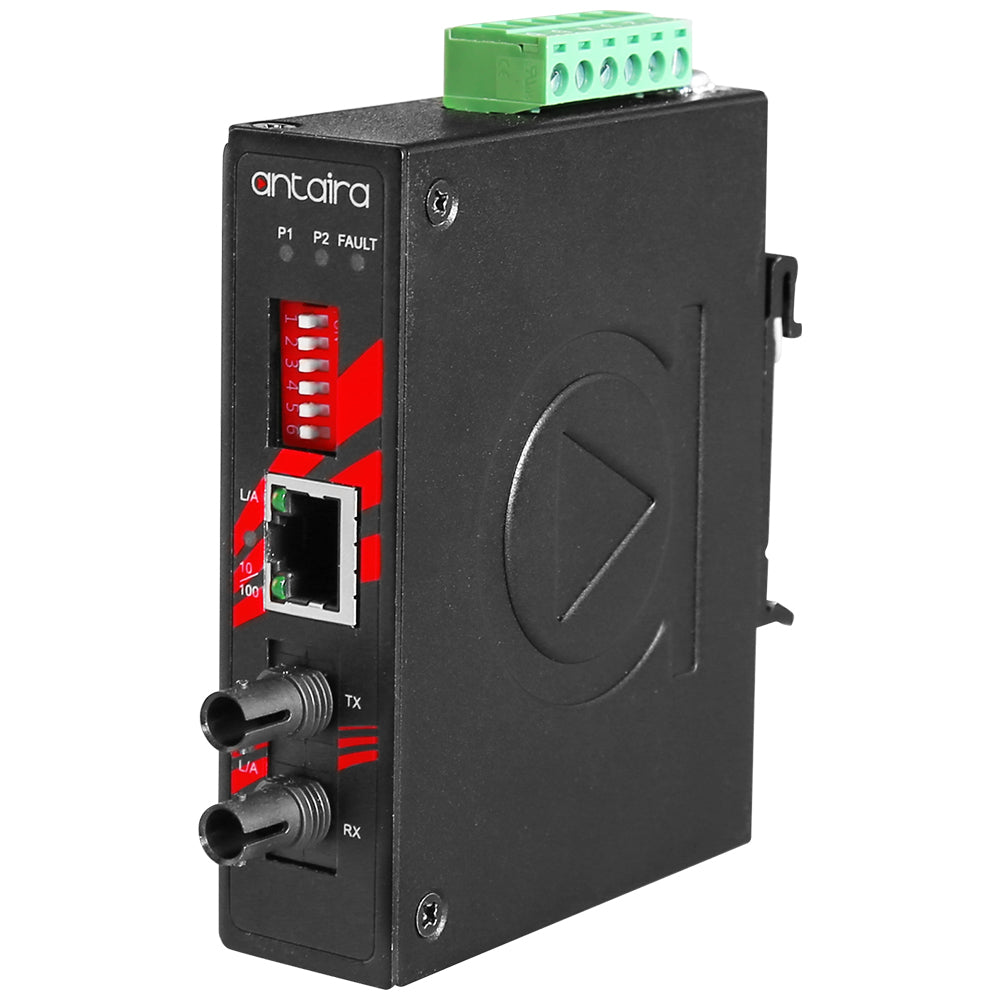

IMP-C100-ST-M | Compact 10/100TX To 100FX Industrial PoE+ Media Converter | Multi-mode 2KM | ST Connector | Antaira

Compact 10/100TX To 100FX Industrial PoE+ Media Converter | Multi-mode 2KM | ST Connector

Antaira Technologies’ IMP-C100-XX series is a compact IP30 rated Ethernet-to-fiber media converter featuring a 10/100TX Ethernet port that supports IEEE 802.3at high power PoE that can supply up to 30 watts, and a fixed fiber interface supporting ST and SC connectors depending on the model. There are Multi-Mode and Single-Mode models to support applications with a variety of fiber distances and types. It is designed to fulfill industrial applications that require fiber optic distance extension while using minimal space.The IMP-C100-XX series has a built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF) function with 48~55VDC redundant power inputs with reverse polarity and overload current protection. This product series supports DIN-Rail as well as wall mountable orientations and provides an operating temperature range model in STD: -10°C to 70°C.

Features

• 1*10/100Tx Fast Ethernet with IEEE 802.3at Compliant PoE+
• 1*100Fx SC/ST Connector (Multi / Single-Mode)
• RJ45 Port Support Auto MDI / MDI-X Function
• Auto Negotiation Speed, Half / Full Duplex
• Store-and-Forward Switching Architecture
• Built-in Link Fault Pass Through (LFP)
• Built-in Far End Fault (FEF)
• Wide-Range Redundant Power Design
• Redundant Power Input: 48~55VDC
• Power Polarity Reverse Protection
• Overload Current Protection
• DIN-Rail or Wall Mountable
• IP30 Protection
• 5-Year Warranty

Included

• 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
• 1 - IMP-C100-ST-M
• 1 - Quick Installation Guide
• 1 - Set of wall mounting brackets and screws
