IMP-C100-M | Compact 10/100TX To 100FX Industrial PoE+ Media Converter | Multi-Mode 2KM | SC Connector | Antaira
Compact 10/100TX To 100FX Industrial PoE+ Media Converter, Multi-Mode 2KM, SC Connector

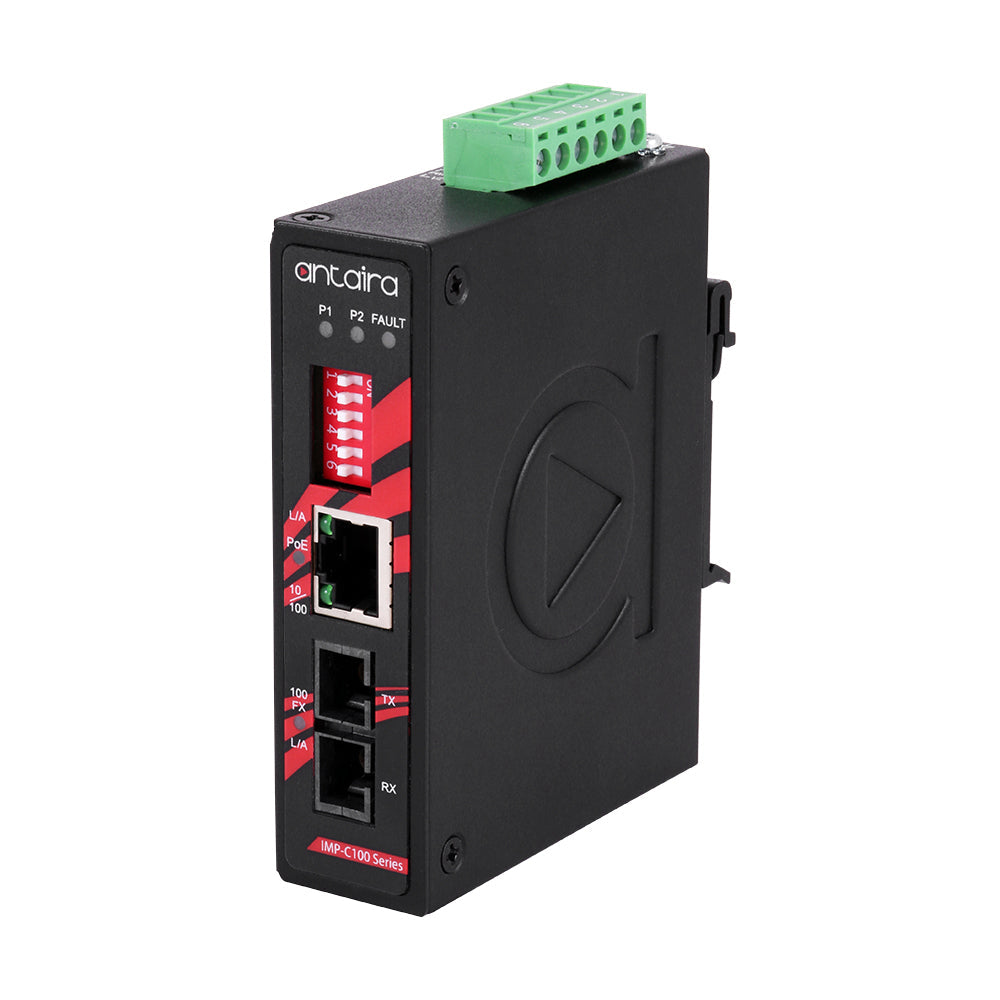

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to IMP-C100-M
Documents and manuals
Antaira IMP-C100-M Documents
Overview
Details for IMP-C100-M
Compact 10/100TX To 100FX Industrial PoE+ Media Converter | Multi-Mode 2KM | SC Connector
Antaira Technologies’ IMP-C100-XX series is a compact IP30 rated Ethernet-to-fiber media converter featuring a 10/100TX Ethernet port that supports IEEE 802.3at high power PoE that can supply up to 30 watts, and a fixed fiber interface supporting ST and SC connectors depending on the model. There are Multi-Mode and Single-Mode models to support applications with a variety of fiber distances and types. It is designed to fulfill industrial applications that require fiber optic distance extension while using minimal space.The IMP-C100-XX series has a built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF) function with 48~55VDC redundant power inputs with reverse polarity and overload current protection. This product series supports DIN-Rail as well as wall mountable orientations and provides an operating temperature range model in STD: -10°C to 70°C.Features
- 1*10/100Tx Fast Ethernet with IEEE 802.3at Compliant PoE+
- 1*100Fx SC/ST Connector (Multi / Single-Mode)
- RJ45 Port Support Auto MDI / MDI-X Function
- Auto Negotiation Speed, Half / Full Duplex
- Store-and-Forward Switching Architecture
- Built-in Link Fault Pass Through (LFP)
- Built-in Far End Fault (FEF)
- Wide-Range Redundant Power Design
- Redundant Power Input: 48~55VDC
- Power Polarity Reverse Protection
- Overload Current Protection
- DIN-Rail or Wall Mountable
- IP30 Protection
- 5-Year Warranty
Included
- 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
- 1 - IMP-C100-M
- 1 - Quick Installation Guide
- 1 - Set of wall mounting brackets and screws
Specifications
- Ambient Relative Humidity
- 5% to 95%, (non-condensing)
- Certifications
- FCC, CE,;UL 61010-1 (Pending),;UL 61010-2-201 (Pending)
- Dimensions
- 26 x 95 x 75 mm (W x H x D)
- EMI
- FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A
- EMS
- CE EN 55024 Class A;EN 61000-6-2 Class A;IEC61000-4-2 (ESD);IEC61000-4-3 (RS);IEC61000-4-4 (EFT);IEC61000-4-5 (Surge);IEC61000-4-6 (CS);IEC61000-4-8 (Magnetic Field)
- Ethernet Port
- 1*RJ45 Port w/10/100T(X), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Fiber Port
- 1*100Fx SC/ST type connector;Multi-mode: 50/125um or 62.5/125um;Single-mode: 9/125um or 10/125um
- Flow Control
- IEEE 802.3x back pressure flow control
- Free Fall / Shock / Vibration
- IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- Input Voltage
- 48 to 55VDC, Redundant Inputs
- LED Indicators
- Power 1, Power 2, Fault:: On / Off;Fiber Port: Link / Act;Ethernet Port: Link / Act;PoE: On-connected to PD devices
- Max. PoE Power Budget
- 30Watts
- Memory Buffer
- 128kbits
- Mounting
- DIN-Rail Mounting, Wall Mounting
- Operating Temperature
- STD: -10°C to 70°C
- Overload Current Protection
- Present
- Power Connection
- 1 removable 6-contact terminal block
- Power Consumption
- 2.4Watts for System
- Processing Type
- Store and Forward
- Protocols
- CSMA/CD
- Relay Contact
- 24VDC, 1A resistive
- Reverse Polarity Protection
- Present
- Standards
- IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3af/at Power Over Ethernet
- Storage Temperature
- -40°C to 85°C
- Warranty
- 5 Years
- Wavelength
- Depends on fixed fiber modules
- Weight
- Unit: 0.661 lb.;Shipping: 0.903 lb.
