IMP-100A-S3-T | 10/100TX To 100FX Industrial PoE Media Converter | SM 30KM SC | EOT -40°C ~ 80°C | Antaira

10/100TX To 100FX Industrial PoE Media Converter, SM 30KM SC , EOT -40°C ~ 80°C

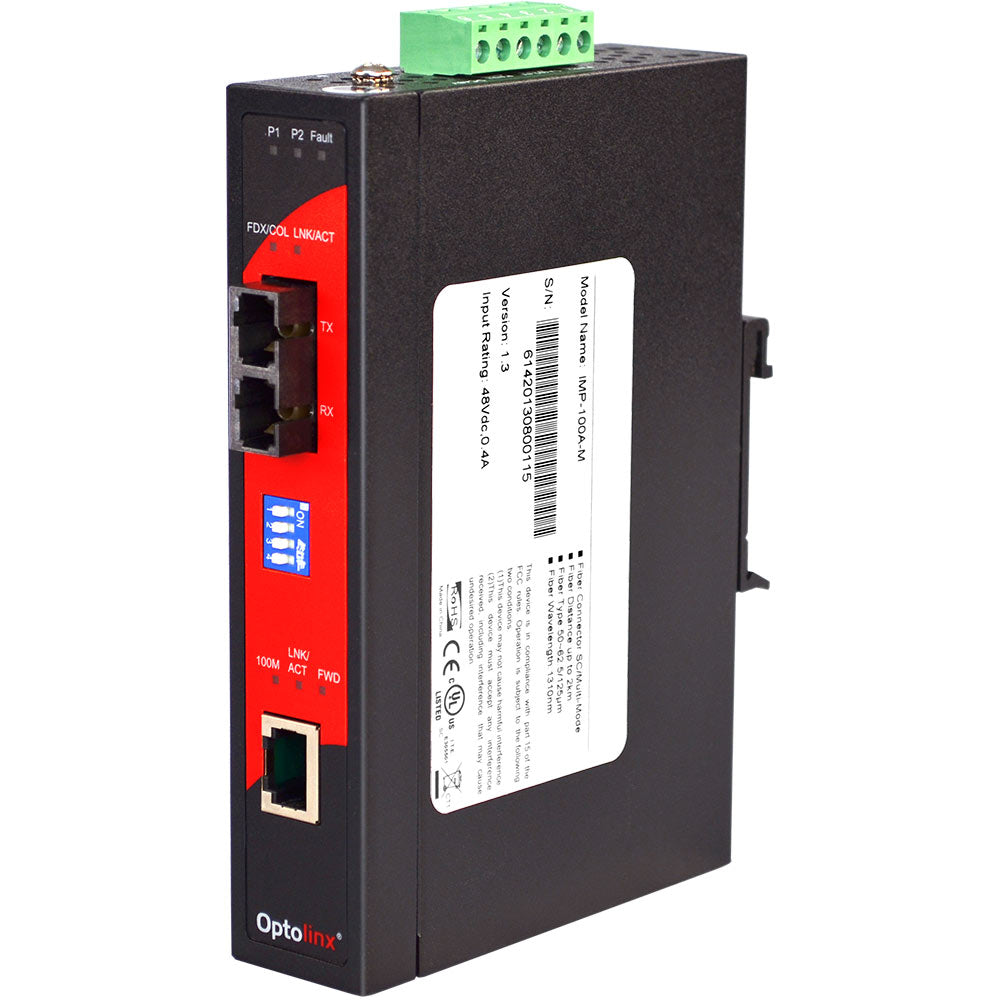

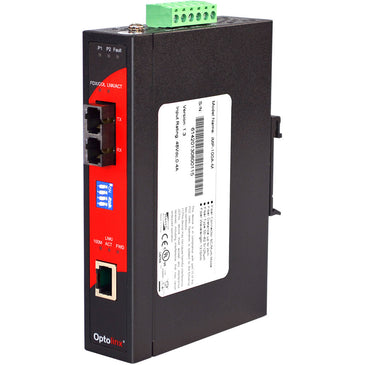

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to IMP-100A-S3-T

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Antaira IMP-100A-S3-T Documents

Product Datasheet Product Manual More Info

Overview

Details for IMP-100A-S3-T

10/100TX To 100FX Industrial PoE Media Converter | SM 30KM SC | EOT -40°C ~ 80°C

Antaira Technologies IMP-100A-S3-T is a PoE, industrial grade, extended operating temperature, fast Ethernet, single-mode media converter. The IMP-100A-S3-T conforms to the FCC emission standards and is housed in a industrial metal case. The IMP-100A-S3-T features a SC fiber connector as well as the STP-RJ45 Ethernet connector. The copper media converter is fully compliant with IEEE 802.3u, 802.3x and 802.3af standards. The IMP-100A-S3-T is a 10/100 single mode media converter with a 1310nm fiber wavelength, capable of communication of up to 30 kilometers.

Features

Embedded 1 Port PoE Injector Function
Wide Operating Temperature Model Available (-40° C to 80° C)
RJ-45 Port Support Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
Built-in Link Loss Forwarding (LLF) & Link-Fault-Pass-Through (LFP)
DC 48V Redundant Power
Provides EFT Protection 3000 VDC For Power Line
Supports 6000 VDC Ethernet ESD Protection
DIN-Rail or Wall Mountable
IP30 Protection
5-Year Warranty

Included

DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
IMP-100A-S3-T
Mounting Brackets

Specifications

Approvals: EMI: FCC Class A;CE EN6100-4-2/3/4/5/6/8/11;CE EN6100-6-2/4;Safety: UL, cUL, CE-EN60950;Shock: IEC 60068-2-27;Free Fall: IEC 60068-2-32;Vibration: IEC 60068-2-6
Connector: SC (Single-Mode)
Dimensions: IP-30, 30 x 95 x 140 mm (1.18 x 3.74 x 5.51 inches)
Dip Switch: 1. ON: Enables Port Alarm;OFF: Disables Port Alarm;2. ON: Enables Link Loss Forward & Link Fault Pass Through;OFF: Disables Link Loss Forward & Link Fault Pass Through;3. ON: 100BaseFX Half-Mode;OFF: 100BaseFX Full-Mode;4. ON: Media Mode (100TX to 100FX);OFF: Switching Mode
Ethernet: 10/100BaseT: 1 x RJ45 Connector
Fiber Core: Single-mode (30Km) - 9/125um ~ 10/125um
Humidity: 5% ~ 90% non-condensing
IEEE: IEEE 802.3 10BaseT;IEEE 802.3u 100BaseTX/100BaseFX;IEEE 802.3x Flow Control and Back-Pressure;IEEE 802.3af Power over Ethernet
LED: Unit: Power(Green), Power1(Green), Power2(Green), Fault (Red);Fiber: Link/Act(Green), Full-Duplex/Collision(Yellow);Ethernet: Link/Act(Green), 100M(Yellow), Feeding Power (Green)
Link Loss Forward: (TX-Fiber) If TX port link down, will force Fiber port to link down;(Fiber-TX) If Fiber port link down, will force TX port to link down
Operating Temperature: -40° ~ 80° C (-40° ~ 176° F)
Overload Current Protection: Present
Poe Pin Assignment: RJ-45 Port Supports IEEE 802.3af End-Point, Alt. A Mode;Positive (VCC+): RJ-45 Pin 1, 2;Negative (VCC-): RJ-45 Pin 3, 6;Data (1, 2, 3, 6)
Power: DC 48V Redundant Power
Power Consumption: 3.3W (w/o PoE);16.4W (Full Load w/ PoE)
Reverse Polarity Power Protection: Present
Storage Temperature: -40° ~ 85° C
Switching Architecture: Store and Forward
Transfer Rate: 14,880pps for Ethernet Port;148,800 for Fast Ethernet Port
Typical Distance: 30 Km
Warranty: 5 Years
Wave length: 1310 nm
