IMP-100A-S3 | 10/100TX To 100FX Industrial PoE Media Converter | SM 30KM SC | Antaira
10/100TX To 100FX Industrial PoE Media Converter, SM 30KM SC

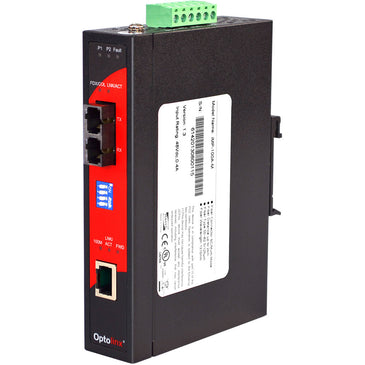

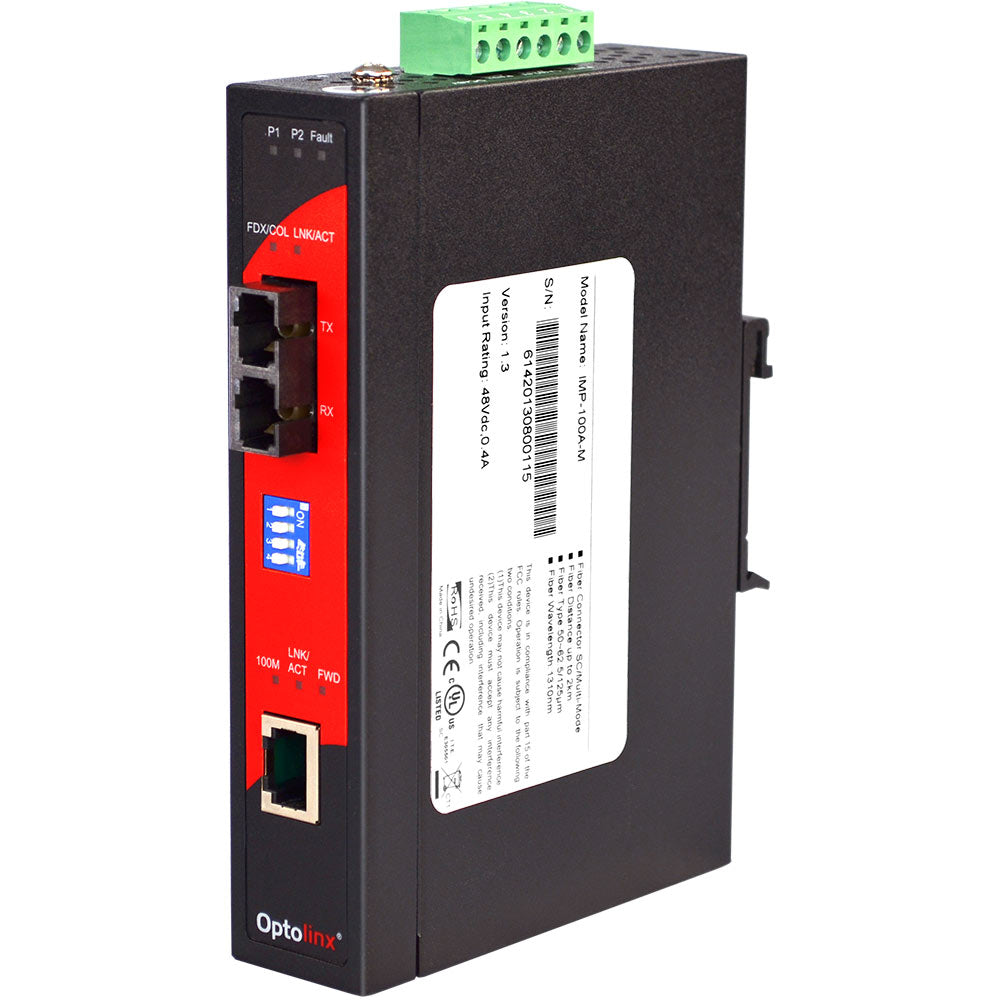

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to IMP-100A-S3
Documents and manuals
Antaira IMP-100A-S3 Documents
Overview
Details for IMP-100A-S3
10/100TX To 100FX Industrial PoE Media Converter | SM 30KM SC
Antaira Technologies IMP-100A-S3 is a PoE, industrial grade, fast Ethernet, single-mode media converter. The IMP-100A-S3 conforms to the FCC emission standards and is housed in a industrial metal case. The IMP-100A-S3 features a SC fiber connector as well as the STP-RJ45 Ethernet connector. The copper media converter is fully compliant with IEEE 802.3u, 802.3x and 802.3af standards. The IMP-100A-S3 is a 10/100 single mode media converter with a 1310nm fiber wavelength, capable of communication of up to 30 kilometers.Features
- Embedded 1 Port PoE Injector Function
- RJ-45 Port Support Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- Built-in Link Loss Forwarding (LLF) & Link-Fault-Pass-Through (LFP)
- DC 48V Redundant Power
- Provides EFT Protection 3000 VDC For Power Line
- Supports 6000 VDC Ethernet ESD Protection
- DIN-Rail or Wall Mountable
- IP30 Protection
- 5-Year Warranty
Included
- DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- IMP-100A-S3
- Mounting Brackets
Specifications
- Approvals
- EMI: FCC Class A;CE EN6100-4-2/3/4/5/6/8/11;CE EN6100-6-2/4;Safety: UL, cUL, CE-EN60950;Shock: IEC 60068-2-27;Free Fall: IEC 60068-2-32;Vibration: IEC 60068-2-6
- Connector
- SC (Single-Mode)
- Dimensions
- IP-30, 30 x 95 x 140 mm (1.18 x 3.74 x 5.51 inches)
- Dip Switch
- 1. ON: Enables Port Alarm;OFF: Disables Port Alarm;2. ON: Enables Link Loss Forward & Link Fault Pass Through;OFF: Disables Link Loss Forward & Link Fault Pass Through;3. ON: 100BaseFX Half-Mode;OFF: 100BaseFX Full-Mode;4. ON: Media Mode (100TX to 100FX);OFF: Switching Mode
- Ethernet
- 10/100BaseT: 1 x RJ45 Connector
- Fiber Core
- Single-mode (30Km) - 9/125um ~ 10/125um
- Humidity
- 5% ~ 90% non-condensing
- IEEE
- IEEE 802.3 10BaseT;IEEE 802.3u 100BaseTX/100BaseFX;IEEE 802.3x Flow Control and Back-Pressure;IEEE 802.3af Power over Ethernet
- LED
- Unit: Power(Green), Power1(Green), Power2(Green), Fault (Red);Fiber: Link/Act(Green), Full-Duplex/Collision(Yellow);Ethernet: Link/Act(Green), 100M(Yellow), Feeding Power (Green)
- Link Loss Forward
- (TX-Fiber) If TX port link down, will force Fiber port to link down;(Fiber-TX) If Fiber port link down, will force TX port to link down
- Operating Temperature
- -10° ~ 70° C (14° ~ 158° F)
- Overload Current Protection
- Present
- Poe Pin Assignment
- RJ-45 Port Supports IEEE 802.3af End-Point, Alt. A Mode;Positive (VCC+): RJ-45 Pin 1, 2;Negative (VCC-): RJ-45 Pin 3, 6;Data (1, 2, 3, 6)
- Power
- DC 48V Redundant Power
- Power Consumption
- 3.3W (w/o PoE);16.4W (Full Load w/ PoE)
- Reverse Polarity Power Protection
- Present
- Storage Temperature
- -40° ~ 85° C
- Switching Architecture
- Store and Forward
- Transfer Rate
- 14,880pps for Ethernet Port;148,800 for Fast Ethernet Port
- Typical Distance
- 30 Km
- Warranty
- 5 Years
- Wave length
- 1310 nm
