IMC-C1000-ST-M-T | Compact Industrial Gigabit Ethernet Media Converter | with 10/100/1000TX to ST MM 1000Mbps Fixed Fiber; EOT: -40° to 80°C | Antaira

Compact Industrial Gigabit Ethernet Media Converter, with 10/100/1000TX to ST MM 1000Mbps Fixed Fiber; EOT: -40° to 80°C

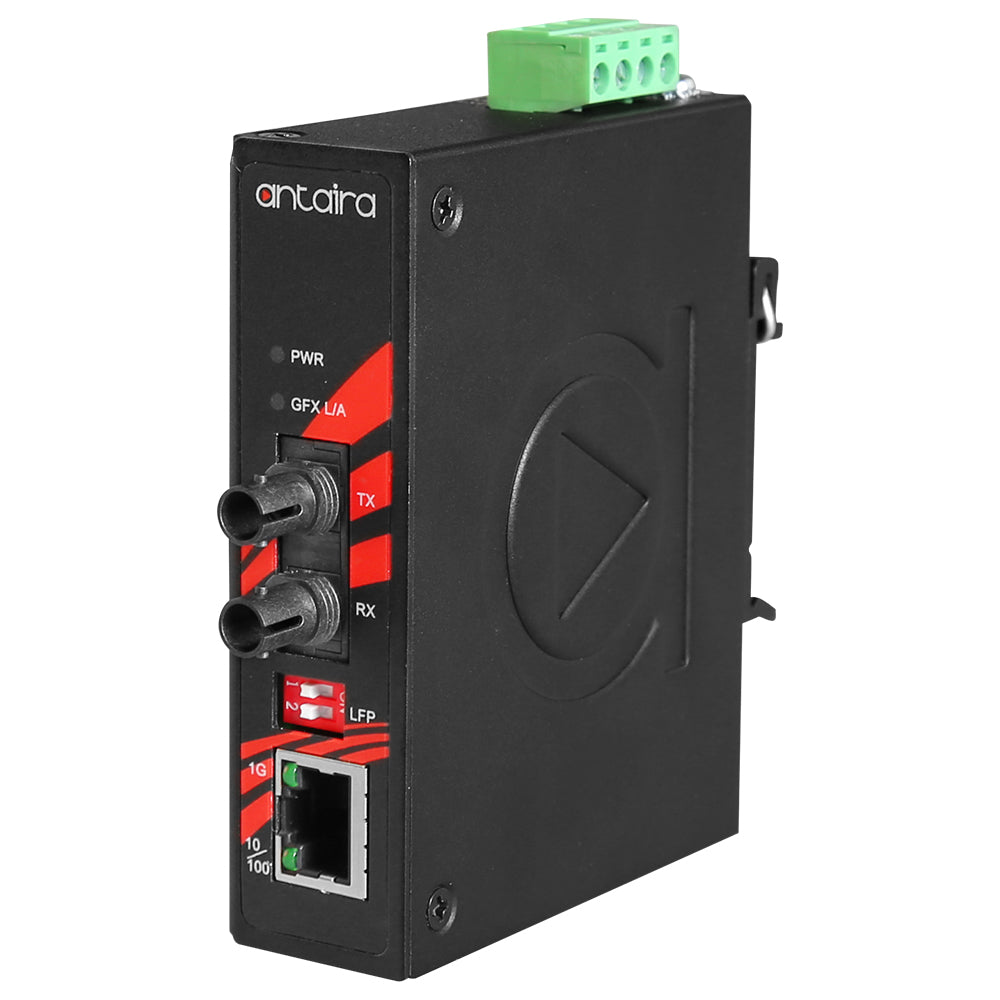

Antaira | IMC-C1000-ST-M-T
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to IMC-C1000-ST-M-T

Documents and manuals

Antaira IMC-C1000-ST-M-T Documents

Overview

Details for IMC-C1000-ST-M-T

Compact Industrial Gigabit Ethernet Media Converter | with 10/100/1000TX to ST MM 1000Mbps Fixed Fiber; EOT: -40° to 80°C

Antaira Technologies’ IMC-C1000-ST-T series is a compact IP30 rated gigabit Ethernet-to-Fiber media converter featuring a 10/100/1000TX Ethernet port and a fixed fiber interface supporting ST or SC connectors depending on the model. There are models that support Multi-Mode and Single-Mode to support applications with a variety of fiber distances. It is perfectly designed to fulfill industrial applications that require distance extension and high bandwidth capabilities.The IMC-C1000-ST-T series has a built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF) function with 12~48VDC redundant power inputs with reverse polarity and overload current protection. This product series supports DIN-rail as well as wall mountable orientations and provides an operating temperature range for EOT: -40°C to 80°C.

Features

  • 1*10/100/1000Tx Gigabit Ethernet
  • 1*1000x SC/ST Connector (Multi / Single-Mode)
  • RJ45 Port Support Auto MDI / MDI-X Function
  • Auto Negotiation Speed, Half / Full Duplex
  • Store-and-Forward Switching Architecture
  • Built-in Link Fault Pass Through (LFP)
  • Built-in Far End Fault (FEF)
  • Jumbo Frame Support: 10k bytes
  • Wide-Range Redundant Power Design
  • Redundant Power Input: 12~48VDC
  • Power Polarity Reverse Protection
  • Overload Current Protection
  • DIN-Rail or Wall Mountable
  • IP30 Protection
  • 5-Year Warranty

Included

  • DC Cable - 18 AWG with DC jack 5.5x2.1mm
  • IMC-C1000-ST-M-T
  • Wall Mounting Bracket Set with Screws

Specifications

Ambient Relative Humidity
5% to 95%, (non-condensing)
Certifications
FCC, CE, UL 61010-1, UL 61010-2-201
Dimensions
26 x 95 x 75 mm (W x H x D)
EMI
FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A
EMS
CE EN 55024/EN 61000-6-2;IEC61000-4-2,3,4,5,6,8
Ethernet Port
1*RJ45 Port w/10/100/1000T(X), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Port
1*1000 SC/ST type connector;Multi-mode: 50/125um or 62.5/125um;Single-mode: 9/125um or 10/125um
Flow Control
IEEE 802.3x back pressure flow control
Free Fall / Shock / Vibration
IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
Green
RoHS Compliant
Housing
Metal, IP30 protection
Input Voltage
12 to 48VDC, Redundant Input
Jumbo Frame
10K bytes
LED Indicators
Power (PWR): On / Off;Fiber Port (GFX): Link / Act;Ethernet Port: Link / Act
MAC Table Size
8K
Memory Buffer
1Mbit
Mounting
DIN-Rail, Wall Mounting (optional)
Operating Temperature
-40°C to 80°C
Overload Current Protection
Present
Power Connection
1 removable 4-contact terminal block
Power Consumption
2.2 Watts for system
Processing Type
Store and Forward
Protocols
CSMA/CD
Reverse Polarity Protection
Present
Standards
IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3ab 1000Base-T Gigabit Ethernet;IEEE 802.3z 1000Base-X Gigabit Fiber
Storage Temperature
-40°C to 85°C
Warranty
5 Years
Wavelength
Depends on fixed fiber modules
Weight
Unit: 0.595 lb.;Shipping: 0.86 lb.
