IMC-C1000-M-T | Compact Industrial Gigabit Ethernet Media Converter | with 10/100/1000TX to SC MM 1000Mbps Fixed Fiber; EOT: -40° to 80°C | Antaira
Compact Industrial Gigabit Ethernet Media Converter, with 10/100/1000TX to SC MM 1000Mbps Fixed Fiber; EOT: -40° to 80°C

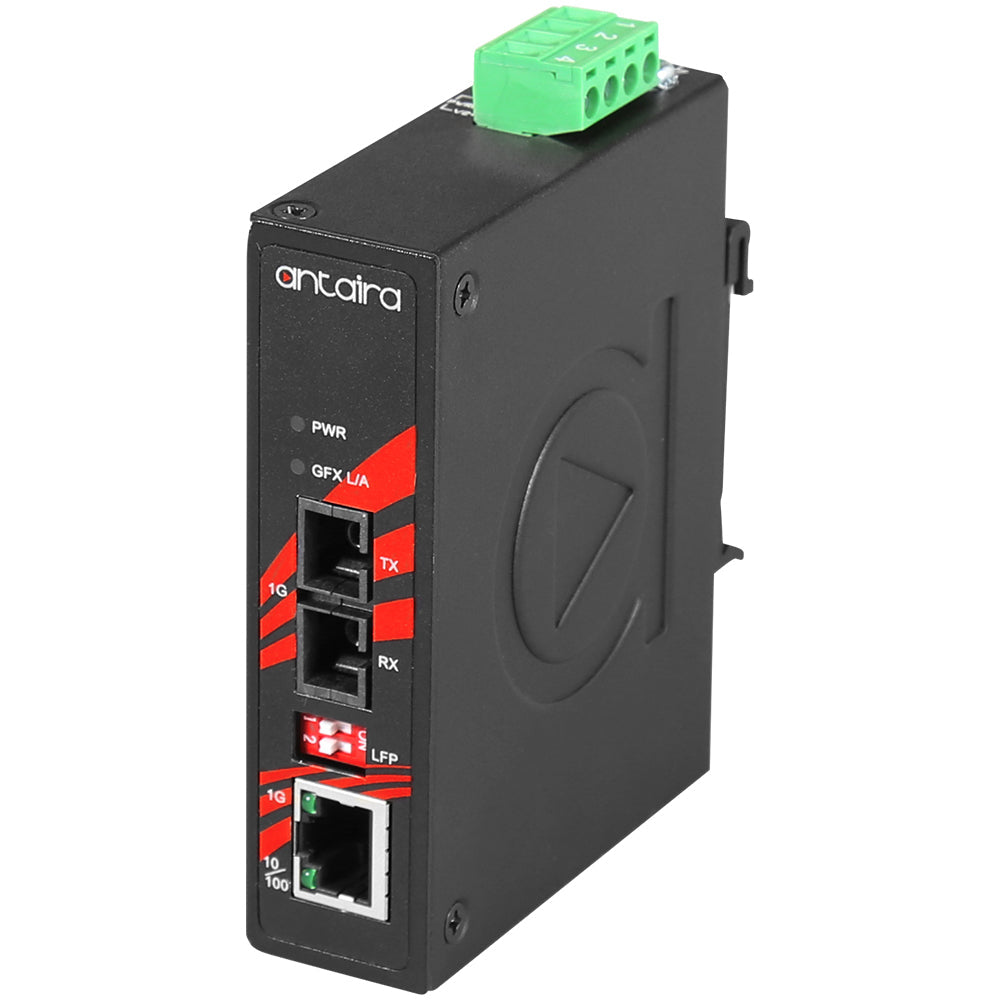

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to IMC-C1000-M-T
Documents and manuals
Antaira IMC-C1000-M-T Documents
Overview
Details for IMC-C1000-M-T
Compact Industrial Gigabit Ethernet Media Converter | with 10/100/1000TX to SC MM 1000Mbps Fixed Fiber; EOT: -40° to 80°C
Antaira Technologies’ IMC-C1000-M-T series is a compact IP30 rated gigabit Ethernet-to-Fiber media converter featuring a 10/100/1000TX Ethernet port and a fixed fiber interface supporting ST or SC connectors depending on the model. There are models that support Multi-Mode and Single-Mode to support applications with a variety of fiber distances. It is perfectly designed to fulfill industrial applications that require distance extension and high bandwidth capabilities.The IMC-C1000-M-T series has a built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF) function with 12~48VDC redundant power inputs with reverse polarity and overload current protection. This product series supports DIN-rail as well as wall mountable orientations and provides an operating temperature range for EOT: -40°C to 80°C.Features
- 1*10/100/1000Tx Gigabit Ethernet
- 1*1000x SC/ST Connector (Multi / Single-Mode)
- RJ45 Port Support Auto MDI / MDI-X Function
- Auto Negotiation Speed, Half / Full Duplex
- Store-and-Forward Switching Architecture
- Built-in Link Fault Pass Through (LFP)
- Built-in Far End Fault (FEF)
- Jumbo Frame Support: 10k bytes
- Wide-Range Redundant Power Design
- Redundant Power Input: 12~48VDC
- Power Polarity Reverse Protection
- Overload Current Protection
- DIN-Rail or Wall Mountable
- IP30 Protection
- 5-Year Warranty
Included
- DC Cable - 18 AWG with DC jack 5.5x2.1mm
- IMC-C1000-M-T
- Wall Mounting Bracket Set with Screws
Specifications
- Ambient Relative Humidity
- 5% to 95%, (non-condensing)
- Certifications
- FCC, CE, UL 61010-1, UL 61010-2-201
- Dimensions
- 26 x 95 x 75 mm (W x H x D)
- EMI
- FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A
- EMS
- CE EN 55024/EN 61000-6-2;IEC61000-4-2,3,4,5,6,8
- Ethernet Port
- 1*RJ45 Port w/10/100/1000T(X), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Fiber Port
- 1*1000 SC/ST type connector;Multi-mode: 50/125um or 62.5/125um;Single-mode: 9/125um or 10/125um
- Flow Control
- IEEE 802.3x back pressure flow control
- Free Fall / Shock / Vibration
- IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- Input Voltage
- 12 to 48VDC, Redundant Input
- Jumbo Frame
- 10K bytes
- LED Indicators
- Power (PWR): On / Off;Fiber Port (GFX): Link / Act;Ethernet Port: Link / Act
- MAC Table Size
- 8K
- Memory Buffer
- 1Mbit
- Mounting
- DIN-Rail, Wall Mounting (optional)
- Operating Temperature
- -40°C to 80°C
- Overload Current Protection
- Present
- Power Connection
- 1 removable 4-contact terminal block
- Power Consumption
- 2.2 Watts for system
- Processing Type
- Store and Forward
- Protocols
- CSMA/CD
- Reverse Polarity Protection
- Present
- Standards
- IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3ab 1000Base-T Gigabit Ethernet;IEEE 802.3z 1000Base-X Gigabit Fiber
- Storage Temperature
- -40°C to 85°C
- Warranty
- 5 Years
- Wavelength
- Depends on fixed fiber modules
- Weight
- Unit: 0.595 lb.;Shipping: 0.86 lb.
