IMC-C1000-M | Compact Industrial Gigabit Ethernet Media Converter | with 10/100/1000TX to SC MM 1000Mbps Fixed Fiber | Antaira

Compact Industrial Gigabit Ethernet Media Converter | with 10/100/1000TX to SC MM 1000Mbps Fixed Fiber

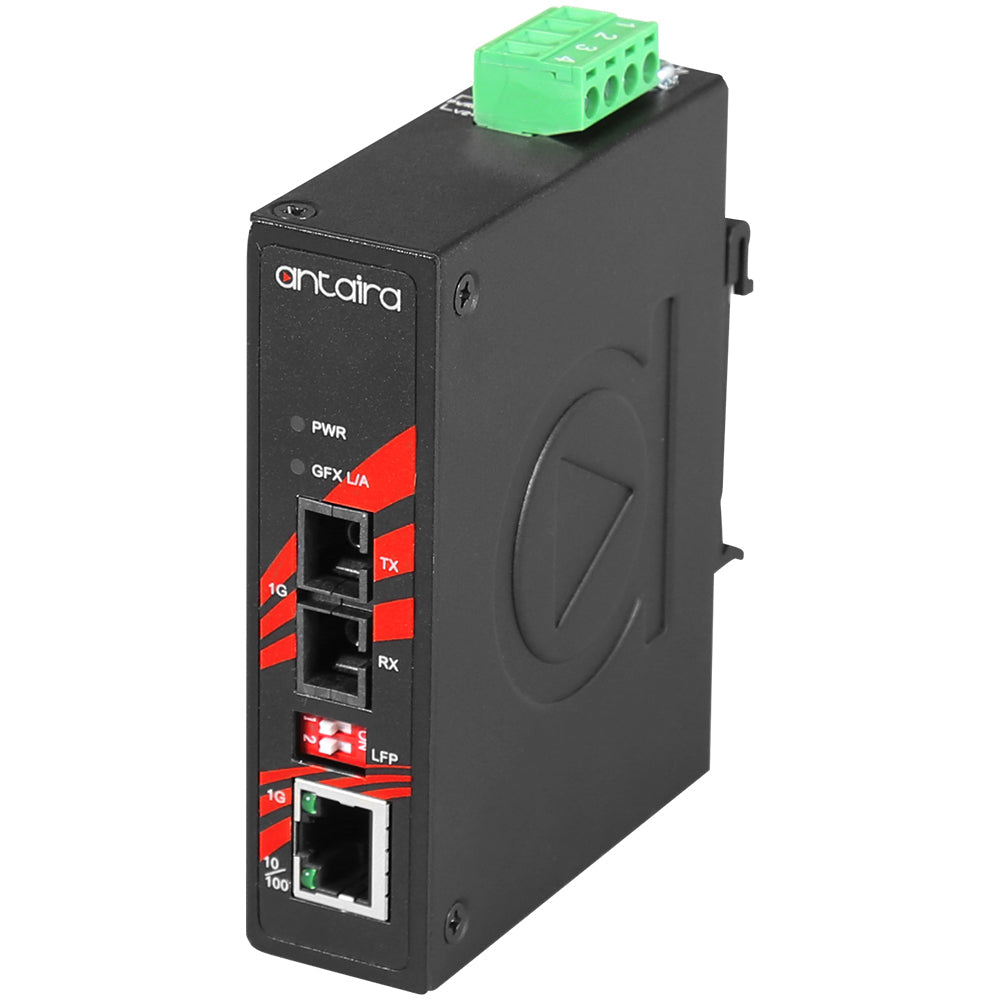

Antaira Technologies’ IMC-C1000-M series is a compact IP30 rated gigabit Ethernet-to-Fiber industrial media converter featuring a 10/100/1000TX Ethernet port and a fixed fiber interface supporting ST or SC connectors depending on the model. There are models that support Multi-Mode and Single-Mode to support applications with a variety of fiber distances. It is perfectly designed to fulfill industrial applications that require distance extension and high bandwidth capabilities.The IMC-C1000-M industrial media converter series has a built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF) function with 12~48VDC redundant power inputs with reverse polarity and overload current protection. This product series supports DIN-rail as well as wall mountable orientations and provides operating temperature range models in STD: -10°C to 70°C.

Features

• 1*10/100/1000Tx Gigabit Ethernet
• 1*1000x SC/ST Connector (Multi / Single-Mode)
• RJ45 Port Support Auto MDI / MDI-X Function
• Auto Negotiation Speed, Half / Full Duplex
• Store-and-Forward Switching Architecture
• Built-in Link Fault Pass Through (LFP)
• Built-in Far End Fault (FEF)
• Jumbo Frame Support: 10k bytes
• Wide-Range Redundant Power Design
• Redundant Power Input: 12~48VDC
• Power Polarity Reverse Protection
• Overload Current Protection
• DIN-Rail or Wall Mountable
• IP30 Protection
• 5-Year Warranty

Included

• DC Cable - 18 AWG with DC jack 5.5x2.1mm
• IMC-C1000-M
• Wall Mounting Bracket Set with Screws
