IMC-C100-S3-T | Compact 10/100TX To 100FX Industrial Media Converter | Single Mode 30KM | SC Connector; EOT: -40°C to 80°C | Antaira

Compact 10/100TX To 100FX Industrial Media Converter, Single Mode 30KM, SC Connector; EOT: -40°C to 80°C

Brand: AntairaSKU: IMC-C100-S3-T

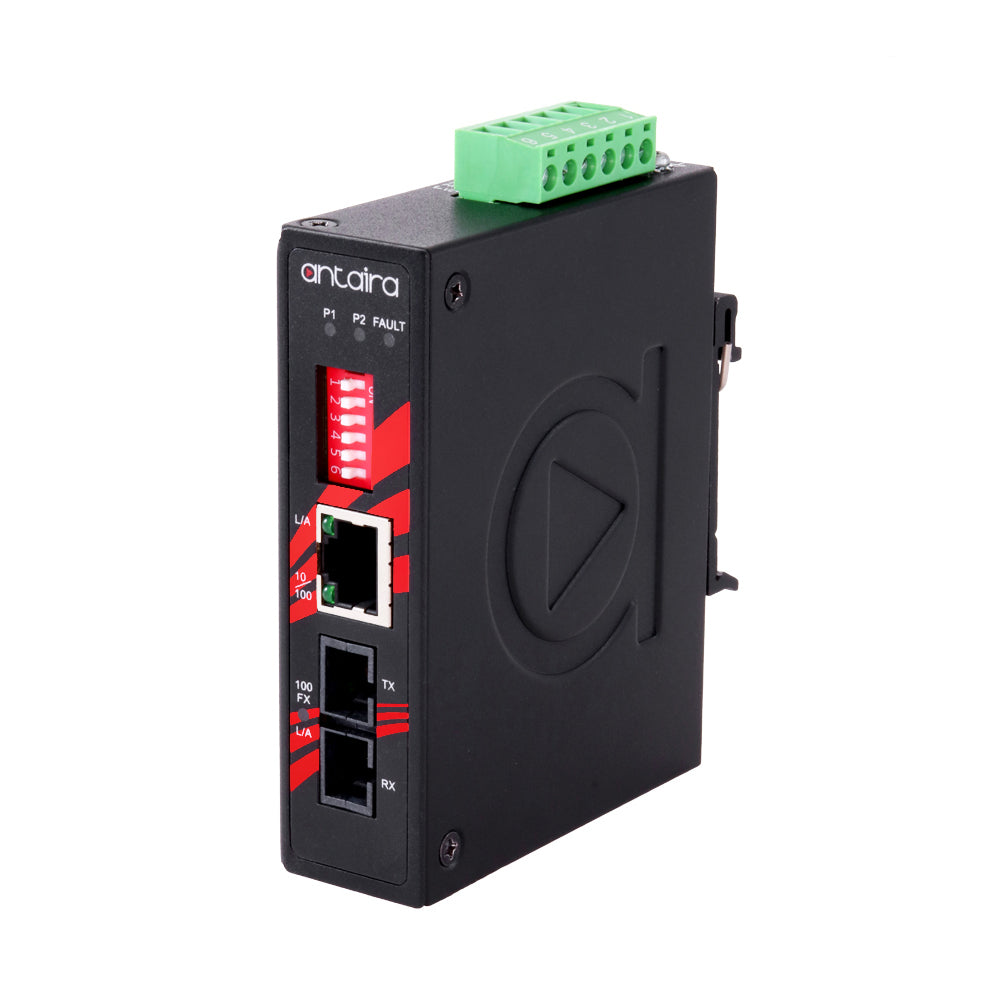

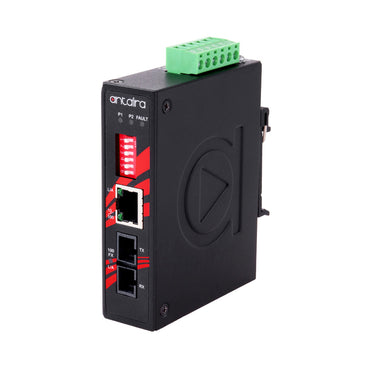

Antaira | IMC-C100-S3-T
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to IMC-C100-S3-T

Overview Details for IMC-C100-S3-T

Compact 10/100TX To 100FX Industrial Media Converter | Single Mode 30KM | SC Connector; EOT: -40°C to 80°C

Antaira Technologies’ IMC-C100-S3-T series is a compact IP30 rated Ethernet-to-Fiber media converter featuring a 10/100TX Ethernet port and a fixed fiber interface supporting ST or SC connectors depending on the model. There are Multi-Mode and Single-Mode models to support applications with a variety of fiber distances and types. It is designed to fulfill industrial applications that require fiber optic distance extension while using minimal space.The IMC-C100-S3-T series has a built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF) function with 12~48VDC redundant power inputs with reverse polarity and overload current protection. This product series supports DIN-Rail as well as wall mountable orientations and provides an operating temperature range in EOT: -40°C to 80°C.

Features

  • 1*10/100Tx Fast Ethernet
  • 1*100Fx SC/ST Connector (Multi / Single-Mode)
  • RJ45 Port Support Auto MDI / MDI-X Function
  • Auto Negotiation Speed, Half / Full Duplex
  • Store-and-Forward Switching Architecture
  • Built-in Link Fault Pass Through (LFP)
  • Built-in Far End Fault (FEF)
  • Wide-Range Redundant Power Design
  • Redundant Power Input: 12~48VDC
  • Power Polarity Reverse Protection
  • Overload Current Protection
  • DIN-Rail or Wall Mountable
  • IP30 Protection
  • 5-Year Warranty

Included

  • DC Cable - 18 AWG with DC jack 5.5x2.1mm
  • IMC-C100-S3-T
  • Quick Installation Guide
  • Wall Mounting Bracket Set with Screws

Specifications

Ambient Relative Humidity
5% to 95%, (non-condensing)
Certifications
FCC, CE,;UL 61010-1 (Pending),;UL 61010-2-201 (Pending)
Dimensions
26 x 95 x 75 mm (W x H x D)
EMI
FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A
EMS
CE EN 55024 Class A;EN 61000-6-2 Class A;IEC61000-4-2 (ESD);IEC61000-4-3 (RS);IEC61000-4-4 (EFT);IEC61000-4-5 (Surge);IEC61000-4-6 (CS);IEC61000-4-8 (Magnetic Field)
Ethernet Port
1*RJ45 Port w/10/100T(X), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Port
1*100Fx SC/ST type connector;Multi-mode: 50/125um or 62.5/125um;Single-mode: 9/125um or 10/125um
Flow Control
IEEE 802.3x back pressure flow control
Free Fall / Shock / Vibration
IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
Green
RoHS Compliant
Housing
Metal, IP30 protection
Input Voltage
12 to 48VDC, Redundant Input
LED Indicators
Power 1, Power 2, Fault: On / Off;Fiber Port: Link / Act;Ethernet Port: Link / Act
Memory Buffer
128Kbits
Mounting
DIN-Rail, Wall Mounting (optional)
Operating Temperature
-40°C to 80°C
Overload Current Protection
Present
Power Connection
1 removable 6-contact terminal block
Power Consumption
2 Watts for system
Processing Type
Store and Forward
Protocols
CSMA/CD
Relay Contact
24VDC, 1A resistive
Reverse Polarity Protection
Present
Standards
IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet
Storage Temperature
-40°C to 85°C
Warranty
5 Years
Wavelength
Depends on fixed fiber modules
Weight
Unit: 0.551 lb.;Shipping: 0.815 lb.
