IMC-100A-ST-S3-T | 10/100TX To 100FX Industrial Media Converter | SM 30km | ST Connector | -40°~80°C | Antaira
10/100TX To 100FX Industrial Media Converter, SM 30km, ST Connector, -40°~80°C

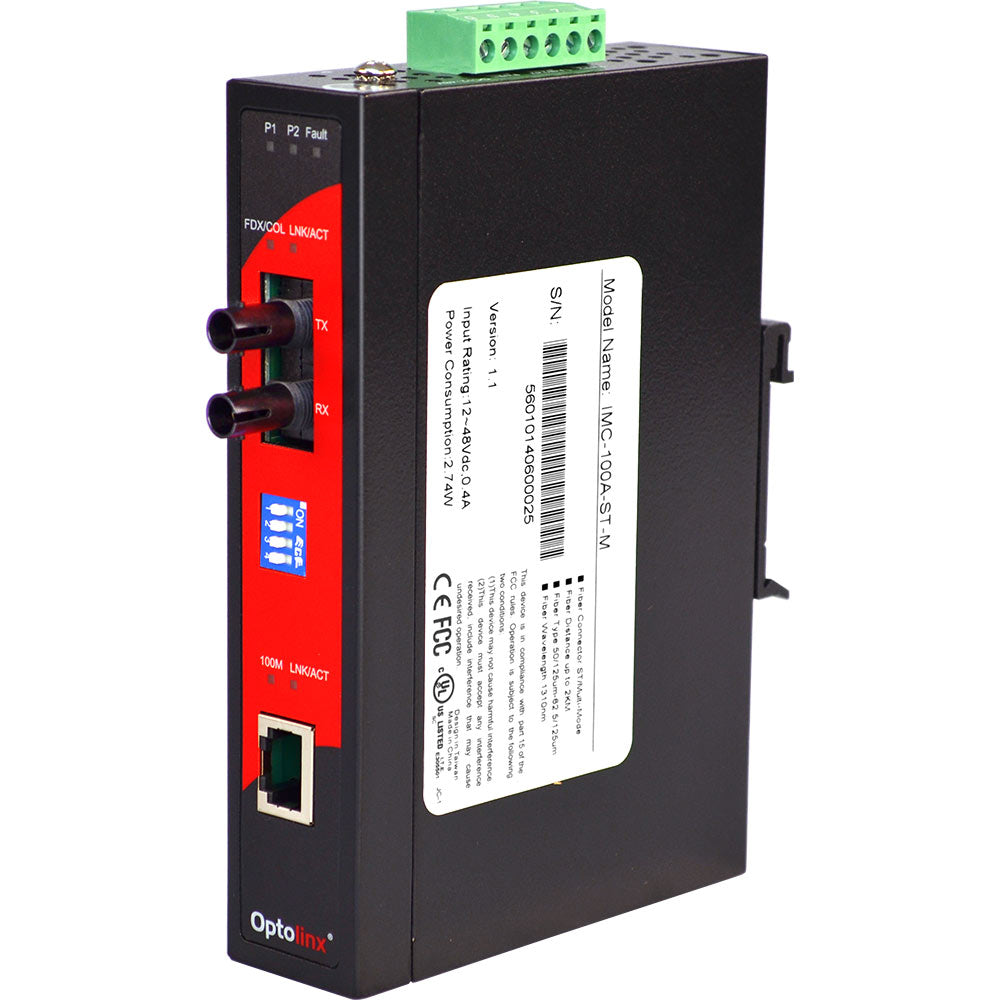

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to IMC-100A-ST-S3-T
Documents and manuals
Antaira IMC-100A-ST-S3-T Documents
Overview
Details for IMC-100A-ST-S3-T
10/100TX To 100FX Industrial Media Converter | SM 30km | ST Connector | -40°~80°C
The IMC-100A-ST-S3 is an Industrial grade 10/100BaseTX to 100BaseFX Media Converter. DC power input, DIN Rail mounting, and alarm contacts are all standard features. The IMC-100A-ST-S3 allows users to extend their Industrial Ethernet network up to 30km while maintaining industrial reliability.Features
- UTP to Fiber Media Converter
- RJ-45 Port Support Auto MDI/MDI-X Function
- Auto Negotiation Speed, Half/Full Duplex
- Store-and-Forward Switching Architecture
- Built-in Link Loss Forwarding (LLF) & Link-Fault-Pass-Through (LFP)
- Wide-range Redundant Power Design
- Power Polarity Reverse Protection
- Overload Current Protection
- DIN-Rail or Wall Mountable
- IP30 Protection
- 5-Year Warranty
Included
- DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- IMC-100A-ST-S3-T
- Mounting Brackets
Specifications
- Approvals
- EMI: FCC Class A;CE-EN6100-4-2/3/4/5/6/8/11/12;CE-EN6100-6-2/4;Safety: UL/cUL;CE-EN60950-1;Shock: IEC 60068-2-27;Free Fall: IEC 60068-2-32;Vibration: IEC 60068-2-6
- Connector
- ST (Single-Mode)
- Dimensions
- IP-30, 30 x 95 x 140 mm (1.18 x 3.74 x 5.51 inches)
- Dip Switch
- 1. ON: Enables Port/Power Alarm;OFF: Disables Port/Power Alarm;2. ON: Enables LLF and LFP;OFF: Disables LLF and LFP;3. ON: 100BaseFX Half-Mode;OFF: 100BaseFX Full-Mode;4. ON: 100BaseTX Full-Duplex Mode;OFF: Auto Negotiation
- Ethernet
- 10/100BaseT: 1 x RJ45 Connector
- Fiber Core
- 9/125um ~ 10/125um
- Humidity
- 5% ~ 90% non-condensing
- IEEE
- IEEE 802.3 10BaseT;IEEE 802.3u 100BaseTX/FX;IEEE 802.3x Flow Control and Back-Pressure
- LED
- Unit: Power, Power1, Power2(Green), Fault (Red);Fiber: Link/Activity(Green), Half/Full-Duplex(Yellow);Ethernet: Link/Activity(Green), 100M (Yellow)
- Link Loss Forward
- (TX-Fiber) If TX port link down, will force Fiber port to link down;(Fiber-TX) If Fiber port link down, will force TX port to link down
- Method
- Store and Forward
- Operating Temperature
- -10° ~ 70° C (14° ~ 158° F)
- Overload Current Protection
- Present
- Power
- 12 to 48 VDC ; Redundant inputs
- Power Consumption
- 2.74 Watts
- Reverse Polarity Power Protection
- Present
- Storage Temperature
- -40° ~ 85° C
- Typical Distance
- 30Km
- Warranty
- 5 Years
- Wavelength
- 1310nm
