IMC-100A-ST-M-T | 10/100TX To 100FX Harden Media Converter | Multi-Mode 2Km | ST Connector | -40~80°C | Antaira

10/100TX To 100FX Harden Media Converter, Multi-Mode 2Km, ST Connector, -40~80°C

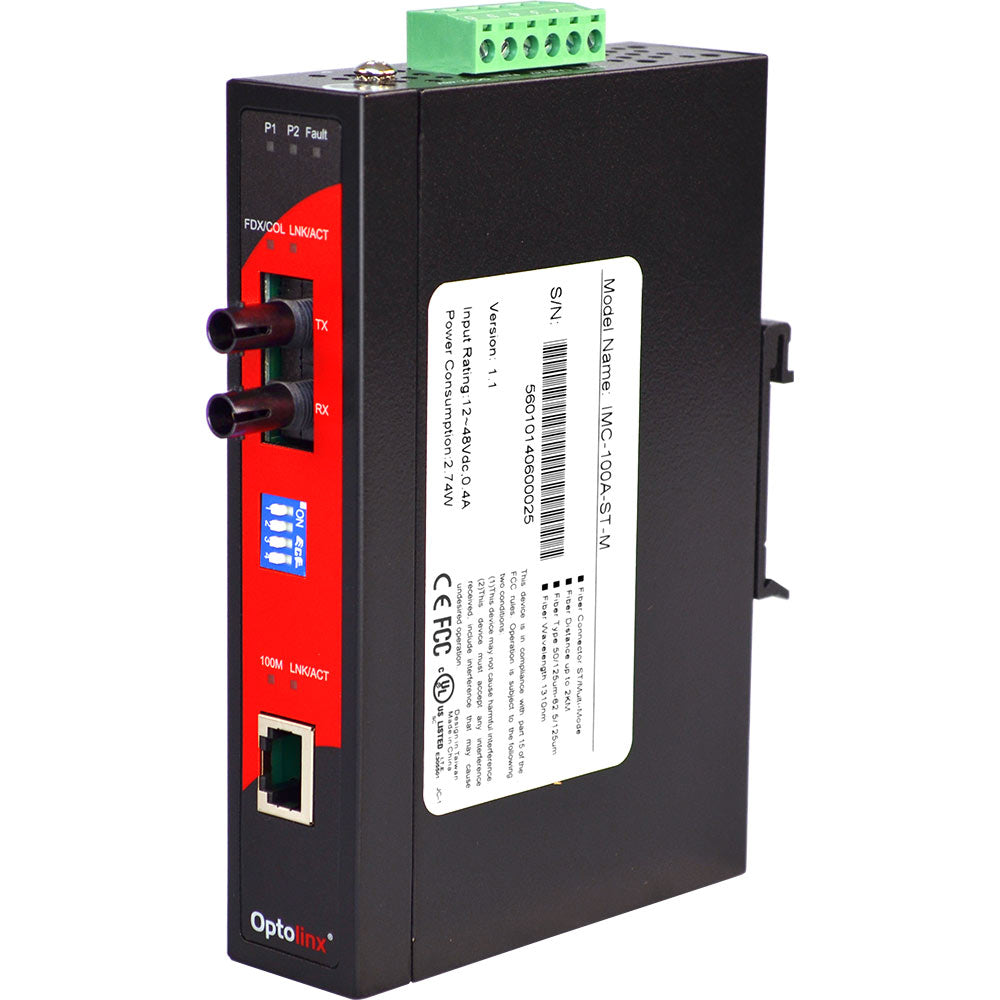

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to IMC-100A-ST-M-T

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Antaira IMC-100A-ST-M-T Documents

Product Datasheet Product Manual More Info

Overview

Details for IMC-100A-ST-M-T

10/100TX To 100FX Harden Media Converter | Multi-Mode 2Km | ST Connector | -40~80°C

Antaira Technologies IMC-100A-ST-M-T is an industrial media converter with an extended operating temperature. This Ethernet media converter has Fast Ethernet and multimode fiber. The IMC-100A-ST-M-T will convert between 10/100BaseTX copper to 100BaseFX fiber. The industrial media converter conforms to the FCC emission standards and is housed in a metal, din rail mountable case. The IMC-100A-ST-M-T features a standard ST connector as well as a copper STP-RJ45 Ethernet connector. The IMC-100A-ST-M-T is compliant with the IEEE 802.3u and 802.3x standards. The IMC-100A-ST-M-T fast Ethernet industrial media converter will use multi mode 1310nm wavelength fiber and is capable of communication of up to 2 kilometers.

Features

Extended Operating Temperature -40° ~ 80° C (-40° ~ 176° F)
UTP to Fiber Industrial Media Converter
RJ-45 Port Support Auto MDI/MDI-X Function
Auto Negotiation Speed, Half/Full Duplex
Store-and-Forward Switching Architecture
Built-in Link Loss Forwarding (LLF) & Link-Fault-Pass-Through (LFP)
Wide-range Redundant Power Design
Power Polarity Reverse Protection
Overload Current Protection
DIN-Rail or Wall Mountable
IP30 Protection
5-Year Warranty

Included

DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
IMC-100A-ST-M-T
Mounting Brackets

Specifications

Approvals: EMI: FCC Class A;CE-EN6100-4-2/3/4/5/6/8/11/12;CE-EN6100-6-2/4;Safety: UL/cUL;CE-EN60950-1;Shock: IEC 60068-2-27;Free Fall: IEC 60068-2-32;Vibration: IEC 60068-2-6
Connector: ST (Multi-Mode)
Dimensions: IP-30, 30 x 95 x 140 mm (1.18 x 3.74 x 5.51 inches)
Dip Switch: 1. ON: Enables Port/Power Alarm;OFF: Disables Port/Power Alarm;2. ON: Enables LLF and LFP;OFF: Disables LLF and LFP;3. ON: 100BaseFX Half-Mode;OFF: 100BaseFX Full-Mode;4. ON: 100BaseTX Full-Duplex Mode;OFF: Auto Negotiation
Ethernet: 10/100BaseT: 1 x RJ45 Connector
Fiber Core: 62.5/125um ~ 50/125um
Humidity: 5% ~ 90% non-condensing
IEEE: IEEE 802.3 10BaseT;IEEE 802.3u 100BaseTX/FX;IEEE 802.3x Flow Control and Back-Pressure
LED: Unit: Power, Power1, Power2(Green), Fault (Red);Fiber: Link/Activity(Green), Half/Full-Duplex(Yellow);Ethernet: Link/Activity(Green), 100M (Yellow)
Link Loss Forward: (TX-Fiber) If TX port link down, will force Fiber port to link down;(Fiber-TX) If Fiber port link down, will force TX port to link down
Method: Store and Forward
Operating Temperature: -40° ~ 80° C (-40° ~ 176° F)
Overload Current Protection: Present
Power: 12 to 48 VDC; Redundant inputs
Power Consumption: 2.74 Watts
Reverse Polarity Power Protection: Present
Storage Temperature: -40° ~ 85° C
Typical Distance: 2Km
Warranty: 5 Years
Wave length: 1310nm
