HDR-60-24 | 60 Watt Series / 24 VDC / 2.50 Amps Industrial Slim Single Output DIN Rail Power Supply | Antaira
60 Watt Series / 24 VDC / 2.50 Amps Industrial Slim Single Output DIN Rail Power Supply

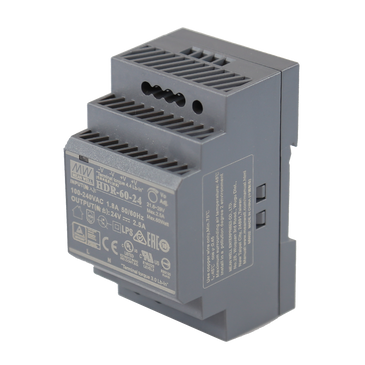

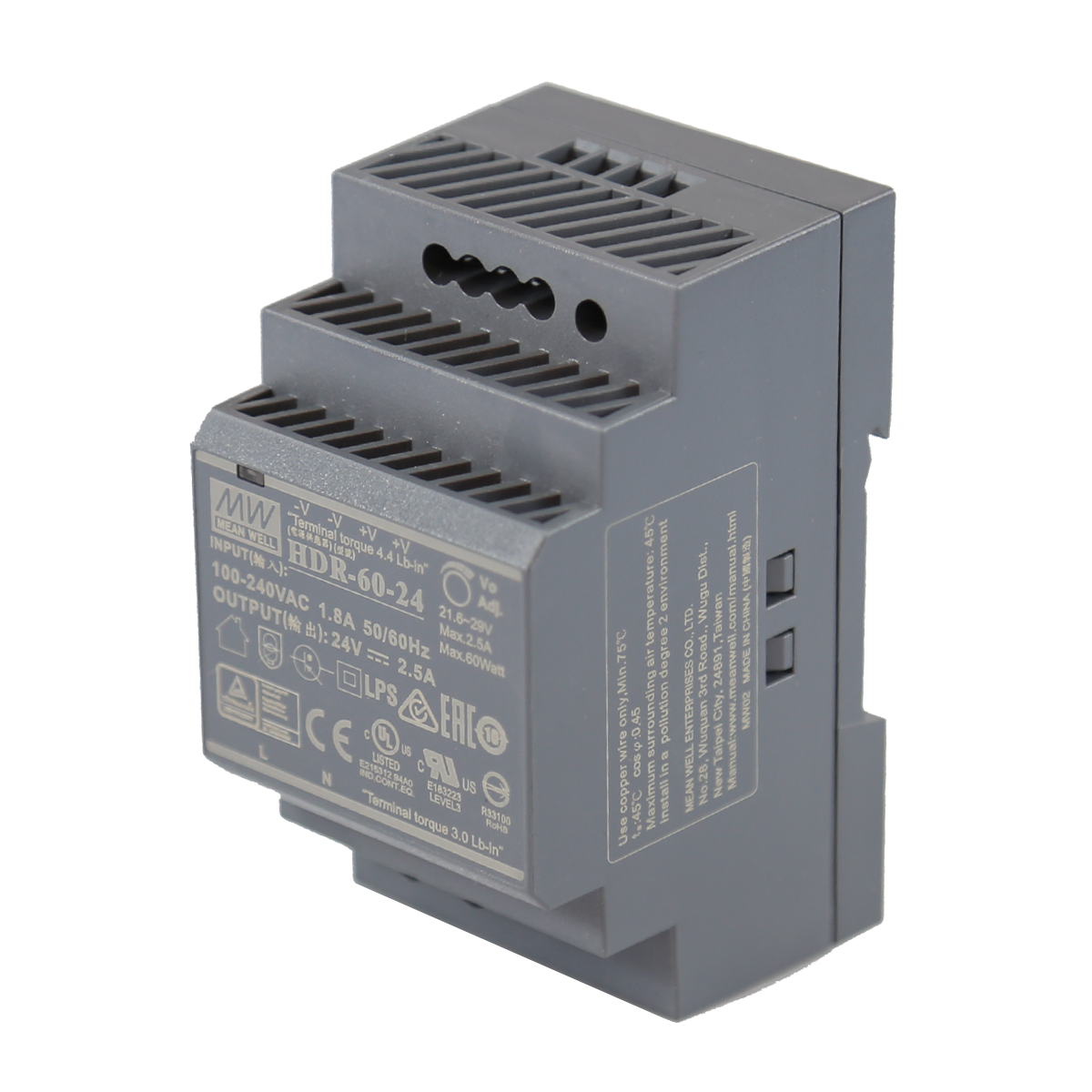

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HDR-60-24
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira HDR-60-24 Documents
Overview
Details for HDR-60-24
60 Watt Series / 24 VDC / 2.50 Amps Industrial Slim Single Output DIN Rail Power Supply
The HDR-60 Miniature DIN rail power supply series provides a 60 Watt solution. It can be installed on DIN rail TS-35/7.5 or 15. Standard protections include short circuit, overload, and over voltage protection. LED indicators are provided for power on.Features
- Ultra slim design with 52.5mm (3SU) width
- Universal input 85~264VAC (277VAC operational)
- No load power consumption <0.3W
- Isolation class II
- Pass LPS (limited power source)
- DC output voltage adjustable
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- DIN-rail mountable
- Over voltage category III
- LED indicator for power on
- 3-year warranty
Included
- HDR-60-24
Specifications
- AC Current
- 1.2A/115VAC;0.8A/230VAC
- Current Range
- 0 ~ 2.5A
- DC Voltage
- 24V
- EMC Emission
- EN55032 (CISPR32), CNS13438;EN61000-3-2;EN61000-3-3
- EMC Immunity
- EN55024;EN55035;EN61000-6-2;EN61204-3;EN61000-4-2;EN61000-4-3;EN61000-4-4;EN61000-4-5;EN61000-4-6;EN61000-4-8;EN61000-4-11
- Hold Up Time
- 30ms/230VAC;12ms/115VAC at full load
- Inrush Current
- COLD START 30A/115VAC;60A/230VAC
- Operating Humidity
- 20 - 90% RH non-condensing
- Operating Temperature
- -30°C to 70°C
- Over Voltage Protection
- 30 ~ 36V
- Overload Protection
- 105 - 160% rated output power
- Rated Current
- 2.5A
- Rated Power
- 60W
- Safety Standards
- UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1, EAC TP TC 004, BSMI CNS14336-1 approved; Design refer to TUV EN60950-1
- Setup, Rise Time
- 500ms, 50ms/230VAC;500ms, 50ms/115VAC at full load
- Storage Humidity
- 10 - 95% RH non-condensing
- Storage Temperature
- -40°C to 85°C
- Voltage Range
- 85 - 264VAC (277VAC operational);120 - 370VDC (390VDC operational)
- Warranty
- 3-year warranty
- Withstand Voltage
- I/P-O/P:4KVAC
