FCU-6001-SFP+ | 10G/5G/2.5G/1G Copper to 10GBASE-X SFP+ Media Converter | Antaira
10G/5G/2.5G/1G Copper to 10GBASE-X SFP+ Media Converter

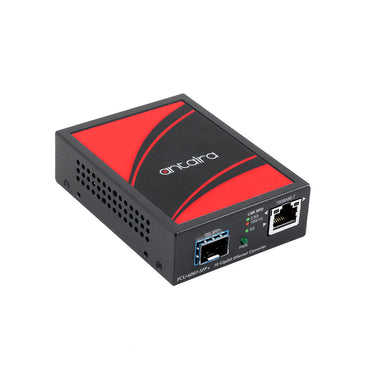

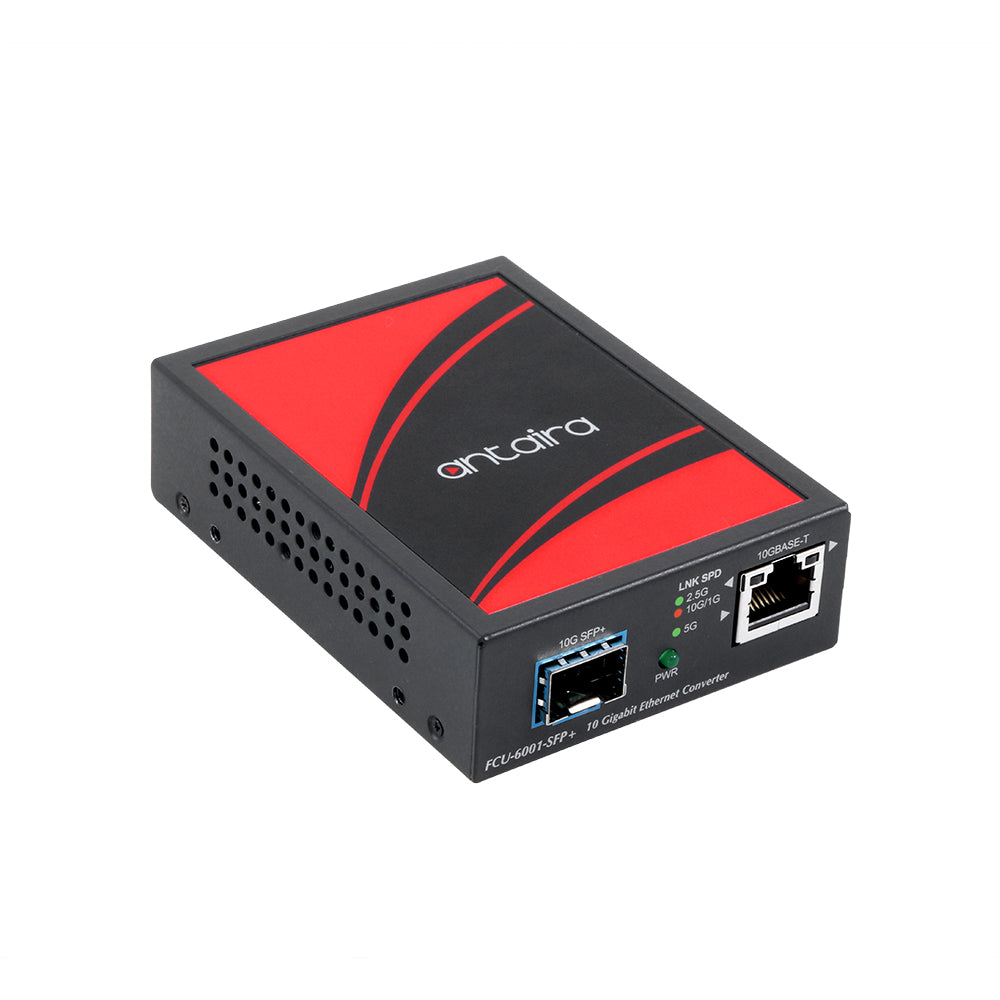

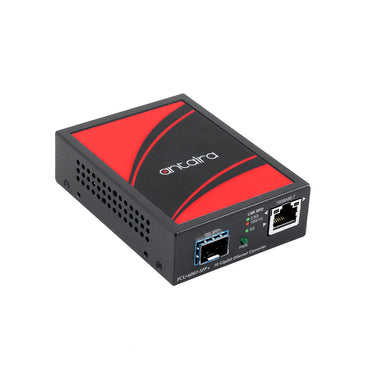

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to FCU-6001-SFP+
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira FCU-6001-SFP+ Documents
Overview
Details for FCU-6001-SFP+
10G/5G/2.5G/1G Copper to 10GBASE-X SFP+ Media Converter
Antaira FCU-6001-SFP+ Media Converter is equipped with one 10G/5G/2.5G/1G BASE-T auto-negotiation port and one 10GBASE-X SFP+ slot. It supports 10Gigabit Ethernet media conversion from copper 10GBASE-T to fiber multi-mode or single-mode, utilizing 10GBASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches and patch panels. The deployment distance can be extended from 300 meters (multi-mode) to up to 60 kilometers (single-mode).They are designed for use in network environments where the ultra-high bandwidth provided by 10Gigabit Ethernet is required, for example, data center cloud computing, enterprise backbones, campus networks, and carrier infrastructureFeatures
- Compact Enterprise Grade Design
- UTP to Fiber Media Converter
- RJ-45 Port Supports Auto MDI/MDI-X
- Jumbo Fram Support: 16Kbytes
- 20Gbps Switching Fabric
- Fully Compatible with the FCU-RACK16 Series
- 2-Year Warranty
Included
- FCU-6001-SFP+
- User Manual
- Wall mount power supply
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Casing Enclosure
- Compact-sized Metal Case
- Dimensions
- 94 x 70 x 26 mm
- EMI
- FCC Part 15 Class A, CE
- Ethernet Port
- 1 * 10G/5G/1GBase-T RJ45 Auto MDI/MDI-X, Auto-negotiation
- Fiber Port
- 1* 10GBase-X R SFP+ interface
- Flow Control
- IEEE 802.3x for full duplex mode, back pressure for half duplex mode
- Green
- RoHS Compliant
- Jumbo Frame
- 16K bytes
- LED Indicators
- Power (PWR): On/Off;10G/5G/2..5G1G Base-T RJ45 Interface;1G/10G Link (Orange);5G/2.5G Link (Green)
- MAC Table Size
- 9K
- Operating Temperature
- STD: 0° to 50° C
- Power Consumption
- 3.75 Watts
- Power Input
- 5V DC, 2A Max
- Protocols
- CSMA/CD
- Standards
- IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3ab 1000BaseT;IEEE 802.3bz 2.5G/5GBase-T;IEEE 802.3an 10GBase_t;IEEE 802.3ae 10Gbps Ethernet;IEEE 802.3x full-duplex flow control
- Storage Temperature
- -10°C ~ 70°C
- Warranty
- 2 Years
- Weight
- Unit: 180G
