FCU-3003-SFP | 10/100/1000Tx To 1000SX/LX Media Converter with SFP Slot | Antaira
10/100/1000Tx To 1000SX/LX Media Converter with SFP Slot

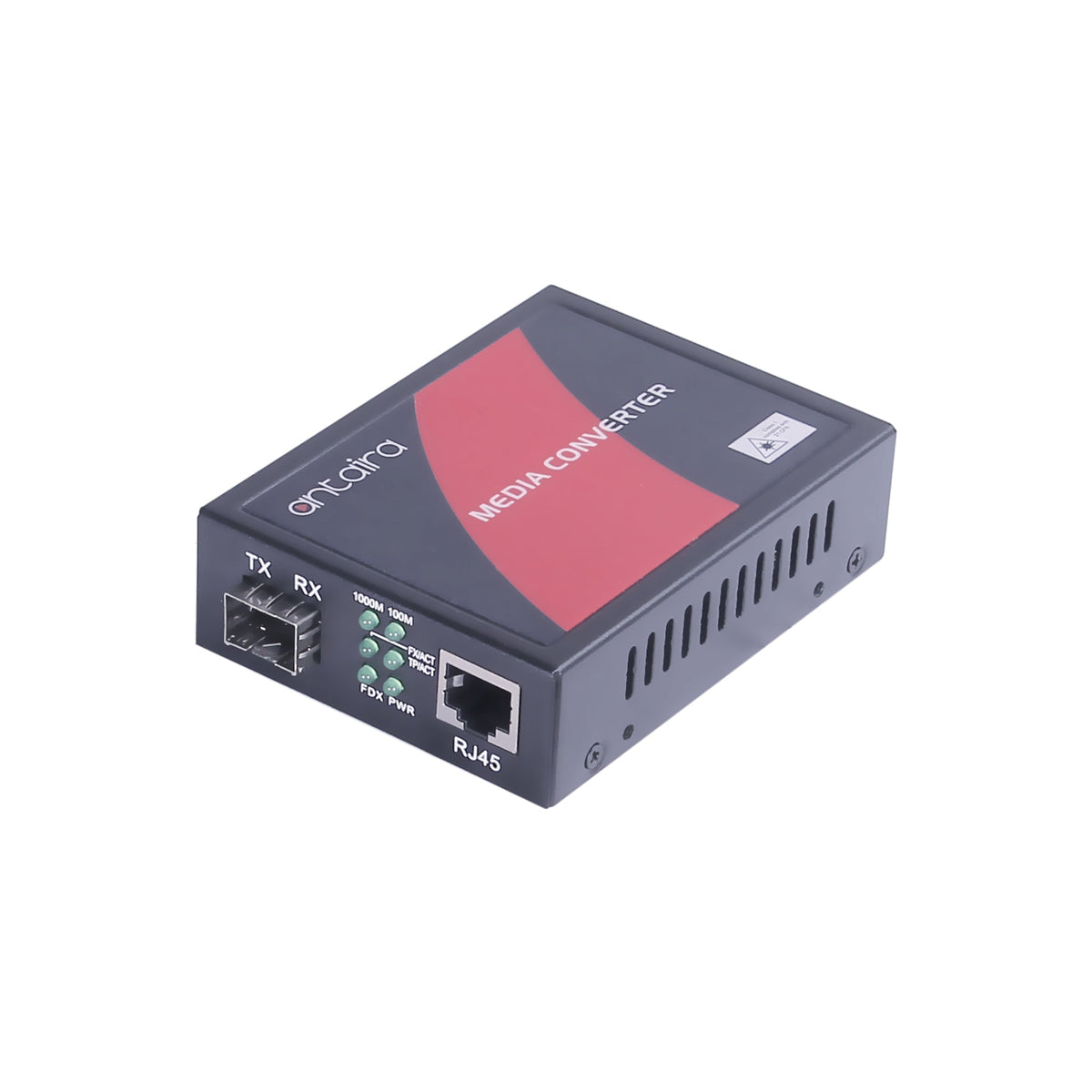

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to FCU-3003-SFP
Documents and manuals
Antaira FCU-3003-SFP Documents
Overview
Details for FCU-3003-SFP
10/100/1000Tx To 1000SX/LX Media Converter with SFP Slot
Antaira Technologies FCU-3003-SFP is a compact gigibit fiber to 10/100/1000 Ethernet media converter. The FCU-3003-SFP is housed in a industrial metal case and conforms to the FCC emission standards. The FCU-3003-SFP features a standard LC fiber connector as well as the copper STP-RJ45 Ethernet connector. The FCU-3003-SFP is fully compliant with the IEEE 802.3z 1000Base-SX/LX and IEEE 802.3ab, 1000Baes-T. The FCU-3003-SFP features LEDs that provide indicators for Power, TP Link/ACT and Fiber Link/ACT. The FCU-3003-SFP is a flexible gigabit media converter, capable of the ever changing environment with hot swap-able SFP ports.Features
- Complies with IEEE 802.3/u/ab 10/100/1000BaseTx
- Complies with IEEE 802.3z 1000BaseFx
- Supports SFP Connector
- Store and Forward Switching Architecture
- Supports 1.6Kbytes Jumbo Frame
- Supports Overload Current Protection
- Supports Power Reverse Polarity Protection
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Not supported in the FCU-Rack system
- 5-Year Warranty
Included
- External Power Adapter
- FCU-3003-SFP
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Certifications
- FCC, CE
- Dimensions
- 71 x 94 x 26 mm (W x H x D)
- Distance
- SFP dependent
- Ethernet Port
- 1*10/100/1000Base-TX;Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Flow Control
- IEEE 802.3x back pressure flow control
- Green
- RoHS Compliant
- Housing
- Metal, IP30 rated
- Input Voltage
- External Power Supply: DC 5V, 1.5A 50, 60 Hz
- Jumbo Frame
- 1.6Kbytes
- LED Indicators
- PWR (power supply);FL/A (optical link/action);FDX (FX full duplex);TL/A (twisted pairs link/action);100 (100M transmission rate of twisted pairs);1000 (1000M transmission rate of twisted pairs)
- MAC Table Size
- 2K
- Mounting
- DIN-Rail mounting, Wall mounting, Chassis mounting
- Operating Temperature
- -10°C to 55°C
- Overload Current Protection
- Present
- Packet Buffer
- 128KB
- Power Connection
- 1*external power adaptor
- Processing Type
- Store and Forward
- Reverse Polarity Protection
- Present
- SFP Port
- 1*SFP Slot
- Standards
- IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3ab 1000BaseT;IEEE 802.3z 1000Base
- Storage Temperature
- -40°C ~ 70°C
- System Power Consumption
- 3W
- Transfer Rate
- 14,880pps for Ethernet port;148,800pps for Fast Ethernet port;1,488,000pps for Gigabit Ethernet port
- Warranty
- 5 Years
- Wavelength
- SFP dependent
- Weight
- Unit: 0.88 lb;Shipping: 1.08 lbs
