FCU-3003-SC | 10/100/1000Tx To 1000LX Media Converter | Multi-Mode 550M | SC Connector | Antaira
10/100/1000Tx To 1000LX Media Converter, Multi-Mode 550M, SC Connector

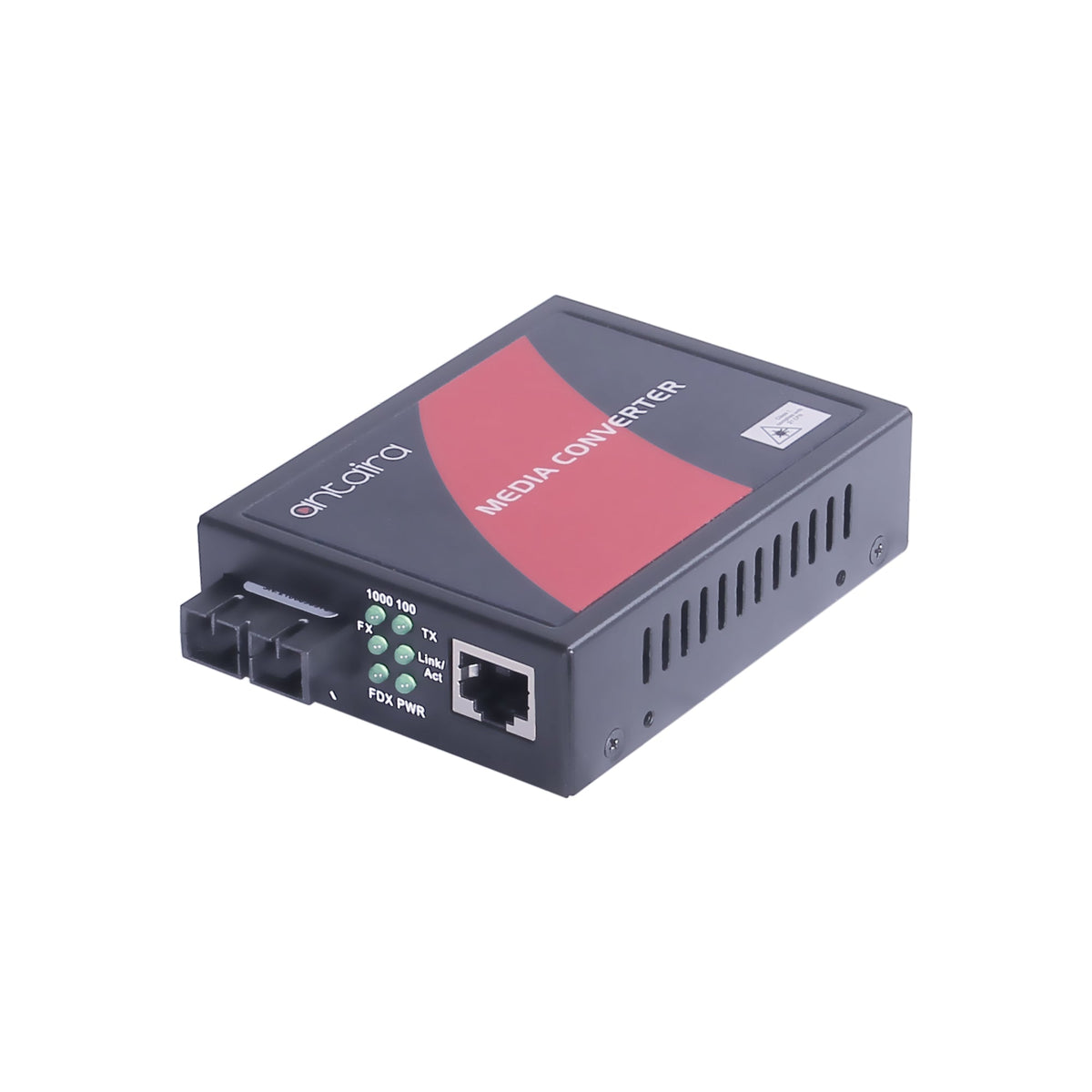

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to FCU-3003-SC
Documents and manuals
Antaira FCU-3003-SC Documents
Overview
Details for FCU-3003-SC
10/100/1000Tx To 1000LX Media Converter | Multi-Mode 550M | SC Connector
Antaira Technologies’ FCU-3003-XX Series is a compact, single or multi-mode Gigabit media converter. The FCU-3003-XX Series will take 10/100/1000BaseT copper Ethernet and convert it to 1000BaseX fiber. The FCU-3003-XX Series features a standard SC fiber connector as well as the STP-RJ45 Ethernet connector. The copper media converter is fully compliant with IEEE 802.3z and 802.3u Fast Ethernet standards. The industrial media converter features LED diagnostics for power, activity, link, and Full/Half Duplex operations. The FCU-3003-XX Series gigabit media converter uses multimode 850NM fiber with an SC connector and is capable of communication of up to 550 meters.Features
- Complies with IEEE 802.3/u/ab 10/100/1000BaseTx
- Complies with IEEE 802.3z 1000BaseFx
- Supports SC Connector
- Store and Forward Switching Architecture
- Supports 1.6Kbytes Jumbo Frame
- Supports Overload Current Protection
- Supports Power Reverse Polarity Protection
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Not supported in the FCU-Rack system
- 5-Year Warranty
Included
- External Power Adapter
- FCU-3003-SC
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Certifications
- FCC, CE
- Dimensions
- 71 x 94 x 26 mm (W x H x D)
- Distance
- 550M
- Ethernet Port
- 1*10/100/1000Base-TX;Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Fiber Port
- 1*1000Base-Fx
- Flow Control
- IEEE 802.3x back pressure flow control
- Green
- RoHS Compliant
- Housing
- Metal, IP30 rated
- Input Voltage
- External Power Supply: DC 5V, 1.5A 50, 60 Hz
- Jumbo Frame
- 1.6Kbytes
- LED Indicators
- PWR (power supply);FL/A (optical link/action);FDX (FX full duplex);TL/A (twisted pairs link/action);100 (100M transmission rate of twisted pairs);1000 (1000M transmission rate of twisted pairs)
- MAC Table Size
- 2K
- Mounting
- DIN-Rail mounting, Wall mounting
- Operating Temperature
- -10°C to 55°C
- Overload Current Protection
- Present
- Packet Buffer
- 128KB
- Processing Type
- Store and Foward
- Reverse Polarity Protection
- Present
- Standards
- IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3ab 1000BaseT;IEEE 802.3z 1000Base
- Storage Temperature
- -40°C ~ 70°C
- System Power Consumption
- 3W
- Transfer Rate
- 14,880pps for Ethernet port;148,800pps for Fast Ethernet port;1,488,000pps for Gigabit Ethernet port
- Warranty
- 5 Years
- Wavelength
- 850nm
- Weight
- Unit: 0.88 lb;Shipping: 1.08 lbs
