FCU-2802SC-S10 | 10/100/1000TX To 1000LX Media Converter | Single-Mode 10KM | SC Connector | Antaira
10/100/1000TX To 1000LX Media Converter, Single-Mode 10KM, SC Connector

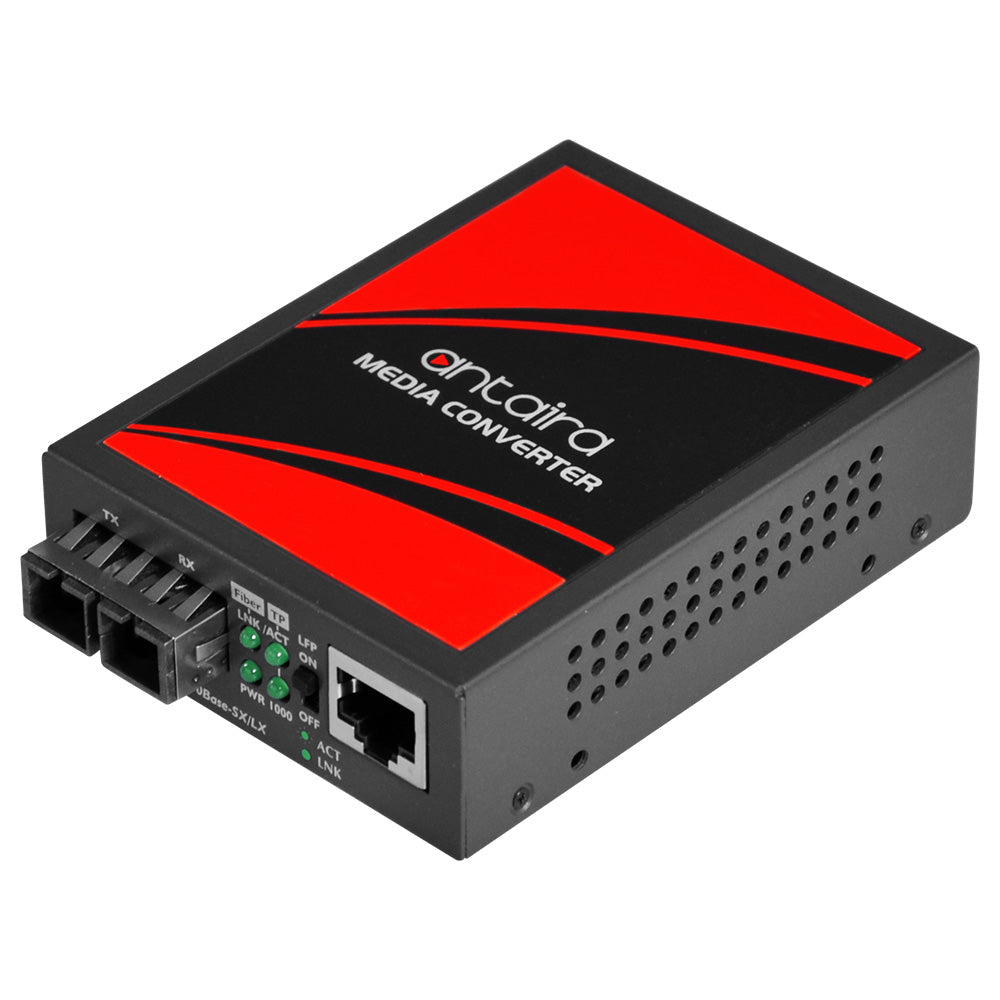

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to FCU-2802SC-S10
Documents and manuals
Antaira FCU-2802SC-S10 Documents
Overview
Details for FCU-2802SC-S10
10/100/1000TX To 1000LX Media Converter | Single-Mode 10KM | SC Connector
Antaira Technologies FCU-2802SC-S10 is a compact gigibit fiber to Ethernet Media converter housed in a metal case and conforms to the FCC emissions Standards. the FCU-2802SC-S10 features a standard SC fiber connector as well as the STP-RJ45 Ethernet connector. The copper media converter is fully compliant with IEEE 802.3Z 1000Base-SX/LX and IEEE 802.3ab, 1000Baes-T. The LEDs provide indicators for Power, TP Link/ACT and Fiber Link/ACT. The FCU-2802SC-S10 is a gigabit media converter that will convert 10/100/1000 copper to gigabit Single-mode fiber up to 10KM.Features
- Complies with IEEE 802.3, 802.3u, 802.3ab, 802.3z
- TP port supports 10/100/1000BaseT auto-negotiation
- IEEE 802.3x Full-Duplex Flow Control and Back-Pressure in Half-Duplex
- Supports Auto MDI/MDI-X function
- Store-and-Forward mechanism
- Non-blocking full wire-speed forwarding rate
- Compact size for easy installation
- 2-Year Warranty
Included
- External Power Adapter
- FCU-2802SC-S10
- Quick Start Guide
Specifications
- Approvals
- FCC Class A, CE Class A
- Connector
- SC (Single-Mode)
- Dimensions
- 97 x 70 x 26 mm
- Dip Switch
- LFP Function (Disable/Enable) Setting
- Ethernet
- 1 x RJ45 Interface
- Fiber
- 1 x SC Duplex Interface
- Humidity
- 5% ~ 90% non-condensing
- IEEE
- IEEE 802.3 10BaseT;IEEE 802.3u 100BaseTX;IEEE 802.3ab 1000BaseT;IEEE 802.z 1000BaseX
- LED
- Power, TP Link/ACT, Fiber Link/ACT
- Operating Temperature
- 0° ~ 50° C (32° ~ 122° F)
- Power
- 5V DC, 2A
- Power Consumption
- 5 Watts Max. / 17BTU/hr Max
- Storage Temperature
- -10° ~ 70° C
- Typical Distance
- 10 Km
- Warranty
- 2 Years
- Wave length
- 1310 nm
- Weight
- 200 g
