EMC-0201-SC-WB-S2 | 10/100TX To 10/100FX Single Fiber (WDM) | Single-Mode 20KM | TX1550nm - RX1310nm | Antaira

10/100TX To 10/100FX Single Fiber (WDM) | Single-Mode 20KM | TX1550nm - RX1310nm

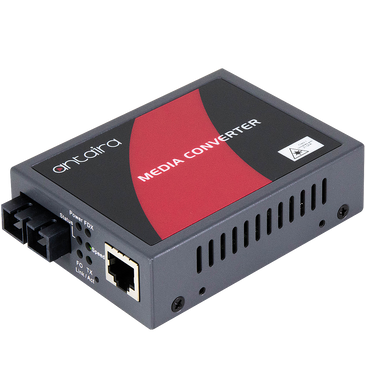

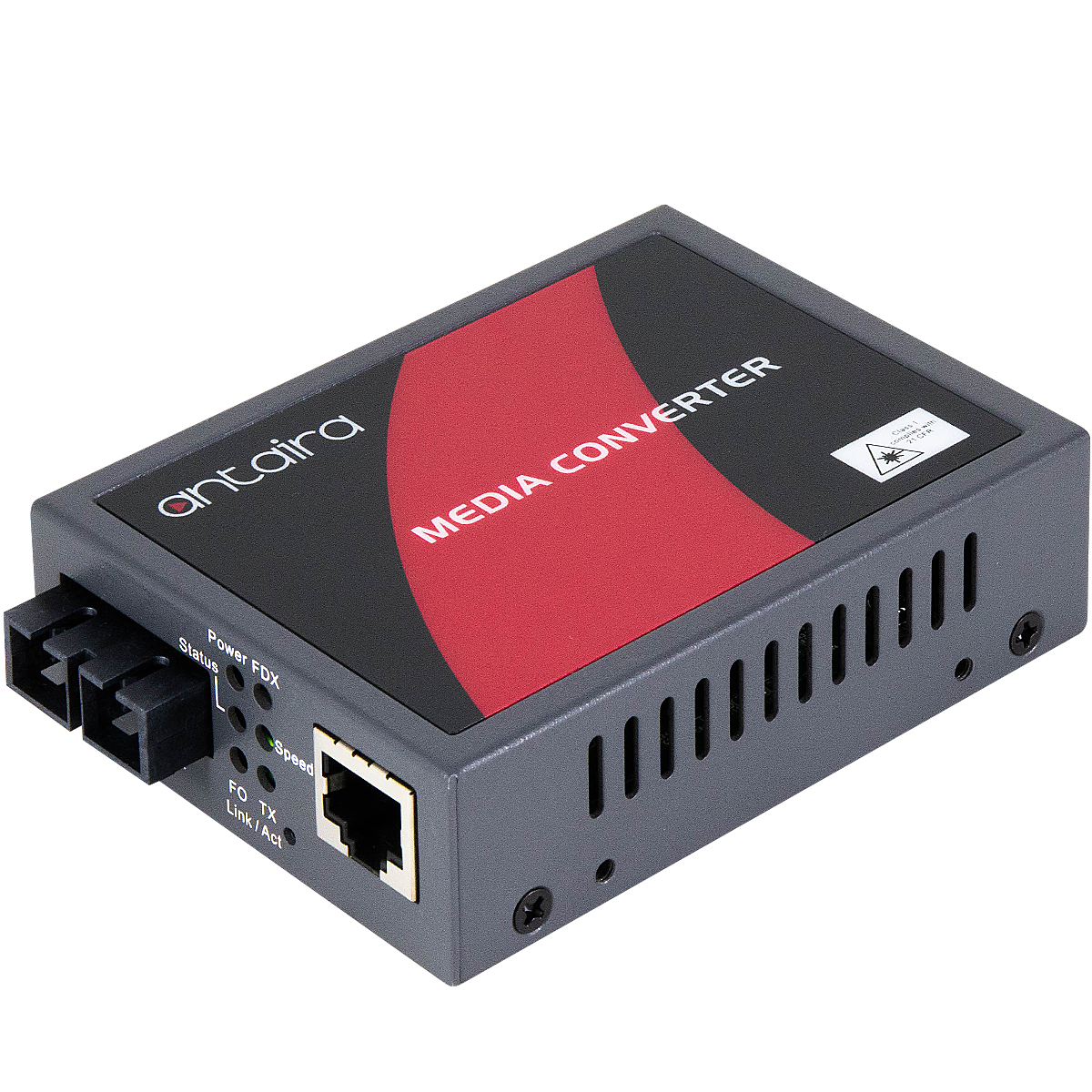

Antaira Technologies EMC-0201-SC-WB-S2 is a compact fiber to Ethernet media converter housed in a metal case and conforms to the FCC emissions standards. The EMC-0201-SC-WB-S2 industrial media converter features a standard single fiber (WDM) connector as well as the RJ45 Ethernet connector. The copper media converter is fully compliant with IEEE 802.3 and 802.3u Fast Ethernet. The industrial media converter features LED diagnostics for power, activity, link and Full/Half Duplex operations. The EMC-0201-SC-WB-S2 is a 10/100 single-mode fiber industrial media converter capable of communication up to 20KM.

Features

• Complies with IEEE 802.3 100BaseT & IEEE 802.3u 100BaseTX/FX Standards
• Supports Store-and-Forward Switching Mechanism
• 10/100Mbps Auto Negotiation
• Supports 9K Bytes Jumbo Frame Size
• Supports Link Alarm and Rear Panel DIP Switch
• Supports 2K MAC Address
• Supports 128K Bytes Packet Buffer
• Configuration DIP Switch Supports Auto, Speed, Duplex, Auto MDI/MDIX, and Link-Fault-Pass-Through
• Operating Temperature Range: 0°C to 50°C
• Rackmount & Wall-Mountable
• 5-Year Warranty

Included

• EMC-0201-SC-WB-S2
• External Power Adapter
• Quick Installation Guide
