10/100TX To 100FX Media Converter | Multi-Mode 2KM | SC Connector;

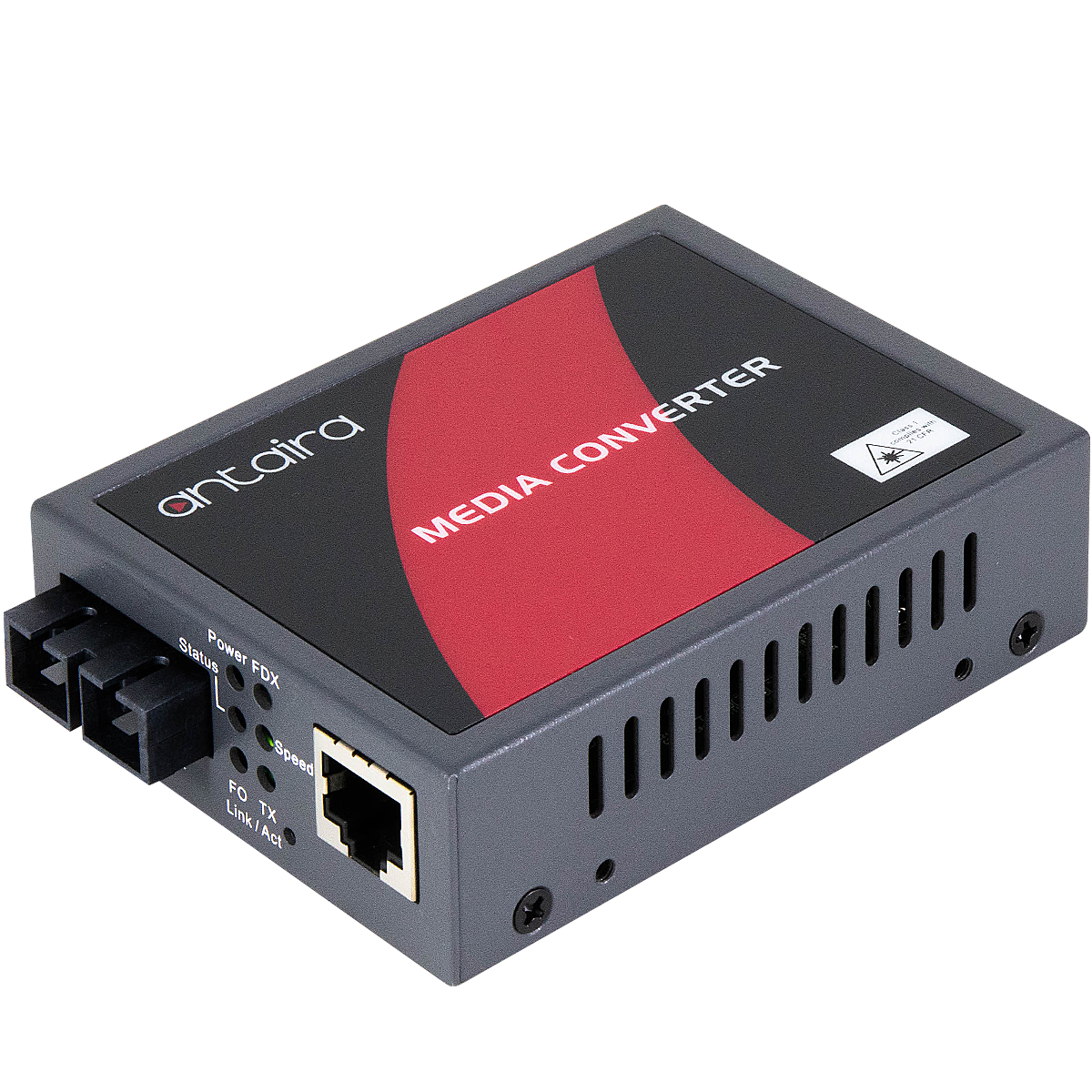

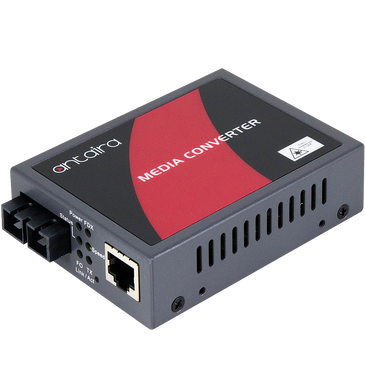

Antaira Technologies EMC-0201-SC-M is a compact fiber to Ethernet media converter housed in a metal case and conforms to the FCC emissions standards. The EMC-0201-SC-M media converter features a standard SC fiber connector as well as the RJ45 Ethernet connector. The copper media converter is fully compliant with IEEE 802.3 and 802.3u Fast Ethernet. The industrial media converter features LED diagnostics for power, activity, link and Full/Half Duplex operations. The EMC-0201-SC-M industrial media converter is a 10/100 multi-mode fiber media converter capable of communication up to 2KM.

Features

• Complies with IEEE 802.3 100BaseT & IEEE 802.3u 100BaseTX/FX Standards
• Supports Store-and-Forward Switching Mechanism
• 10/100Mbps Auto Negotiation
• Supports 9K Bytes Jumbo Frame Size
• Supports Link Alarm and Rear Panel DIP Switch
• Supports 2K MAC Address
• Supports 128K Bytes Packet Buffer
• Configuration DIP Switch Supports Auto, Speed, Duplex, Auto MDI/MDIX, and Link-Fault-Pass-Through
• Operating Temperature Range: 0°C to 50°C
• Rackmount & Wall-Mountable
• 5-Year Warranty

Included

• EMC-0201-SC-M
• External Power Adapter
• Quick Installation Guide
