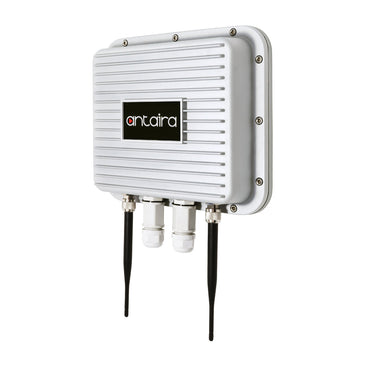

ARX-7235-AC-PD-T | Industrial Outdoor IP67 Metal Housing IEEE 802.11a/b/g/n/ac Wireless Access Point/Client/Bridge/Repeater/Router with PoE PD; EOT: -40°C to 70°C | Antaira (OBSOLETE)

Industrial Outdoor IP67 Metal Housing IEEE 802.11a/b/g/n/ac Wireless Access Point/Client/Bridge/Repeater/Router with PoE PD; EOT: -40°C to 70°C

Brand: AntairaSKU: ARX-7235-AC-PD-T

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ARX-7235-AC-PD-T

Jump to: Overview & Specifications Reviews

Overview Details for ARX-7235-AC-PD-T

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

Industrial Outdoor IP67 Metal Housing IEEE 802.11a/b/g/n/ac Wireless Access Point/Client/Bridge/Repeater/Router with PoE PD; EOT: -40°C to 70°C

Antaira Technologies’ ARX-7235-AC-PD-T is designed for industrial and enterprise outdoor wireless access applications. Embedded with the Qualcomm IPQ4029 SoC chipset, it boasts network robustness, stability, and wider network coverage. Based on IEEE 802.11a/b/g/n/ac, the access point supports high-speed data transmission of up to 867Mbps.The ARX-7235-AC-PD-T is capable of operating in different modes, which makes it suitable for a wide variety of wireless applications including long-distance deployments. With the extended operating temperature range of -40°C to 70°C and the metal housing IP67 rated, this wireless access point is built for outdoor applications to withstand extreme weather conditions and temperatures.This industrial wireless device is compatible with Antaira's ConnectVPN system and also includes the 1:1 NAT feature. Antaira's NAT routers allow for easy connection between public and private networks for machines or systems with the same IP address range. NAT routers can be used to conceal the identity of an IP address block being used on a network.

Features

High Speed WLAN Supports Up to 867Mbps
Dual Band (2.4GHz/5GHz concurrent)
Industrial MIMO Wireless Solution (Dual 2Tx/2Rx)
Supports IEEE 802.11a/b/g/n/ac
PD (Powered Device) IEEE 802.3af/at Compliant
Supports Ethernet Gigabit WAN/LAN Port
Qualcomm IPQ4029 SoC
Tx Power 25dBm for 2.4GHz/5GHz
WPA, WPA2, WPA3, WEP, TKIP, AES
IP67 Metal Housing
Pole and Wall Mountable
Operating Temperature Range: -40°C to 70°C
5-Year Warranty

Included

ARX-7235-AC-PD-T
Pole mounting bracket set with screws
Quick Installation Guide
Set of antennas
Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity: 5% to 95%, (non-condensing)
Antenna: Two External N-Type Antennas:;5dBi for 2.4GHz, 5dBi for 5GHz;(MIMO support, Dual 2Tx/2Rx)
Certifications: FCC, CE
Dimensions: 269 x 81 x 239 mm (W x H x D)
EMI: FCC Part 15 Subpart B;CE EN55032
EMS: CE EN55024;IEC61000-4-2,3,4,5,6,8,11
Encryption Security: WPA, WPA2, WPA3, WEP, TKIP, AES, RADIUS, 802.1x/EAP
Ethernet Port: WAN: 10/100/1000Mbps;LAN (PoE PD): 10/100/1000Mbps
Green: RoHS Compliant
Housing: Metal, IP67 rated
IEEE 802.11a/b/g/n/ac (2.4GHz): 2.402G~2.482GHz
IEEE 802.11a/b/g/n/ac (5GHz): 4.920G~5.920GHz
Input Voltage: IEEE 802.3at PoE (48~56VDC)
Mounting: Pole mounting, Wall mounting
Operating Temperature: -40°C to 70°C
Protocols: IP, TCP, UDP, ARP, BOOTP, ICMP, HTTP, HTTPS, DNS Proxy, NTP, SNTP, Dynamic DNS, SMTP, SNMP
Standards: IEEE 802.11a/b/g/n/ac Wireless LAN;IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3ab 1000Base-T Gigabit Ethernet;IEEE 802.3af/at Power over Ethernet
Storage Temperature: -40°C to 80°C
System Power Consumption: 4.2 Watts
Warranty: 5 Years
Weight: Unit: 5.82 lbs.;Shipping: 7.729 lbs.
WLAN: Dual Band 2.4GHz/5GHz concurrent
WLAN Operation Mode: AP/Client/Bridge/Repeater/Router
