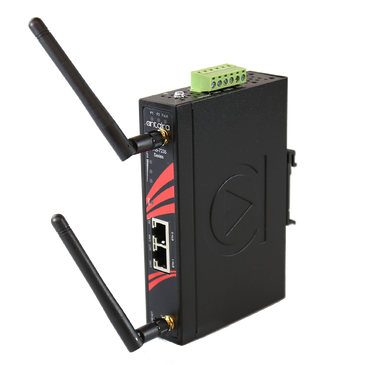

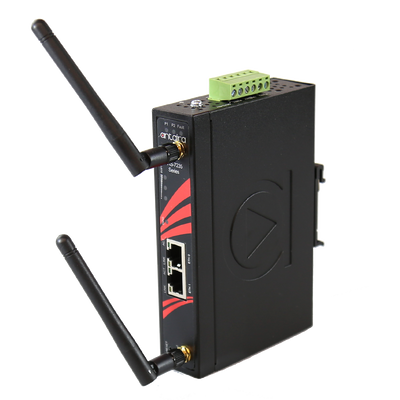

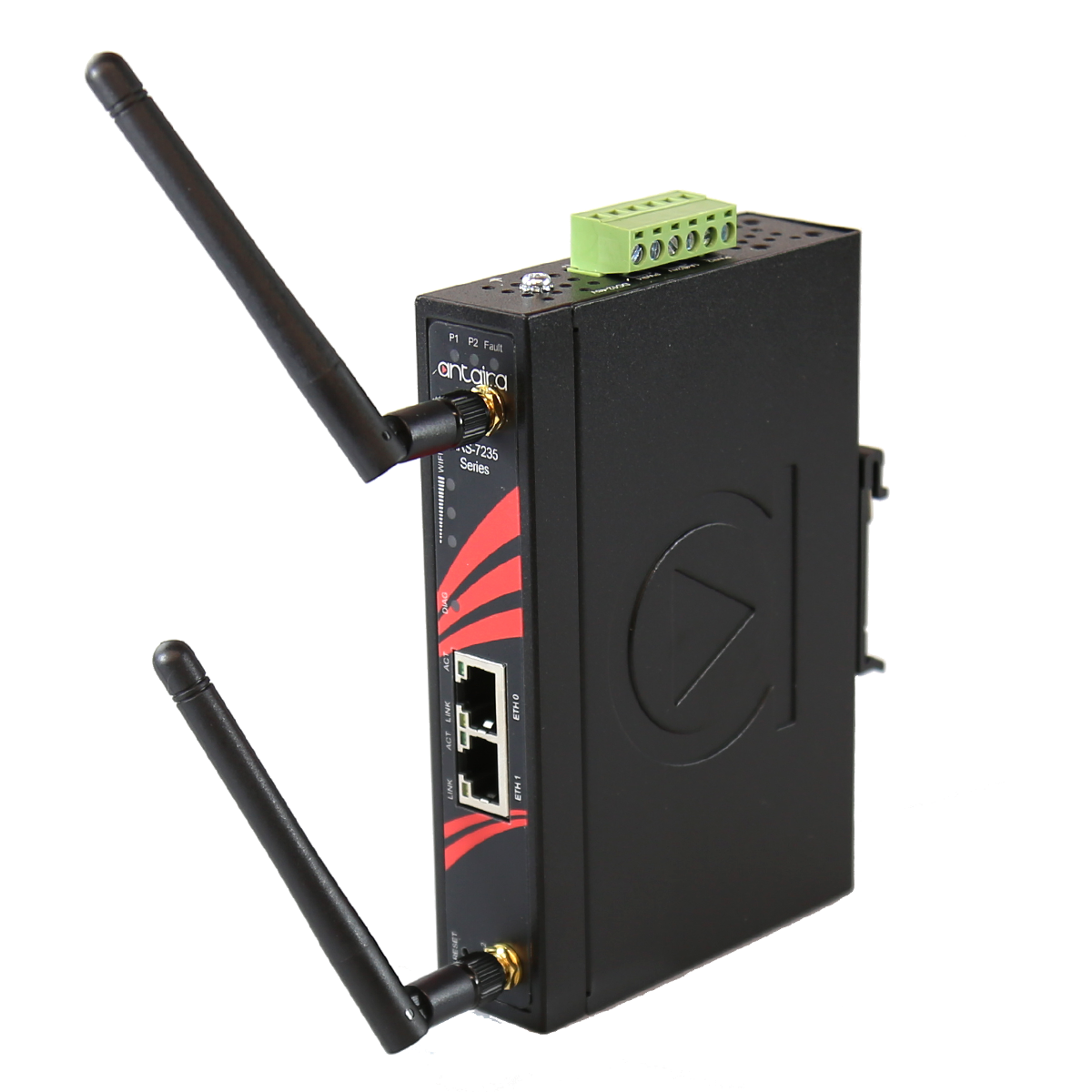

ARS-7235-PD-AC-T | Industrial Dual Radio IEEE 802.11a/b/g/n/ac Wireless Access Point/Client/Bridge/Repeater/Router with PoE/PD port; EOT: -35°C to 70°C | Antaira

Industrial Dual Radio IEEE 802.11a/b/g/n/ac Wireless Access Point/Client/Bridge/Repeater/Router with PoE/PD port; EOT: -35°C to 70°C

Antaira Technologies ARS-7235-PD-AC-T is a industrial dual radio IEEE 802.11a/b/g/n/ac wireless LAN access point with added router capabilities. Embedded with the Qualcomm IPQ4029 SoC chipset, it boasts network robustness, stability, and a wide network coverage with a very low voltage input of 9V. Based on IEEE 802.11 a/b/g/n/ac, the access point supports high-speed data transmission of up to 867Mbps.The ARS-7235-PD-AC-T is capable of operating in different modes, which makes it suitable for a wide variety of wireless applications including long-distance deployments. The unit also allows the user to position the wireless antennas in a better signal-broadcasting location for improved wireless coverage and signal strength or simply in a more convenient location.This industrial wireless device is compatible with Antaira's ConnectVPN system and also includes the 1:1 NAT feature. Antaira's NAT routers allow for easy connection between public and private networks for machines or systems with the same IP address range. NAT routers can be used to conceal the identity of an IP address block being used on a network.

Features

• Industrial 2x2 MIMO
• Qualcomm IPQ4029 SoC
• Supports IEEE 802.11a/b/g/n/ac
• Supports 2*10/100/1000Base-TX WAN/LAN Ports
• PoE PD on one port
• Tx Power 25dB for 2.4GHz
• Tx Power 24dB for 5GHz
• WPA, WPA2, WPA3, WEP, TKIP, AES
• Power Input: 9~48VDC in 6-Pin Terminal Block
• Reverse Polarity Protection
• IP30 Protection
• DIN-Rail and Wall Mountable
• Operating Temperature Range – EOT: -35°C to 70°C
• 5-Year Warranty

Included

• ARS-7235-PD-AC-T
• Quick Installation Guide
• Set of antennas
• Wall mounting bracket set with screws
