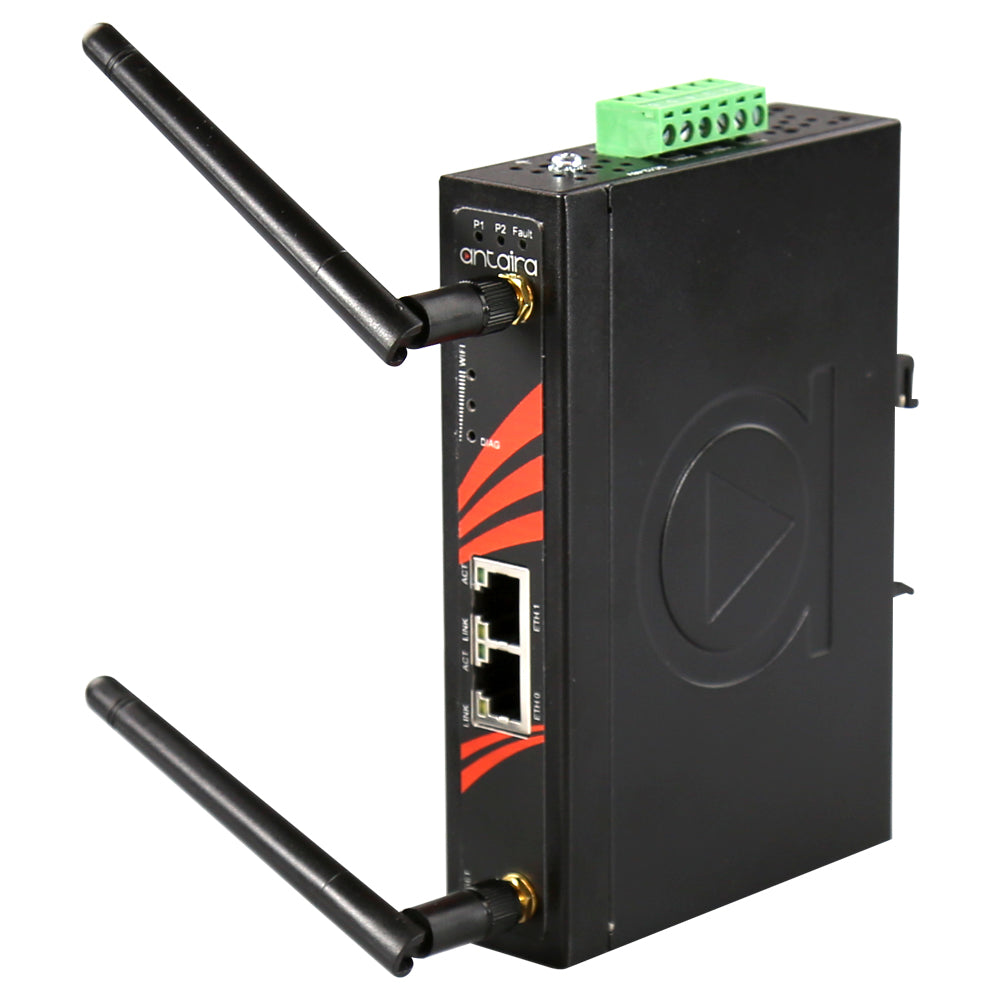

ARS-7131 | Industrial 802.11a/b/g/n WiFi Access Point/Client/Bridge/Repeater with Router capabilities. | Antaira

Industrial 802.11a/b/g/n WiFi Access Point/Client/Bridge/Repeater with Router capabilities.

Antaira Technologies’ ARS-7131 series is a single radio industrial 802.11a/b/g/n wireless LAN access point with added router capabilities. With the Atheros XSPAN family chipset, it boasts network robustness, stability, and a wide network coverage with a very low voltage input of 9V. Based on IEEE 802.11 a/b/g/n/ac, the access point supports high-speed data transmission of up to 867Mbps.The ARS-7131 industrial router series is capable of operating in different modes, which makes it suitable for a wide variety of wireless applications including long-distance deployments. The industrial WiFi router also allows the user to position the wireless antennas in a better signal-broadcasting location for improved wireless coverage and signal strength or simply in a more convenient location.

Features

• Industrial 2x2 MIMO
• Supports IEEE 802.11 a/b/g/n
• Supports 2*10/100Base-TX WAN/LAN port
• Tx Power  21 dB for 2.4GHz
• Tx Power  18 bB for 5GHz
• WPA, WPA2, WPA3, WEP, TKIP, AES
• Power Input: 9~48VDC in 6-pin terminal block
• Reverse Polarity Protection
• IP30 Protection
• DIN-Rail or Wall Mountable
• Operating Temperature Range – STD: 0° to 60°C
• 5-Year Warranty

Included

• 2 - 5dB antenna
• ARS-7131
• Quick Installation Guide
• Wall mounting bracket set with screws
