ANT-MGNBASE-1.5M | Antenna Base Magnetic: Stand for Dipole Antennas w/ cable to RP-SMA-male; Cable Length 5 Feet (1.5M) | Antaira

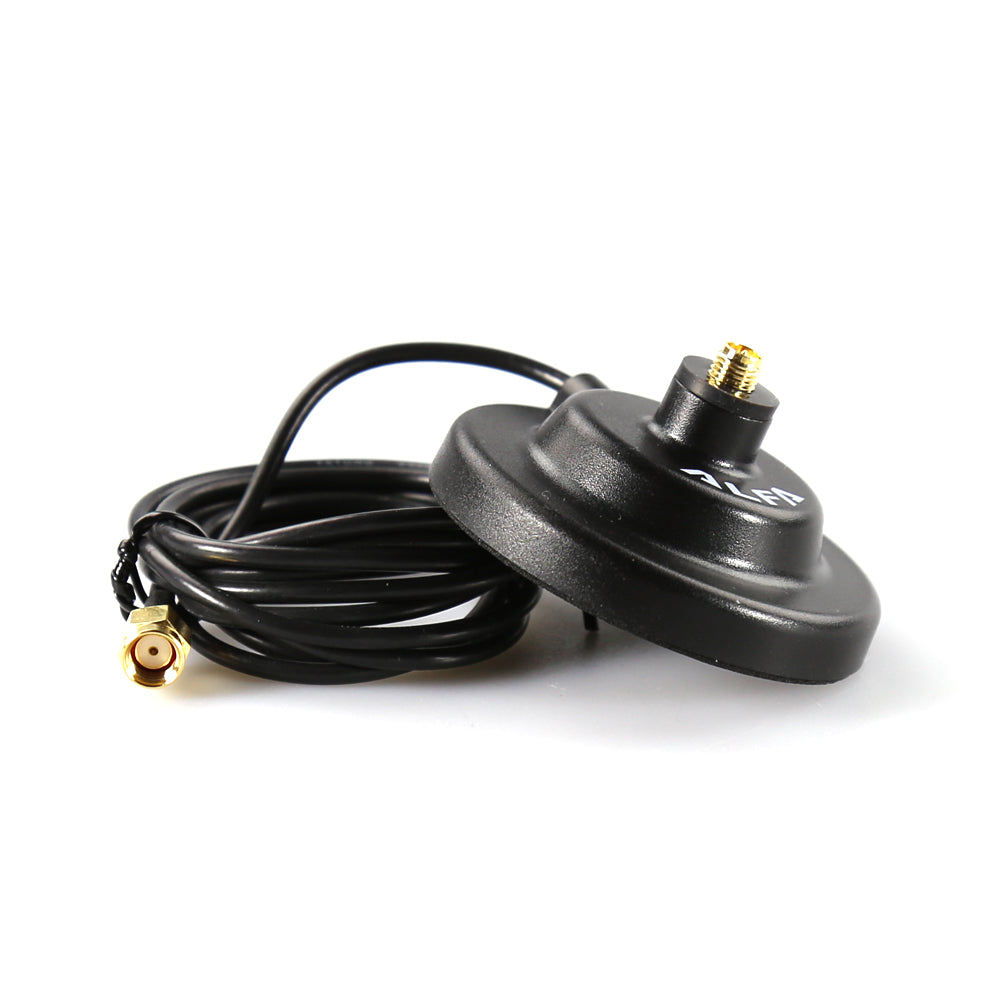

Antenna Base Magnetic: Stand for Dipole Antennas w/ cable to RP-SMA-male; Cable Length 5 Feet (1.5M)
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ANT-MGNBASE-1.5M
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira ANT-MGNBASE-1.5M Documents
Overview
Details for ANT-MGNBASE-1.5M
Antenna Base Magnetic: Stand for Dipole Antennas w/ cable to RP-SMA-male; Cable Length 5 Feet (1.5M)
The ANT-MGNBASE-1.5M is ideal for applications where an antenna needs to be located several feet away from the radio. The ANT-MGNBASE-1.5M has a five foot or 1.5-meter cable connected to a magnetic base. The base is heavy enough to hold the antenna straight up even if the surface is not metallic. Compliant for all types of wireless antennas, including WiFi & WiMax networks: 802.11N, AC, G, A, B. 900MHz, 2.4GHz & 5GHz applications, ISM, GSM, LTE, as well as any other frequency between 0 and 18GHz.RP-SMA female connector on the BASE fits antennas that have a male RP-SMA (Reverse Polarity [RP] SMA) jack/connector.RP-SMA-male Connector on the cable fits items that have a female RP-SMA (Reverse Polarity [RP] SMA) jack/connector. RP-SMA = Reverse Polarity SMAFeatures
- Center Contact: Beryllium Copper, Gold Plated
- Indoor and Outdoor rated
- Connector Body: Brass, Gold Plated
- Crimp Ferrule: Copper, Nickel Plated
- Insulators: PTFE
- RP-SMA is Reverse Polarity SMA
- Cable is double-shielded for low signal-loss
- Impedance is 50 Ohms
- RoHS Compliant
- Operating Temperature Range: -40° to 65°C
- 2-Year Warranty
Specifications
- Antenna Connector
- RP-SMA is Reverse Polarity SMA
- Connector
- Center Contact: Beryllium Copper, Gold Plated
- Operating Temperature
- Operating Temperature Range: -40° to 65°C
- Safety Standards
- ROHS compliant
